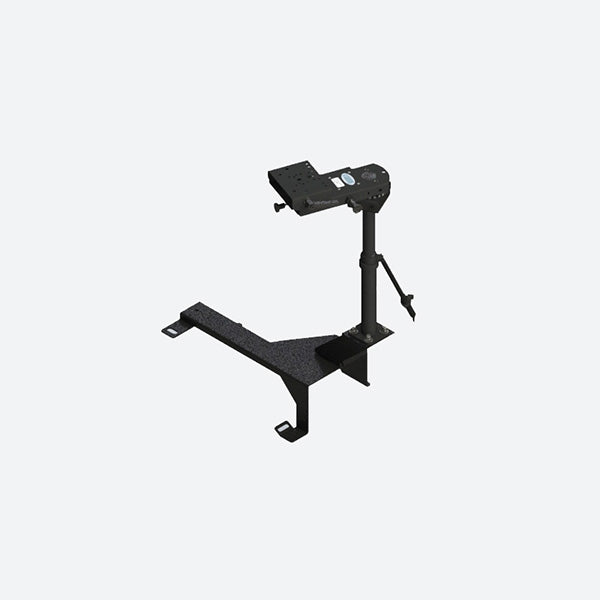

Gamber Johnson 2012+ M2 Freightliner Pedestal System w/ Mongoose 9 Locking Slide Arm w/ Short Clevis 7170-0973-01

Gamber Johnson Full Mount 7170-0973-01

Gamber Johnson full pedestal mount for 2012+ M2 Freightliner with Short Clevis motion attachment.

7170-0973-01 Features

• Vehicle Base (7160-0544) Vehicle Base is a no-drill solution and attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
• Lower Tube (DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
• Upper Pole (7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• Support Brace (7160-0231) Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.
• Mongoose®- 9" Locking Slide Arm with Short Clevis (7160-0928) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.

Vehicle Compatibility:

• Freightliner M2 Business Class (2010+)
• Class 6/7 Freightliner M2 Business Class (2010+)
• Freightliner 114SD (2010+)
• Freightliner 108SD (2010+)

7170-0973-01 Specifications

Weight

21.65 lbs / 9.82 kg

Height

31.61 in / 80.29 cm

Width

20.27 in / 51.49 cm

Depth

NA
