Gamber Johnson GETAC K120 DOCK w/ 75MM Hole To Stud Adapter (NO RF) 7170-1069-00

Gamber Johnson Dock 7170-1069-00

Gamber Johnson dock designed for the Getac K120 with 75MM hole to stud adapter.  This dock does not come with any RF pass through or power supply.

Gamber-Johnson Getac K120 Tablet docking station (NO RF), the perfect companion to the Getac K120 computer and the command center for your forklift. The adapter plate (7160-1942) allows easy one-person field installation when adding peripherals to your material handling solution.

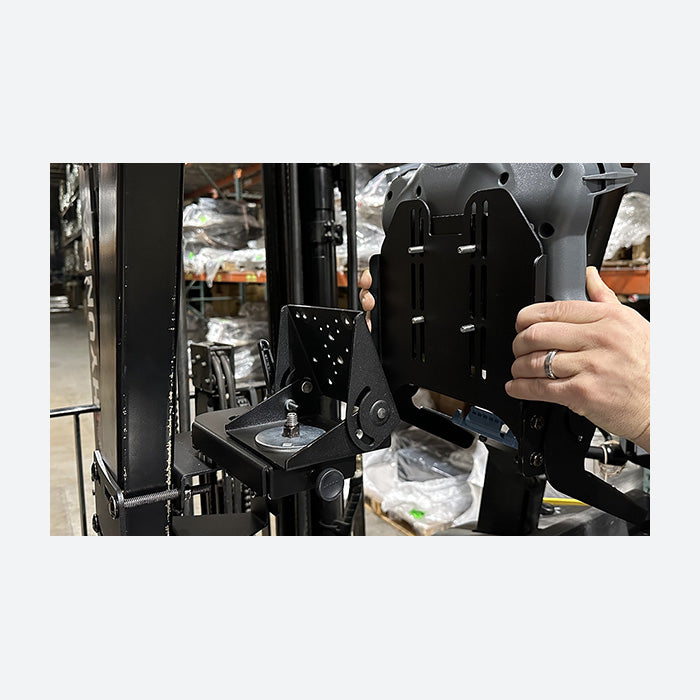

Designed for forklift mounting applications

7170-1069-00 Features

• Docking station design accommodates tablet’s rotating hand strap (sold separately)
• Access to all tablet control buttons and ports while tablet is docked

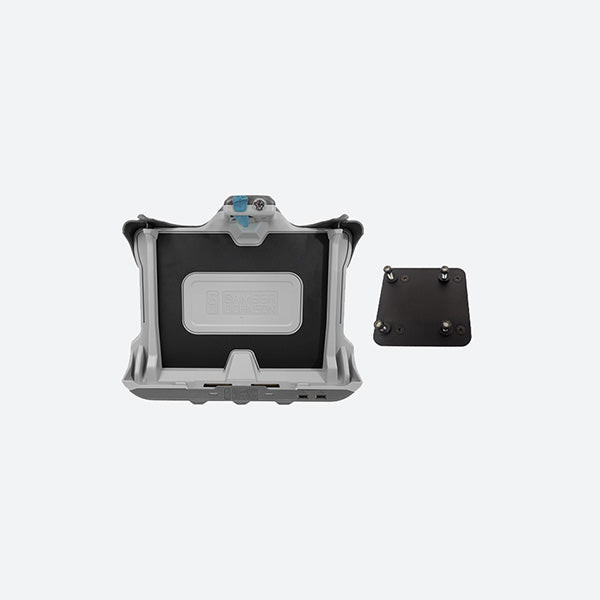

• 75MM HOLES TO STUDS ADAPTER PLATE  (7160-1942) included for easy one person installation when adding peripherals to your material handling solution
• Optional keyed lock for theft deterrance
• Upward-facing I/O ports; integrated cable strain relief and cable management system
  VESA 75mm mounting pattern

7170-1069-00 Specifications

Weight

5.4 lbs / 2.45 kg

Height

6 in / 15.24 cm

Width

14 in / 35.56 cm

Depth

14 in / 35.56 cm

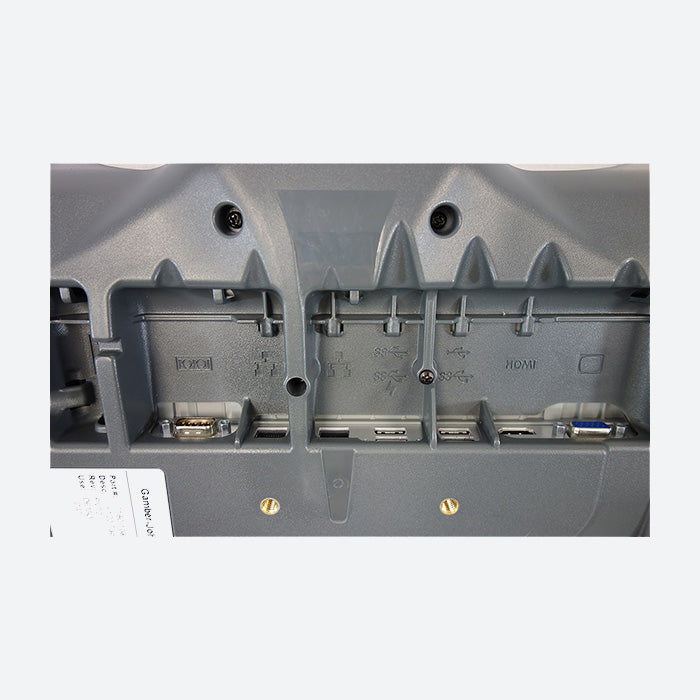

Port Replicators:

Ethernet (2) - RJ45
USB 2.0 (2) - 4 pin forward-facing, fast-charging (1500 mA)
USB 2.0 (1) - 4 pin rear-facing (500 mA)
USB 3.0 (1) - 9 pin fast-charging (1500 mA)
USB 3.0 (2) - 9 pin (900 mA)
VGA (1) - D-sub 9 pin
HDMI (1) - 19 pin
RS232 Serial (1)
Power Input - 19 Vdc

Antenna Pass-through:

No RF
