Gamber Johnson GETAC UX10 NON-RF DOCK w/ 75MM Hole TO STUD ADAPTER 7170-1070-00
Gamber Johnson Dock 7170-1070-00

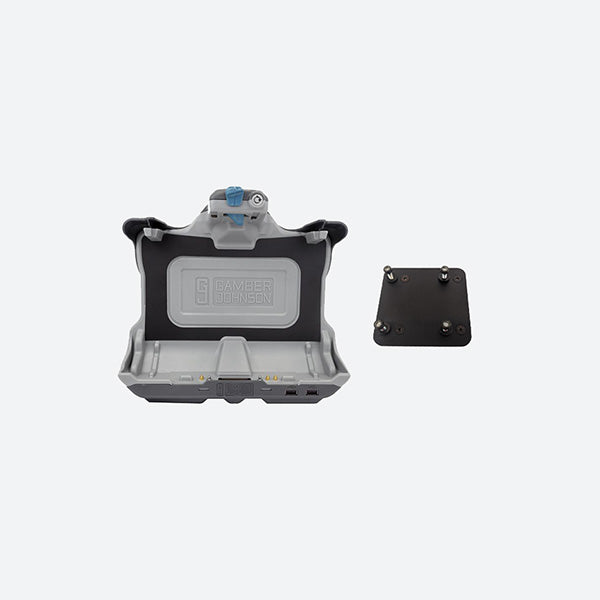

Gamber Johnson dock designed for the Getac UX10 with 75MM hole to stud adapter. This dock does not come with any RF pass through or power supply.
Gamber-Johnson Getac UX10 docking station accommodates the tablet’s rotating hand strap with the extended battery, or the hard handle, RFID reader, and smartcard reader. This docking station features full port replication to connect peripherals, a conveniently located latch button for one-handed docking/release, a keyed lock for extra security, and a VESA 75mm mounting pattern. The adapter plate (7160-1942) allows easy one-person field installation when adding peripherals to your material handling solution.

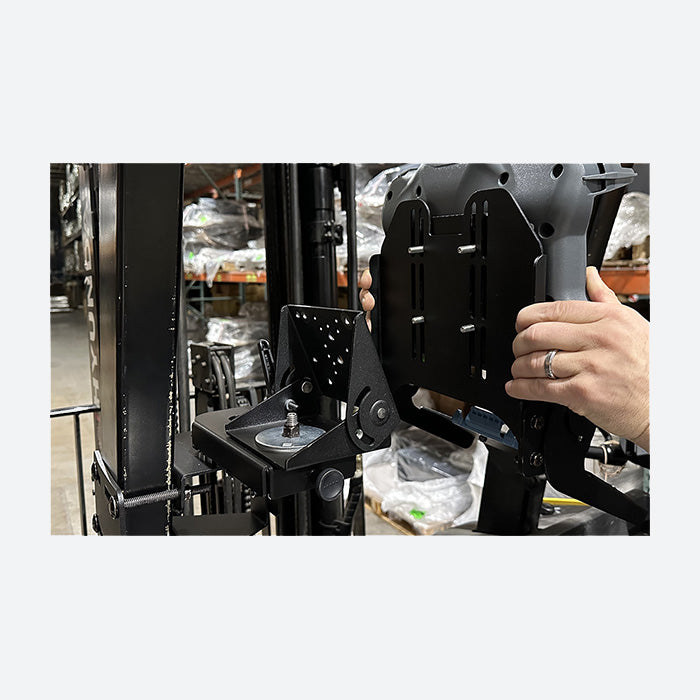

Designed for forklift mounting applications
7170-1070-00 Features
- Docking station design accommodates the rotating hand strap with the extended battery, or the hard handle, RFID reader, and smartcard reader (sold separately)
- Easy to use one-handed operation

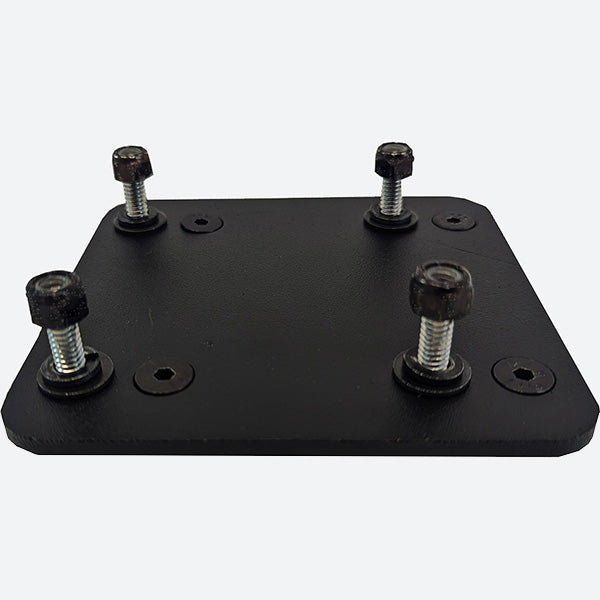

- 75MM HOLES TO STUDS ADAPTER PLATE (7160-1942) included for easy one person installation when adding peripherals to your material handling solution
- Access to all tablet control buttons and ports while tablet is docked
- Optional keyed lock for theft deterrence
- Downward-facing I/O ports; integrated cable strain relief and cable management system
- Vesa 75mm mounting pattern
7170-1070-00 Specifications
Weight
2.4 lbs / 1.09 kg
Height
9.87 in / 25.07 cm
Width
11.25 in / 28.58 cm
Depth
4.5 in / 11.43 cm

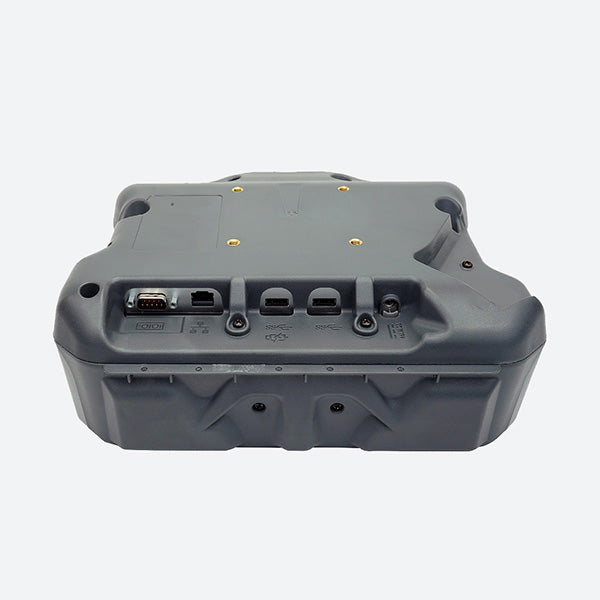

Port Replicators:
Ethernet (1) - RJ45
USB 2.0 (2) - 4 Pin Forward-Facing (500mA)
USB 3.0 (1) - 4 Pin Rear-Facing (900mA)
USB 3.0 (1) - 4 Pin Rear-Facing, Fast Charging (1500mA)
RS232 Serial (1) - D-Sub 9
Pin Power Input - 19 Vdc
