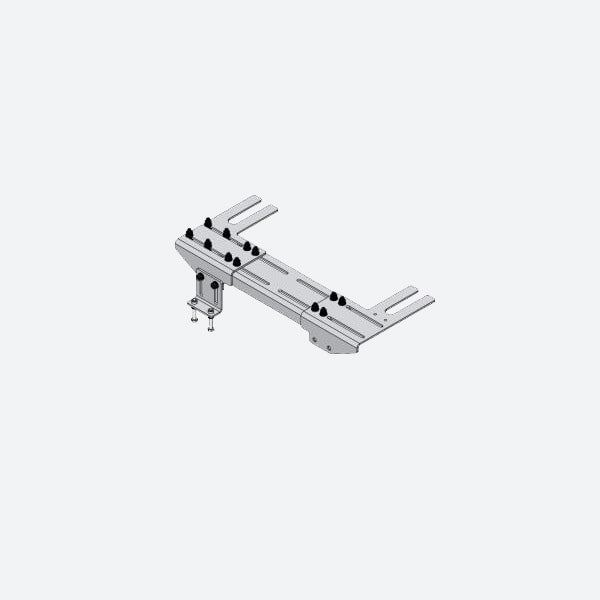

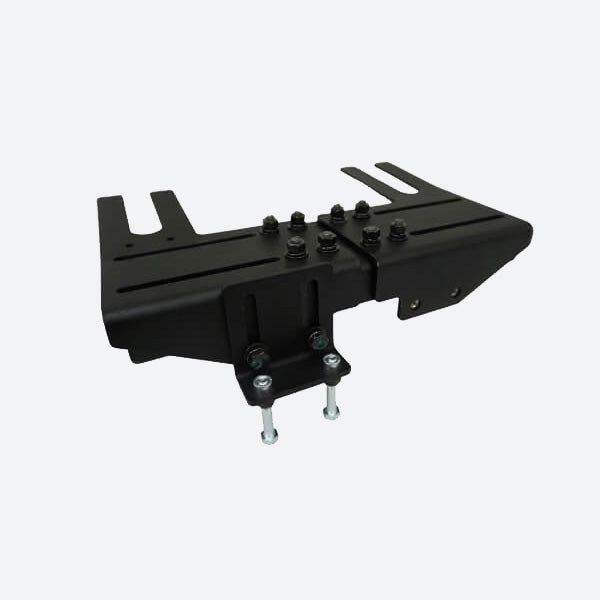

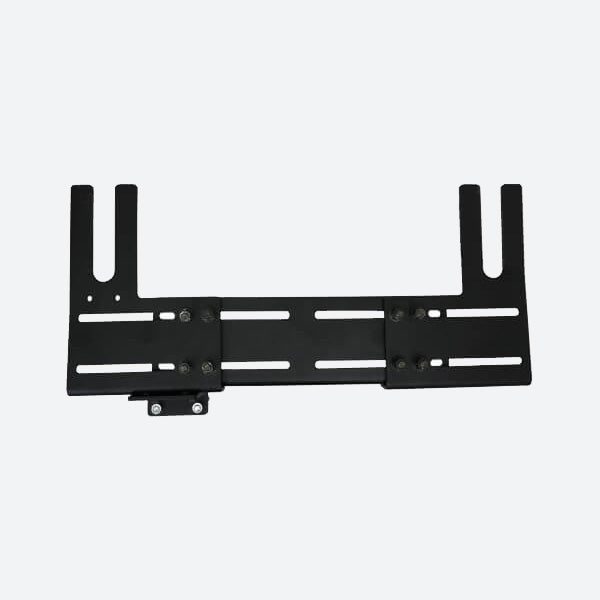

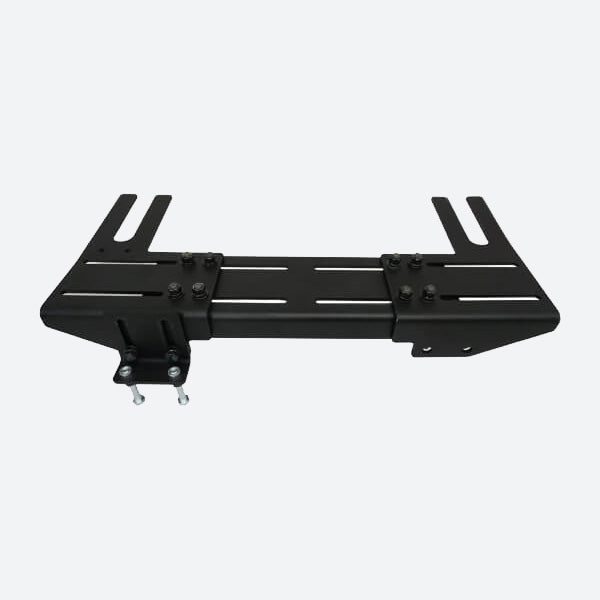

Havis Universal Heavy Duty Mount C-HDM-1019

Havis Vehicle Base C-HDM-1019

Havis Universal Heavy-Duty Pedestal Mount Base

C-HDM-1019 Features

• Universal Heavy-duty base for pedestal mounts
• Allows pedestal mounting in a variety of vehicles without a vehicle-specific mount option
• Mounts under seat bolts on left and right drive vehicles
• 9.2" of width adjustment (range: 10.9" to 20.1")
• Slots allow 4.3" of adjustment to customize placement of pole
• Stability foot with optional extension screws adjustable for seat mount heights 0.6" - 5.91"
• Recommended for flat and nearly flat floor applications
• Welded heavy 7-gauge steel construction
• Black powder coat finish
• For a complete Solution:
• 8.5" Heavy-duty telescoping pole, short handle: C-HDM-202
• Heavy-duty offset angle bracket: C-HDM-411
• 11" slide out locking swing arm with motion adaptor: C-MD-112
• Lifetime warranty
• Made in USA

C-HDM-1019 Specifications

Includes:    HDM base plate and Mounting hardware
Product weight:    9 lbs
Gross weight:    10 lbs
