Havis 11″ Slide Out Locking Swing Arm C-MD-114

Havis Motion Attachment C-MD-114

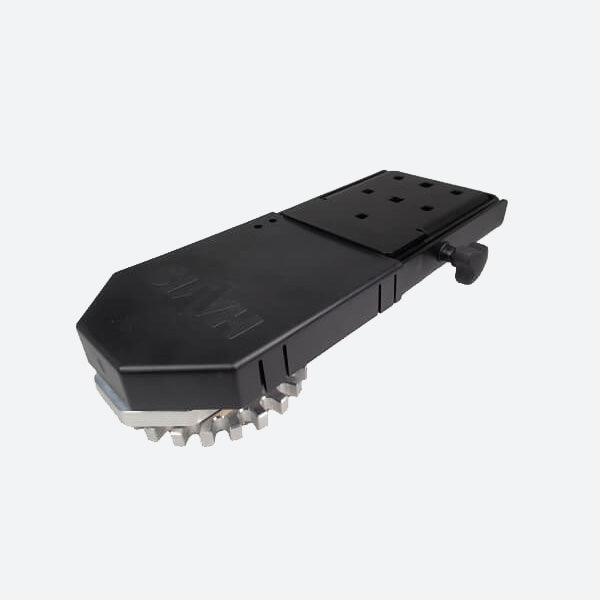

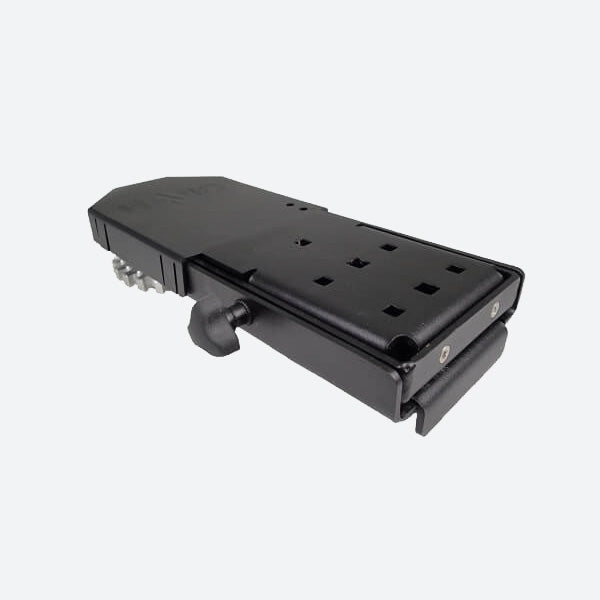

Havis 11-in Slide Out Locking Swing Arm

C-MD-114 Features

• Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
• 360 degrees of smooth rotation for ideal computing device viewing angles from both the driver and front passenger seats
• Swing arm has 24 locking points, or every 15 degrees of rotation to maximize placement options
• Slide out extends up to 3.75" with smooth gliding action to lengthen arm from 11.25" up to 15"
• Locking handle provided for slide function can be installed on either left or right side
• Rotation and slide tension easily adjusted with hand tools, no disassembly required
• Ruggedized design adds protection for improved safety of occupants and equipment
• Material: rugged heavy gauge black powder coated steel and machined 6061 aircraft aluminum for strength, durability, and rust prevention
• Mounting pattern: 4 hole @ 2.125" square (1/4" Mounting hardware provided)
• Will accept C-MD-202, C-MD-204 and numerous other Havis motion and mounting devices
• Will accept C-ADP-110 adaptor

C-MD-114 Specifications

Dimensions: Overall length - 11.25 to 15" overall width - 5" (6" including handle) overall height - 2"
Product weight: 6.6 lbs.
Gross weight: 8 lbs
