Havis Tilt Swivel Motion Device for Compact Tablet Applications C-MD-207

Havis Motion Attachment C-MD-207

Havis Tilt Swivel Motion Device for Compact Tablet Applications

C-MD-207 Features

• Tilt swivel motion device for compact tablet applications
• Used to mount Havis, inc. tablet mounts or other products with VESA 75 hole pattern
• Some products can be mounted on both sides for additional positioning options

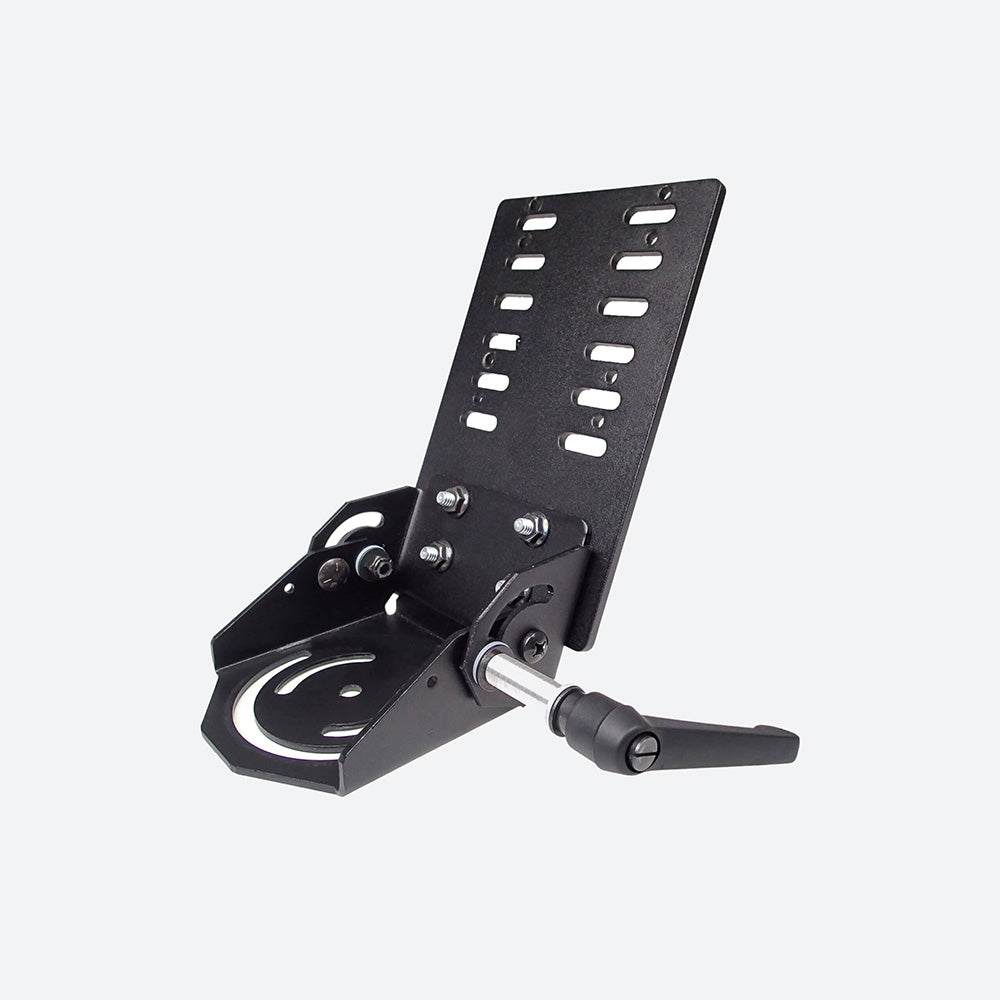

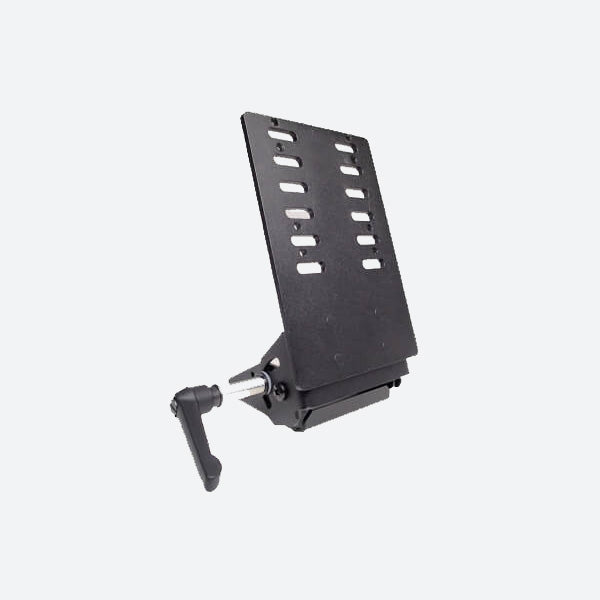

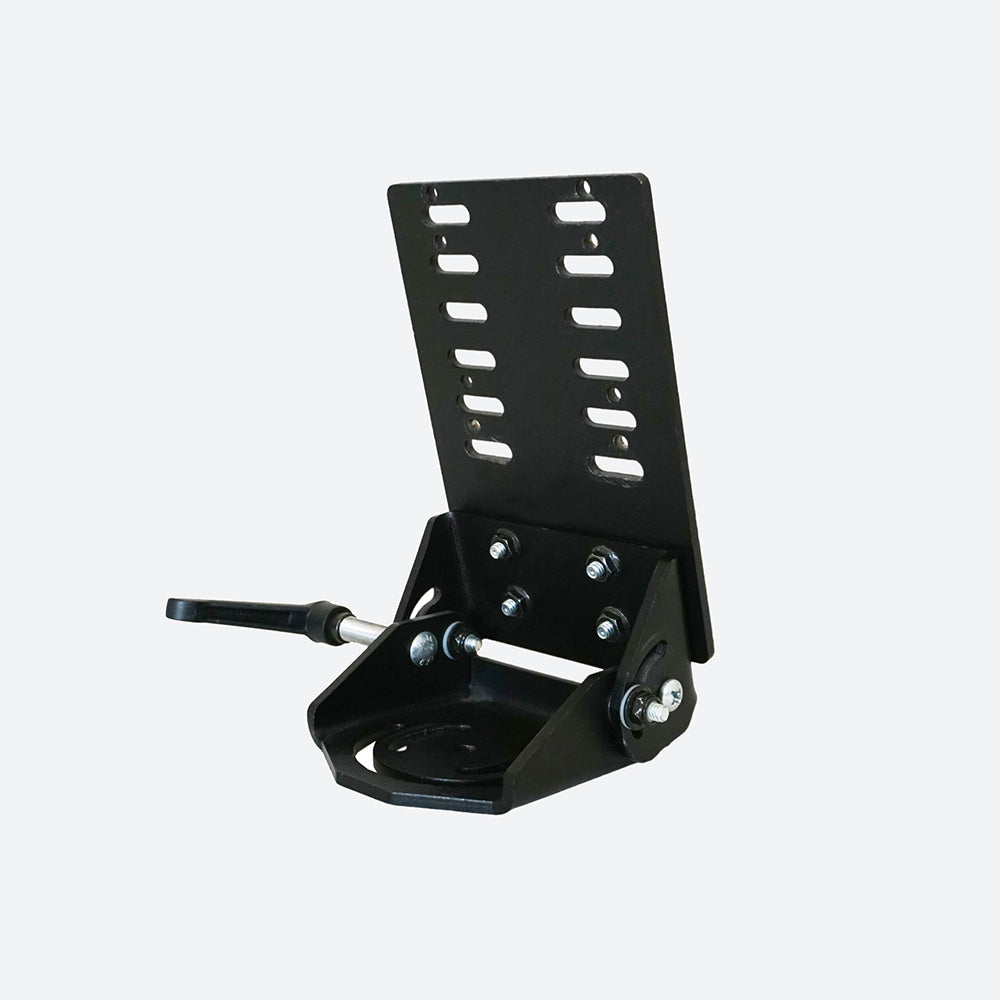

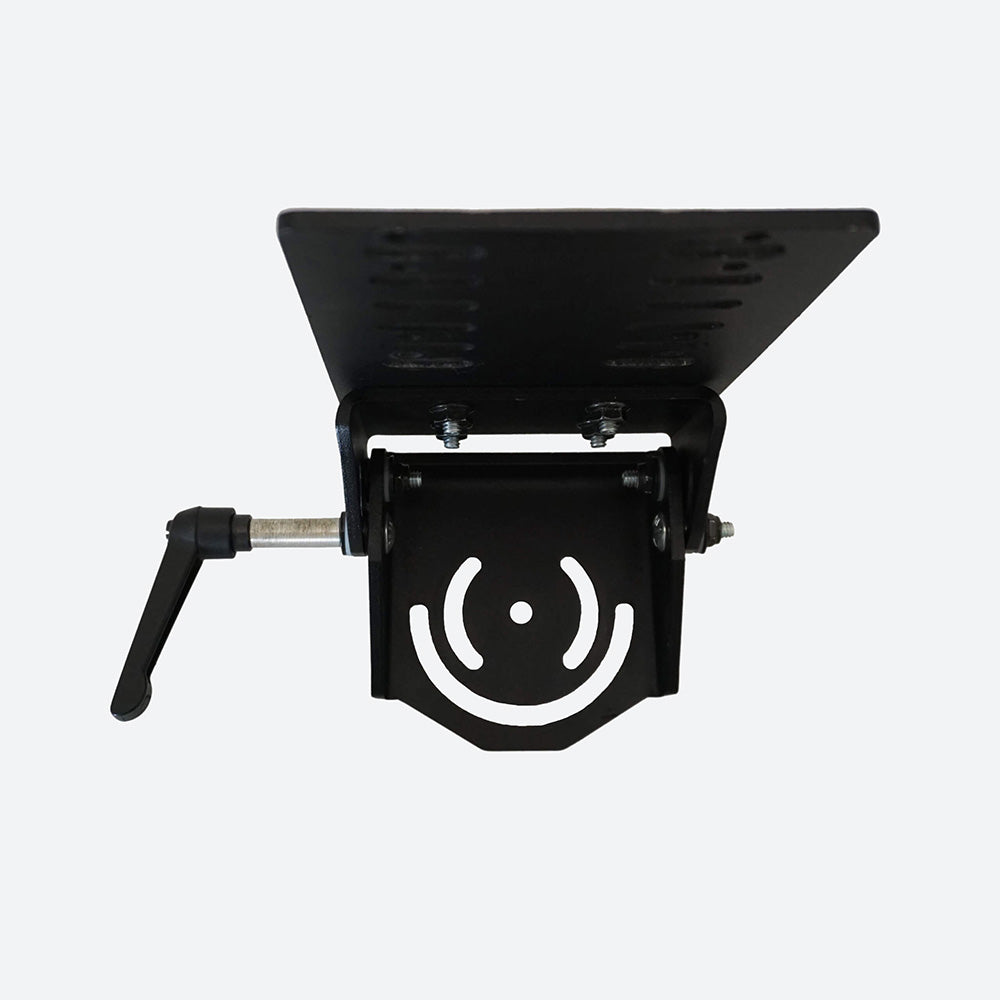

• DS-PAN-800 Series and UT-201 fit on both sides (see photos)
• Mounts to C-HDM-300 Series, C-SM-SA, C-3083-1 and other products with motion device hole pattern
• Mounts to CM007855 (see C-MH-1003)
• Can be used on C-HDM-305 with C-KBM-100 Series
• 8.50" overall height in open position (at 90°)
• 115° maximum vertical tilt movement
• 90° and 180° horizontal rotation ( limited 180° applications)
• Assembly includes tilt swivel device with C-MM-218
• Includes short locking handle
• Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
• DS-PAN-600 Series not recommended on this device

C-MD-207 Specifications

Gross Weight:    11 lbs
