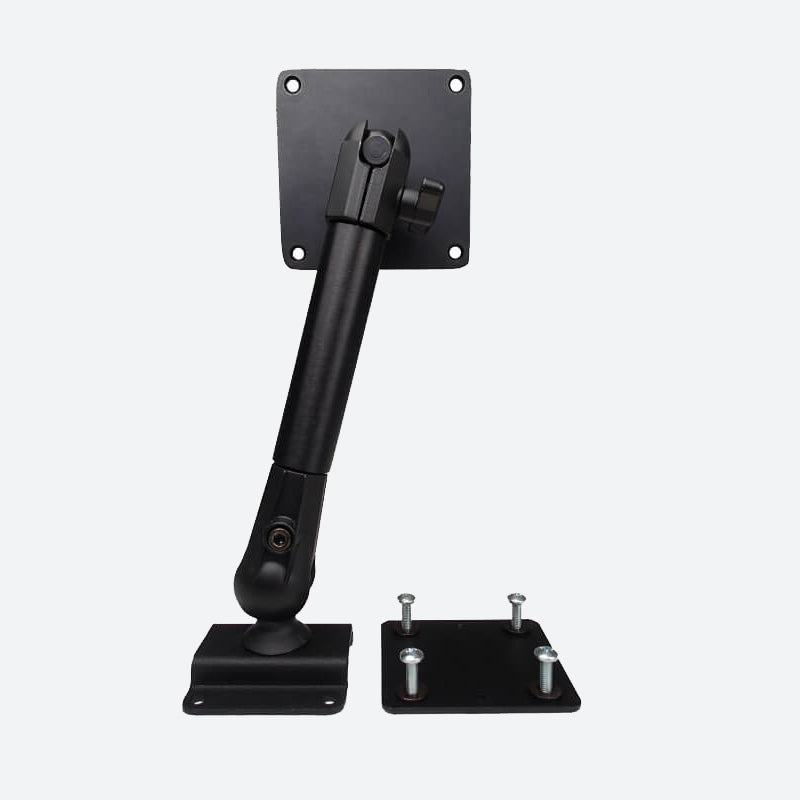

Havis Universal Rugged Articulating Dual Ball Mount, 10″ tall C-MD-402

Havis Full Mount C-MD-402

Havis Universal Rugged Articulating Dual Ball Mount, 10-in tall

C-MD-402 Features

• Provides an ideal mobile solution for tablet, phone or keyboard
• One end mounts on any flat surface, while the other supports a device
• Both ends easily adjustable, any position holds equipment steady
• Both ends offer full range of motion: 210° tilt, 360° turn & 360° rotation
• Lower ball (1.14"/29mm dia) requires tool adjustment, strengthens fixed position
• Lower mount plate hole pattern: 2.00" x 2.06" (.213" holes)
• Upper ball (.815"/20.7mm dia) has a knob for fine tuning device adjustment
• VESA 75mm (2.95"sq) pattern for equipment mounting end
• Recommended maximum weight carrying capacity 5 lbs., dependent upon orientation

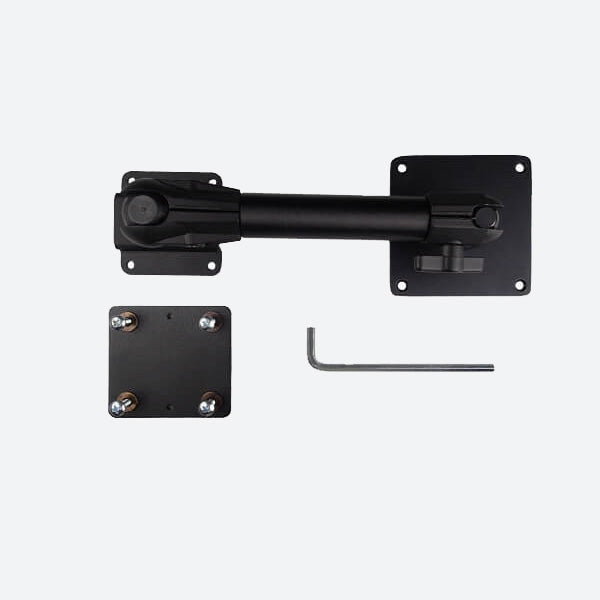

• Includes reinforcing back plate, hardware and adjustment tool
• Back plate requires 3.00" x 3.00" clear area below mounting surface
• Bottom requires 2.63" x 2.63" clear surface mounting area
• Constructed of aluminum, glass fiber-reinforced composite plastic, steel
• Rugged and durable, yet lightweight

C-MD-402 Specifications

Gross Weight:    2 lbs
