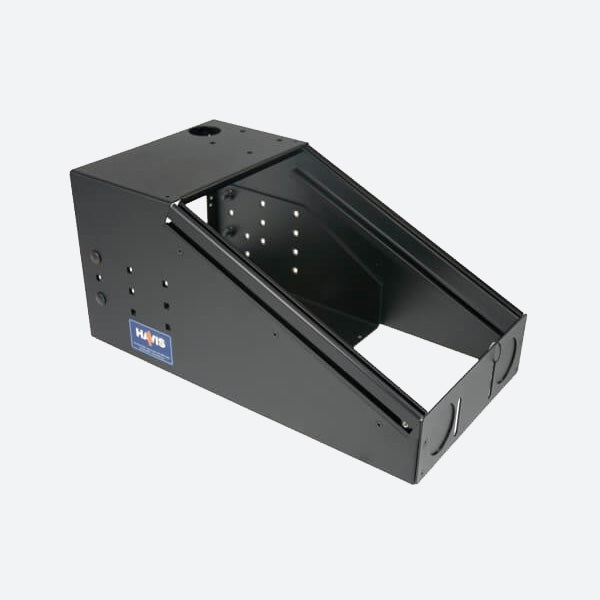

Havis 12″ Enclosed 25 Degree Angled Series Console C-SM-1225

Havis Console Box C-SM-1225

Havis 12-in Enclosed 25 Degree Angled Series Console

C-SM-1225 Features

• 12" enclosed 25° angled Series Heavy-duty angled console
• 8.375" high, 9" wide, 16.75" length, max. depth 9.25", min. depth 3.5"
• 2 piece housing design allows for adjustable height (expands 1" or 2" to provide additional internal mounting depth)
• Mounts to vehicle hump bracket, ordered separately (tunnel mount recommended)
• Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• Works with most Havis, inc. console accessories and control head equipment brackets
• See drawing min/max for mounting depth allowed for control heads and/or options.
• Standard wire knockout covers in front end panel of console can be removed to provide professional wiring of mounted equipment
• Hole pattern on top right corner of console allows mounting of C-MD-100 Series mounting device
• Hole pattern on the right side of console allows mounting of C-HDM-204 side mount telescoping pole
• Internal angled cup holder not available for this console

C-SM-1225 Specifications

Gross Weight:    13 lbs
