Havis Vehicle-Specific 22-in Angled Console for Dodge Ram C-VS-0814-RAM-2

Havis Console C-VS-0814-RAM-2

Havis Vehicle-Specific 22-in Angled Console for 2013-2024 Dodge Ram Retail Pickup Truck

C-VS-0814-RAM-2 Features

• Vehicle-Specific 22"" Console for 2013-2024 Dodge Ram 1500 Special Service Police Pickup Truck with No center seat
• 2013-2024 Dodge Ram Retail Pickup Truck 1500, 2500 & 3500 with DS / Classic trim level and 40/20/40 seats (center /20/ section must be removed)
• 2018-2024 Retail vehicle has OEM Media Hub that is different if vehicle has an OEM Apple Carplay option. Havis bracket C-EB15-DAP-1P included if you desire to mount the different style Hub into the C-VS-0814-RAM-2 console.
• If installing console into a Dodge Ram 1500 special service police truck, you will need to separately purchase the C-B66 bracket kit from Havis or the OEM center seat brackets from a Dodge parts supplier
• Replaces factory OEM small center seat section and Fits between Bucket seats
• See "Related Product Information" under Resources tab for details and part numbers

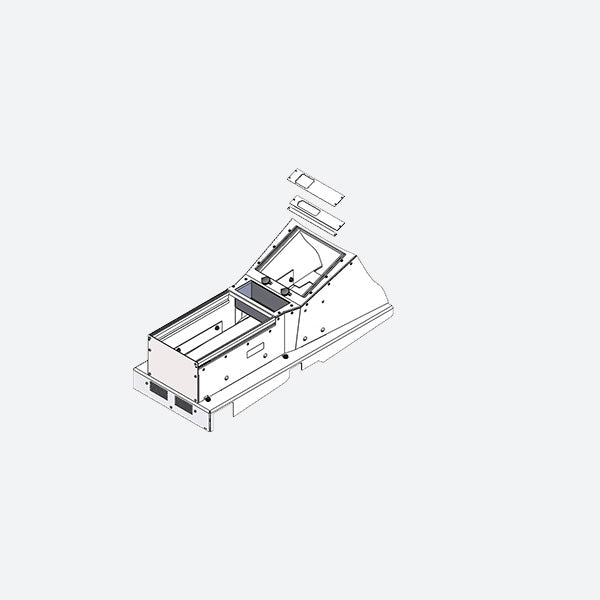

• See drawing min/max for mounting depth allowed for control heads and/or options
• Does Not fit 2019 Dodge Ram Retail 1500 Pickup Truck with DT trim level
• Does not work with OEM full center console or 4 x 4 floor shifter
• If using a vertical gun rack between seats, a partition with gun alcove is recommended
• Includes:
• Vehicle mounting kit
• Two (2) 12 volt sockets with wire and fuse and one (1) C-AP-0325 accessory pocket. C-AP-0325 is built into console and does not use internal face plate space
• C-EB20-RAU-1P - 2" high face plate for OEM aux / USB connectors uses 2" inches internal face plate space
• C-EB15-DAP-1P/C-FP-05 equipment bracket uses 2" internal mounting space
• Configure a complete solution with these products:
• C-HDM-214, C-MD-112 recommended for mounting laptop platform or
• C-HDM-204, C-MD-204 with C-HDM-303 for mounting laptop platform
• Also works with C-HDM-152
• See drawing min/max for mounting depth allowed for control heads and/or options

• Made in USA
• Lifetime warranty

C-VS-0814-RAM-2 Specifications

Compatibility:    Does not fit 2019 Dodge Ram retail 1500 pickup truck with dt trim level
Does not work with OEM full center console or 4 x 4 floor shifter
Dimensions:    Overall length from dash 28" long
Rear horizontal section is 6" high, 9" wide
Forward section angles from 6" to 10" high and sides taper from 9" to 12" wide (add approximately 2" height for one piece floor platform)
Material:    Heavy gauge steel
Finish:    Black powder coat
Gross weight:    35 lbs
