Havis Vehicle-Specific 18-in Angled Console for Dodge Charger Police C-VS-0909-CHGR-PM-1

Havis C-VS-0909-CHGR-PM-1

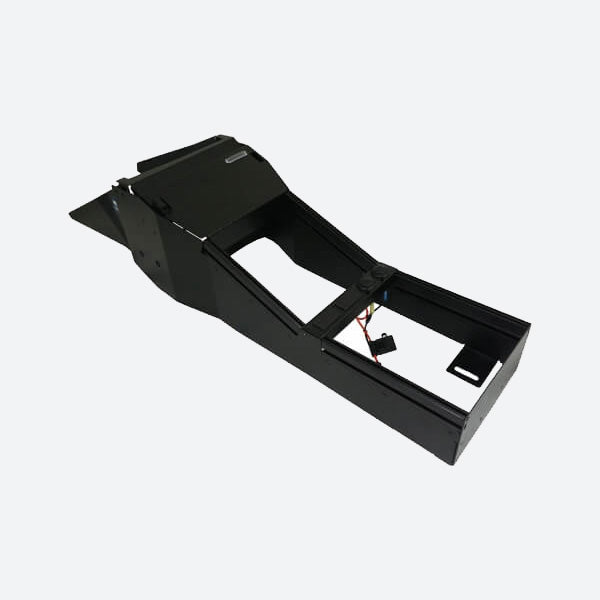

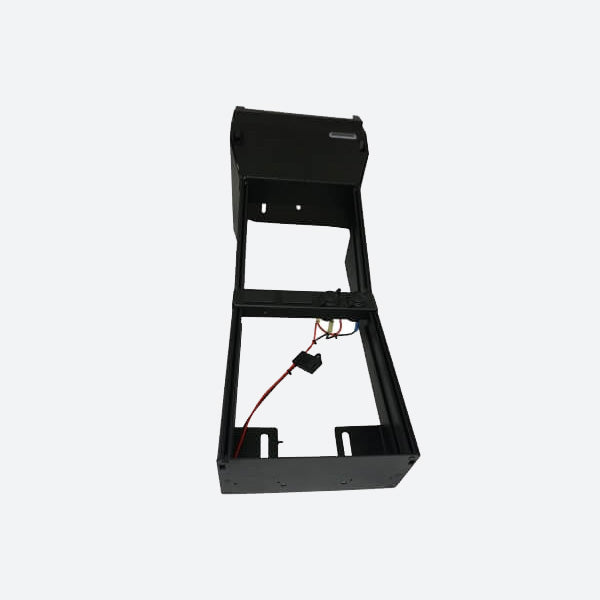

Havis Vehicle-Specific 18-in Angled Console w/ PocketJet 6 and 7 Internal Printer Mount for 2021-2023 Dodge Charger Police

C-VS-0909-CHGR-PM-1 Features

• For 2021-2023 Dodge Charger Police Package (column shifter)
• Angled console with 18" of total internal mounting space
• 9" front angled, 9" rear horizontal & 30° degree of angle
• Mounts between seats and fits lower dash contour
• Angled design minimizes height between seats
• Accepts Brother PocketJet 6 and 7 printers included in PJ-622, 623, 662, 663, 673, 722, 723, 762, 763 and 773 Model kits
• Hinged lid allows easy "top load" paper replacement, protects printer from spills, and has a window for viewing printer lights
• Includes:
• Single piece console housing w/ removable side panels
• Knockouts for running wiring through rear of console
• Cutouts for OEM USB module and 12v plugs
• Two (2) additional 12 volt sockets with wire and fuse mounted to crossbar, and a USB/switch (not included) cutout
• Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• Vehicle mounting kit
• If using a vertical gun rack between seats, a partition with gun alcove is recommended
• Has mounting holes for C-HDM-204 or 214 side mount poles (sold separately)
• Accepts most standard accessories (sold separately)
• Configure a complete solution with these products:
• See side view drawing min/max for mounting depth allowed for control heads and/or options
• Havis Rugged Keyboard & Keyboard mount: KB-106 & C-KB-201
• C-ARM-102 or C-ARM-103 armrests recommended (sold separately)
• C-SM Series brackets not recommended because front of console is too wide

• Made in USA
• Lifetime warranty

C-VS-0909-CHGR-PM-1 Specifications

Vehicle recommendation:    For vehicles with 12.1" screen factory option codes AV2 (integrated display package) or RDY (12.1" touchscreen) C-VS-1800-CHGR-3 is the recommended solution
Dimensions    38.7"L x 11.1"W x 10"H (Length includes trim panels)
Material:    Heavy gauge steel
Finish:    Black powder coat
Gross weight:    20 lbs
