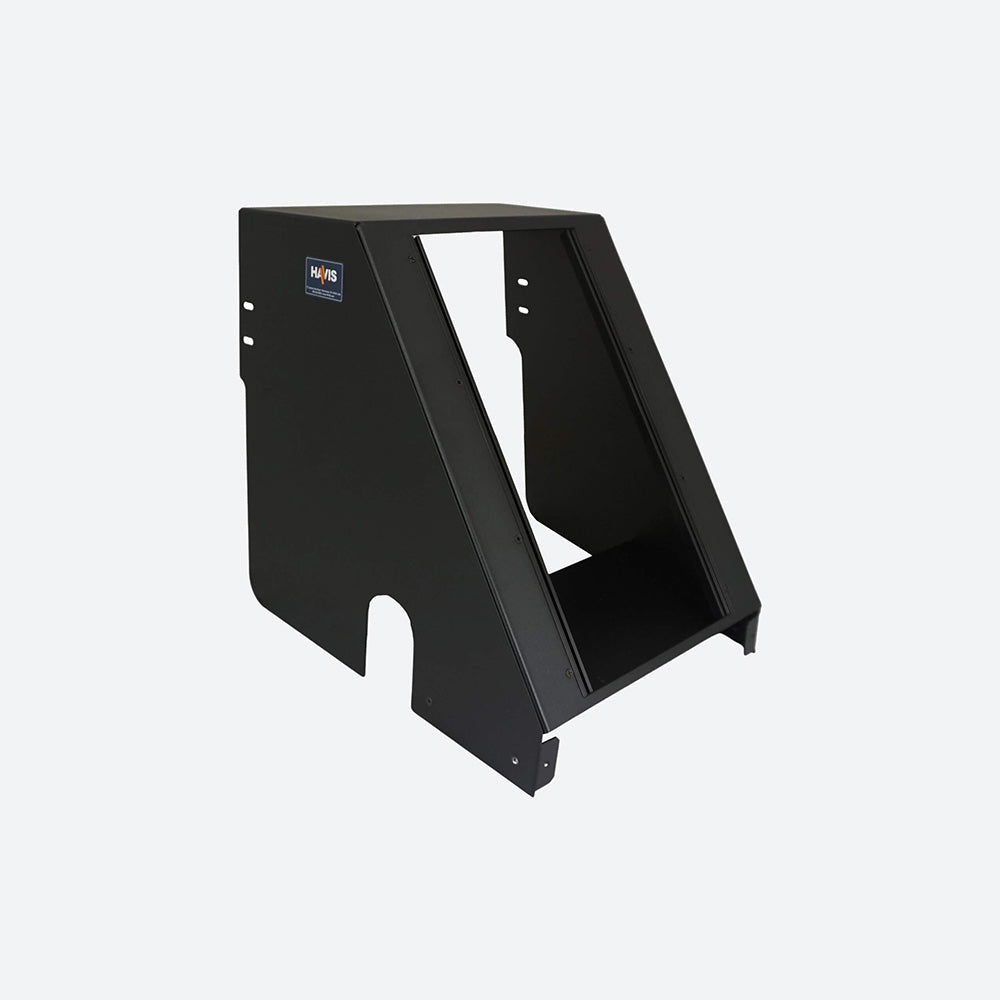

Havis Vehicle-Specific 18″ Under Dash Console For 2002-2025 Chevrolet G-Series or GMC Savana Van C-VS-1800-SAV

Havis Console C-VS-1800-SAV

Havis Vehicle-Specific 18-in Under Dash Console For 2002-2025 Chevrolet G-Series or GMC Savana Van

C-VS-1800-SAV Features

• 18" vehicle-specific console for 2002-2025 Chevrolet G-Series or GMC Savanna van Model
• Easy to install
• No permanent modification required
• Designed to mount to vehicle floor surface
• No vehicle mounting kit required
• 14 gauge formed steel housing with extruded aluminum top frame
• Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
• Ships motor freight when ordering 2 or more
• Does not work with C-HDM-107 computer mount
• For gas engine van only, does not work in diesel engine van

C-VS-1800-SAV Specifications

Overall measurements:    9" high x 9" wide x 28.25" long (including forward trim panel)
Height:    19"
Width at engine cover:    17"
Width at face (controls):    13.5"
Depth for controls:    top= 9" , middle= 12", bottom=4"
Console top platform:    8.5" x 13.5" wide (tapers out to 17")
Extends out from engine cover at - FLOOR:    20"
Gross weight:    28 lbs
