Havis Vehicle-Specific 22″ Wide Angled Console for 2025 Chevrolet Tahoe C-VSW-1012-TAH-1

Havis Console C-VSW-1012-TAH-1

Havis Vehicle-Specific 22-in Wide Angled Console for 2025 Chevrolet Tahoe Police Pursuit Vehicle

C-VSW-1012-TAH-1 Features

• Fits 2025 Chevrolet Tahoe PPV and SSV without OEM console
• 12.5" wide for additional accessory mounting or storage
• 22" of total equipment mounting space in 9"W section: 10" of equipment mounting space in front angled section, 12" of equipment mounting space in flat section
• 17" of total equipment mounting space in 3.3"W section: 5" of equipment mounting space in front angled section, 12" of equipment mounting space in flat section
• Mounts between bucket seats and fits to dash contour
• Includes internal front electrical equipment mounting shelf with removable front side trim panels for easy access
• Console includes provisions for internal or external side mount poles C-HDM-204 or C-HDM-214
• Two 12V DC "lighter plug" outlets with attached caps included

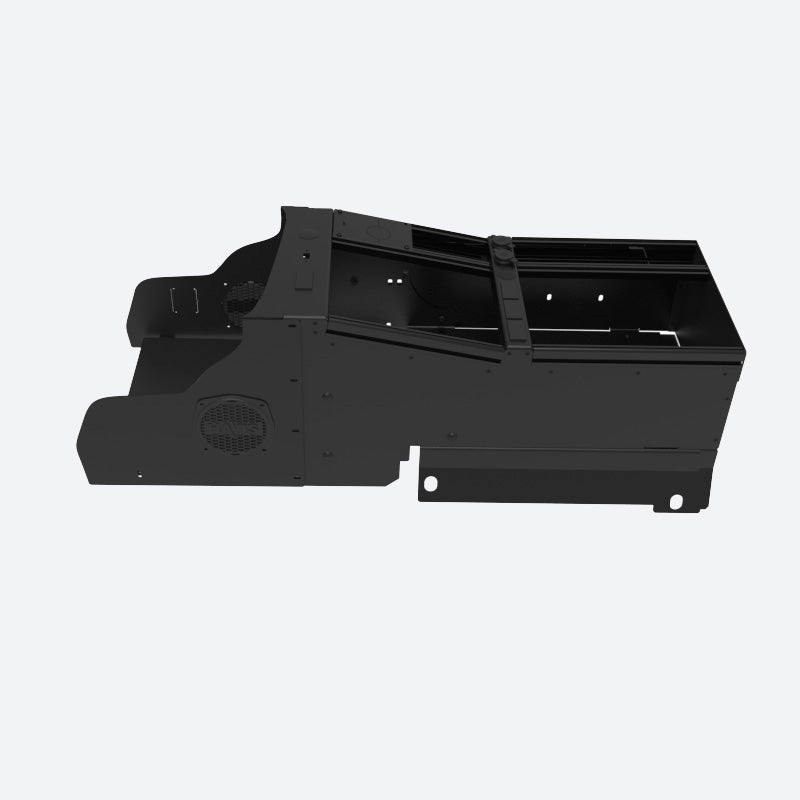

• See side view drawing min/max for mounting depth allowed for control heads and/or options
• Havis recommends that customers do not relocate the OEM 12V plug from the dash into the console housing for 2025 Chevrolet Tahoe consoles, as improper installation may cause an electrical short (gm bulletin no. PIT5800)
• C-LPO lighter plug socket & cap is available from Havis for adding 12V plugs elsewhere in the console
• Customize to your specific needs
• Includes filler plates (FP/FPW) and/or equipment brackets (EB/EBW) to completely enclose mounting area less internal mount options for 9”W and 3.3”W sections

C-VSW-1012-TAH-1 Specifications

Overall measurements:    14" high x 15.1" wide x 38.2" long (including forward trim panel)
Gross weight:    45 lbs
