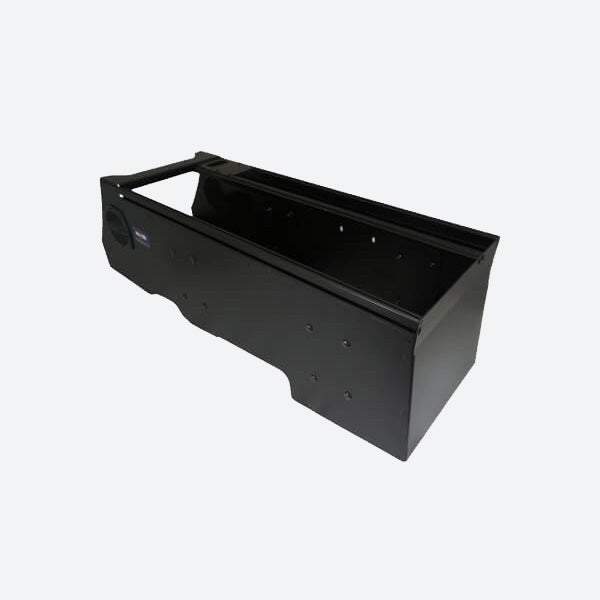

Havis Vehicle-Specific 30″ Wide Flat Console for Ford C-VSW-3000-F150-1

Havis Console C-VSW-3000-F150-1

Havis Vehicle-Specific 30-in Wide Flat Console for 2017-2022 Ford F-250, 350, 450 XL and XLT Super Duty pickup, F-450 and 550 cab chassis, 2015-2020 F-150 SSV, 2018-2020 F-150 Responder, 2015-2020 Ford F-150 XL and XLT pickup, and 2022-2021 Ford Expedition SSV

C-VSW-3000-F150-1 Features

• 30" long 12.5" wide style vehicle-specific console for 2017-2022 Ford F-250, 350, 450 XL & XLT super duty pickup, F-450 & 550 cab chassis, 2017-2022 F-600 Chassis Cab,
• 2015-2020 F-150 SSV (Special Service pickup)
• 2018-2020 F-150 (Responder)
• 2022-2021 Ford Expedition SSV
• 30" of total equipment mounting space in 9"W section
• 24.5" of total equipment mounting space in 3.3"W section
• Angled console cleanly fits between the bucket seats and the dash contour for a custom look in your vehicle
• Heavy gauge steel, welded construction for Heavy-duty use and durability
• Black powder coat finish
• Lifetime warranty
• Made in USA

Includes:

• Filler filler plates (FP/FPW) and/or equipment brackets (EB/EBW) to completely enclose mounting area less internal mount options for 9”W and 3.3”W sections
• Provisions for internal or external side mount poles and side panels with perforations to allow for equipment cooling as well as internal speaker mounting
• Vehicle mounting kit, no drilling required
• Cutout for relocation of OEM USB into the console and additional trim panel for XL dash without CD player

Compatible Solutions:

• C-DMM-3006 dash monitor mounts, C-ARM-102, C-HDM-214, C-USB-2 dual USB charge module, C-SW-x rocker switch, C-PM-122 printer mount

C-VSW-3000-F150-1 Specifications

PRODUCT SPECIFICATIONS:
C-PM-122 printer mount
Overall measurements: 12.89" high x 12.5" wide x 38" long (including forward trim panel)

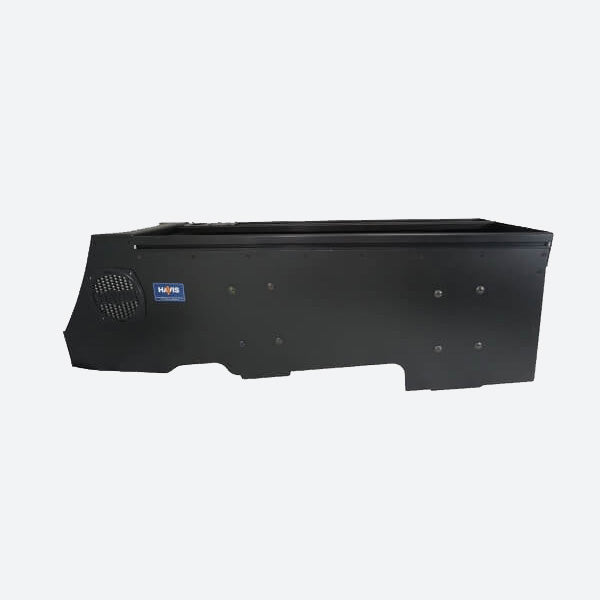

See side view drawing min/max mounting depth allowed for control heads and/or options
OEM tunnel plate must be removed
Console only works in Super Duty XL and XLT models with Standard AM/FM Stereo
If using console with a vertical gun rack between seats, a partition with gun alcove is recommended. there is 9.5" from end of console to Pro-gard a partition gun alcove. dual weapons mount not recommended because of lack of space
Works with column shifter and OEM full length center console (OEM console must be removed, but the dash will have uncovered areas on the sides) dash parts to fill space can be ordered from Ford. rear OEM ductwork must also be removed and blocked off
The console is not compatible in higher trim level trucks with 4 X 4-floor shifters, full-length center console, or with the 12" screen for Sync 3 with Voice-Activated Navigation or Sync 4 with Enhanced Voice Recognition
Does not work with OEM manual transmission floor shifter
Not compatible with OEM optional “Ultimate Trailer Tow Camera System with Pro Trailer Backup Assist”
Now ships UPS
Customize to your specific needs
Includes equipment brackets and filler plates to enclose area
See Havis 3.3" wide console accessories for options
Gross weight: 47 lbs
