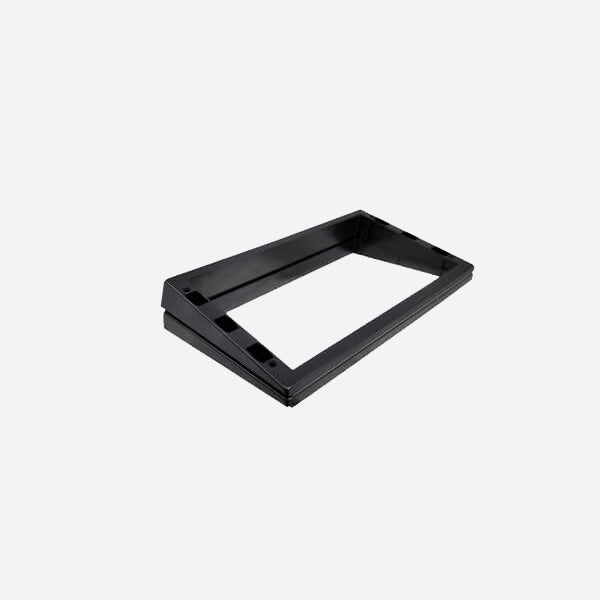

Havis Angled Wedge Kit for Havis Cup Holders with 5″ Mounting Space CUP2-1005

Havis Console Accessory CUP2-1005

Havis Angled Wedge Kit for Havis Cup Holders with 5-in Mounting Space

CUP2-1005 Features

• Wedges fit between Havis angled console and cup holder to allow cups to sit more level
• Works with CUP2-1001 self-adjusting double internal mounting cup holder (sold separately)

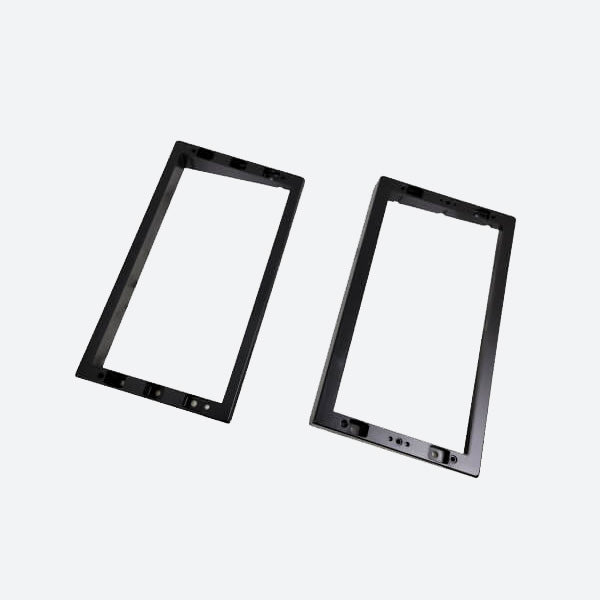

• Kit includes 2 stackable wedges: 5-degrees, and 10-degrees, for a total 15-degree stack
• Can be used with Havis 1-piece 4" equipment brackets to improve viewing angle of light & siren control heads, radios, etc.
• Lightweight and high-strength polycarbonate design
• Includes Mounting hardware

CUP2-1005 Specifications

Occupies 5" of equipment mounting area
10-degree wedge recommended for consoles such as C-VS-1012-TAH-1, C-VSW-1012-TAH and C-VSW-1005-TAH-PM
15-degree stacked wedges recommended for consoles such as C-VS-1400-INUT-1, and C-VS-1508-INUT
Dimensions: 8.84"L x 5.05"W x 1.74"D
Product weight: 0.4 lbs
Gross weight: 0.45 lbs
