Havis Rugged USB-C Port Replication Hub DS-DA-604

Havis Dock DS-DA-604

Havis Rugged USB-C Port Replication Hub

DS-DA-604 Features

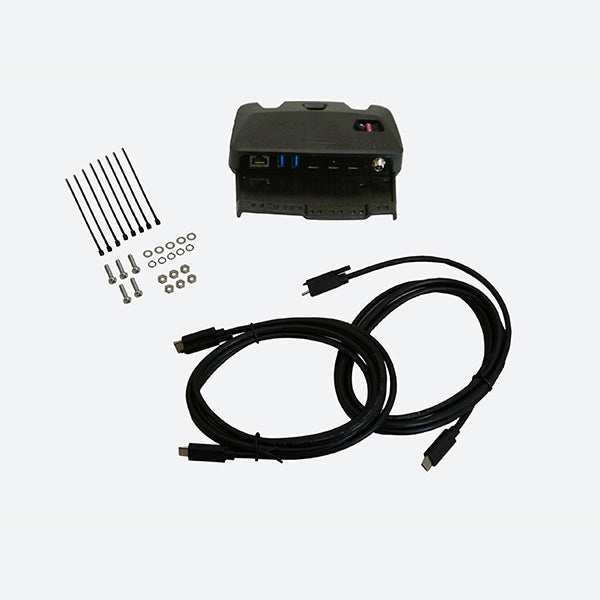

• Rugged USB-C Port Replication Hub with power cable, upstream USB-C cable, driver software, 3A fuse, and mounting hardware
• Ideal for use in unfavorable conditions where ruggedness and reliability is a necessity, such as mobile workplaces, manufacturing plants, shipping/loading docks, construction, and agricultural industries
• RJ45 Gigabit Ethernet port
• 2x Type C USB3.1 Gen1 ports with thumbscrew retention feature
• 2x Type A USB3.1 Gen1 ports
• Upstream USB-C cable included with thumbscrew retention feature
• User-replaceable 3.0A fuse
• Multiple mounting hole patterns including VESA75 enable secure mounting on flat surface
• Compact, lightweight Polycarbonate-ABS construction ensures durability and temperature resistance
• Diagnostic LED indicators for hub power and RJ45 Ethernet link activity
• Integrated strain relief secures cable connections, preventing disconnects and connector damage
• Economical expansion of peripherals for harsh work environments, such as in-vehicle video, GPS, scanners, card readers, and printers
• Internal power supply keeps peripherals safe from damage during over-voltage, engine cranking and voltage spikes

DS-DA-604 Specifications

Port Replication:    (1) RJ45 Gigabit Ethernet port, (2) USB3.1 Gen 1 Type A ports (maximum current 0.9A), (2) USB3.1 Gen 1 Type C ports (maximum current 1.5A)
Upstream connection:    USB3.1 Type C upstream input with thumbscrew retention feature
Power requirements:    Internal power supply input range 9-36VDC
Cables included:    Type C upstream cable with thumbscrew retention feature, threaded power cable with cigarette lighter adapter
Other items included:    User-replaceable 3.0A fuse, mounting hardware
Temperature range:    Operating environment: -30° C to 70° C (-22° F to 158° F) Storage environment: -40° C to 85° C (-40° F to 185° F)
Product Dimensions:    1.25” (3.18 cm) H x 5.65” (14.35 cm) W x 4.91” (12.47 cm) D
Product Weight:    0.44 lbs. ( 0.20 kg)
Gross weight:    2 lbs
