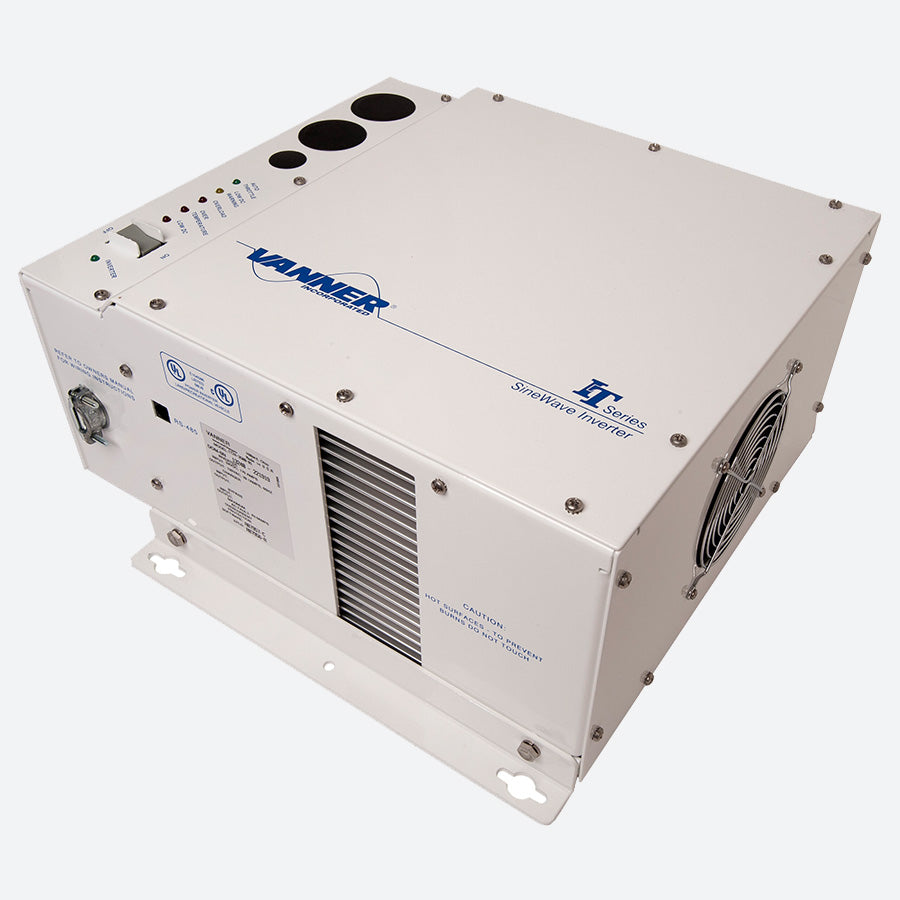

Havis Vanner IT Series Pure Sine Wave Power Inverter With 12VDC Input & 1800W AC Output IT12-1800-01

Havis Power Management IT12-1800-01

Havis Vanner IT Series Pure Sine Wave Power Inverter With 12VDC Input and 1800W AC Output

IT12-1800-01 Features

• Vanner’s Industrial Grade IT Series AC Power Inverters operate and protect even the most sensitive equipment in the most extreme conditions
• Provides 1800W of continuous power and 3-second surge power up to 3600W
• DC-AC inverter system designed with advanced power electronic and microprocessor technology
• TruWave technology generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions
• Efficienty rating of 90% to 93% provides longer inverter engine-off run time from batteries and lower battery discharge
• Voltage Regulation ±5% and Waveform Regulation <4% THD
• DC input range of 10.5Vdc to 16.6Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
• Operating temperature range of -40F to 105F (-40C to 40C) for reliability in any climate
• Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
• Easy installation via Multi-Configurable mounting brackets
• GFCI Duplex Receptacle
• 3 DC Input Cable Locations
• All-metal body and chassis ensures safe operation and secure mounting regardless of orientation
• Optional: Load Demand Energy Saver
• 4-yr warranty if installed with Vanner approved installation harness

IT12-1800-01 Specifications

Certifications:    UL 458
DC Input:    12Vdc
DC Voltage Range:    10.5V to 16.5V
Operating Temperature:    -40F to 105F (-40C to 40C)
Surge Rating:    200% of continuous power for 3 seconds
Dimensions:    8.0”H x 13.75”W x 15.75”D
Product Weight:    48 lbs
EMC Standards:    FCC Class B
Efficiency:    90% to 93%
Standby Recovery:    5 seconds
Gross weight:    64 lbs
