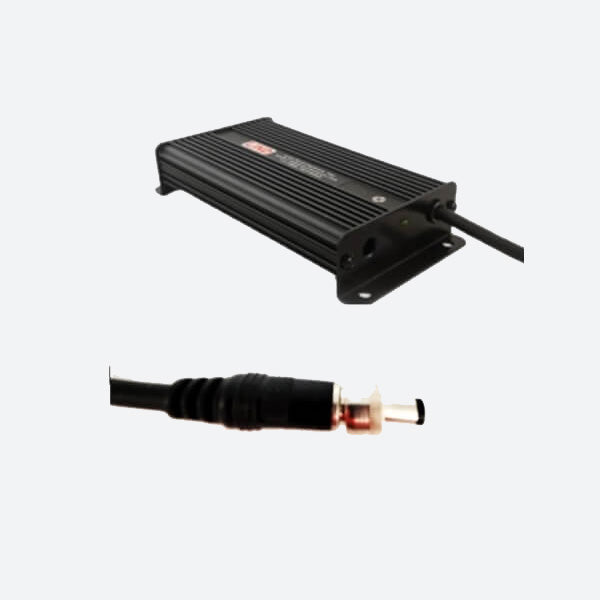

Havis 10-32V Isolated Power Supply for use with Havis Docking Stations for Zebra LPS-174

Havis Power Supply LPS-174

Havis 10-32V Isolated Power Supply for use with Havis Docking Stations for Zebra ET51 and ET56 DS-ZEB-101/104, DS-ZEB-201/204, DS-ZEB-301/304

LPS-174 Features

• ompatible Havis docking stations: DS-ZEB-101/104, DS-ZEB-201/204
• Removable output cable with threaded connector for Havis Zebra docking stations without internal isolated power supplies (DS-ZEB-101/104, DS-ZEB-201/204)
• Integrated input cable with bare wire leads provides flexible connection to ChargeGuard or other appropriate power source
• Power supply kit includes: 60 w LIND power supply with attached input cable, 72" output power cable with threaded connector, and Mounting hardware

LPS-174 Specifications

Input voltage range:    10-32 VDC
Output power:    60W, 12 VDC/5.0 a
Input cable:    72" integrated with bare wire leads
Output cable:    72" removable with threaded switchcraft connector
Dimensions:    (6.0" x 3.0" x 1.14")
Gross weight:    1 lbs
