Havis Rugged Dock for Zebra TC73/TC78 Mobile Computers with USB-C Accessory Plug PKG-DS-ZEB-701

Havis Dock PKG-DS-ZEB-701

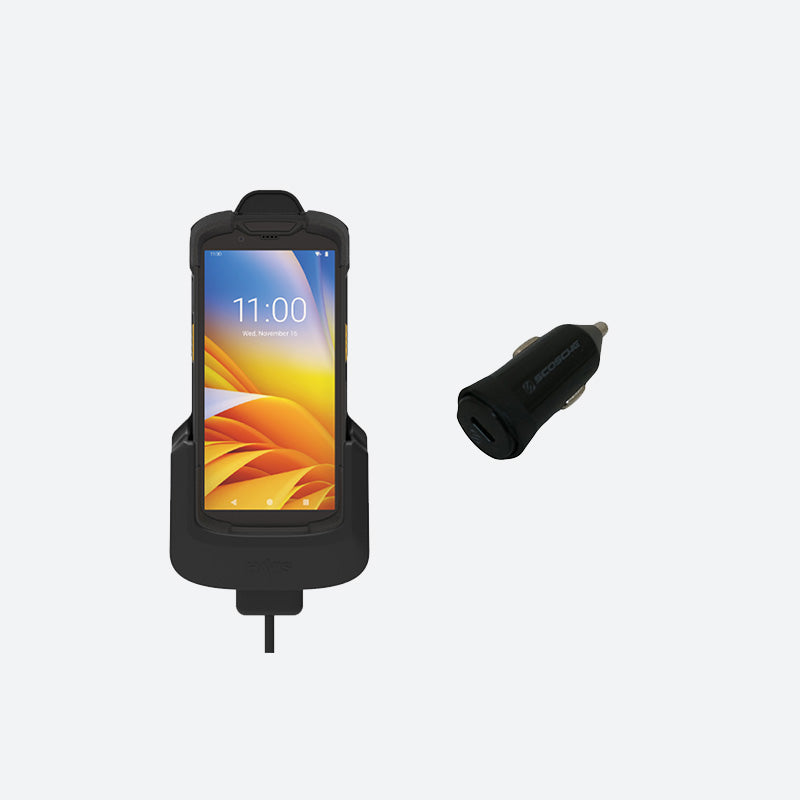

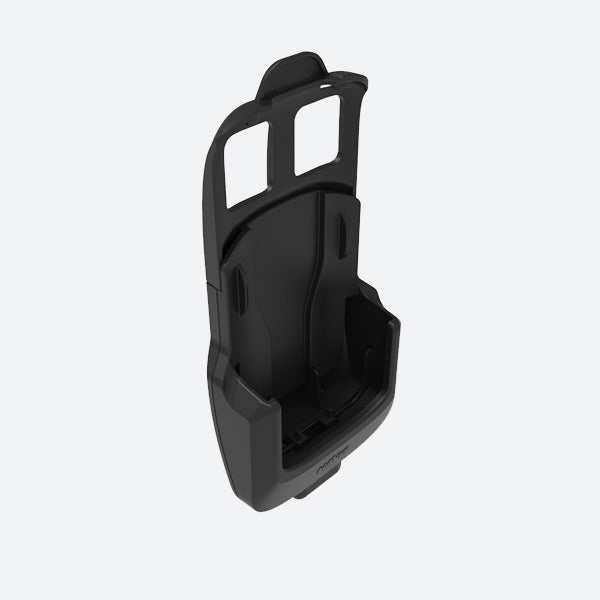

Havis Rugged Docking Station for Zebra TC73/TC78 Mobile Computers with USB-C Accessory Plug

PKG-DS-ZEB-701 Features

• Supports Public Sector, Retail, Hospitality, Warehouse & Distribution, Energy & Utilities, Field Service, and other demanding environments
• Robust docking solution for Zebra TC73/78 and Workstation Connect. Includes DS-ZEB-701 Rugged Docking Station and C-USB-4 Accessory Plug
• Charging and data transfer via user replaceable USB-C cable
• C-USB-4 20W USB-C Accessory Plug supports Power Delivery 3.0 for fast charging
• Easy access to all TC73/78 buttons
• One handed docking and undocking
• Compact and lightweight design
• Supports extended battery and hand strap
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Integrated AMPs mounting pattern

PKG-DS-ZEB-701 Specifications

Dimensions:    9.06” (23.0 cm) H x 4.20” (10.7 cm) W x 2.19” (5.6 cm) D
Mounting:    AMPS
Communication Interface:    USB-C to USB-C cable
Working Voltage:    5 VDC
Operating environment:    -20°C to 50°C (-4°F to 122°F)
Storage environment:    -40°C to 85°C (-40°F to 185°F)
Testing:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30 mph Cycle Testing: Dock and undock for 20K cycles Environmental Testing: Hot/cold operating -20°C to 50°C (-4°F to 122°F) Environmental Testing: Hot/cold storage -40°C to 85°C (-40°F to 185°F)
Product weight:    0.65 lbs. (0.29 kg)
Gross weight:    1 lbs
