Havis VSX Console with Front Printer Mount Or Integrated Storage Bin, Cup Holder and Fuse Block for 2024-2025 Chevrolet Blazer PKG-VSX-1800-BLZR-PM-EV

Havis Console PKG-VSX-1800-BLZR-PM-EV

Havis Package and VSX Console with Front Printer Mount Or Integrated Storage Bin, Cup Holder and Fuse Block for 2024-2025 Chevrolet Blazer EV PPV

PKG-VSX-1800-BLZR-PM-EV Features

• Convenient package solution offers the essential elements for any installation

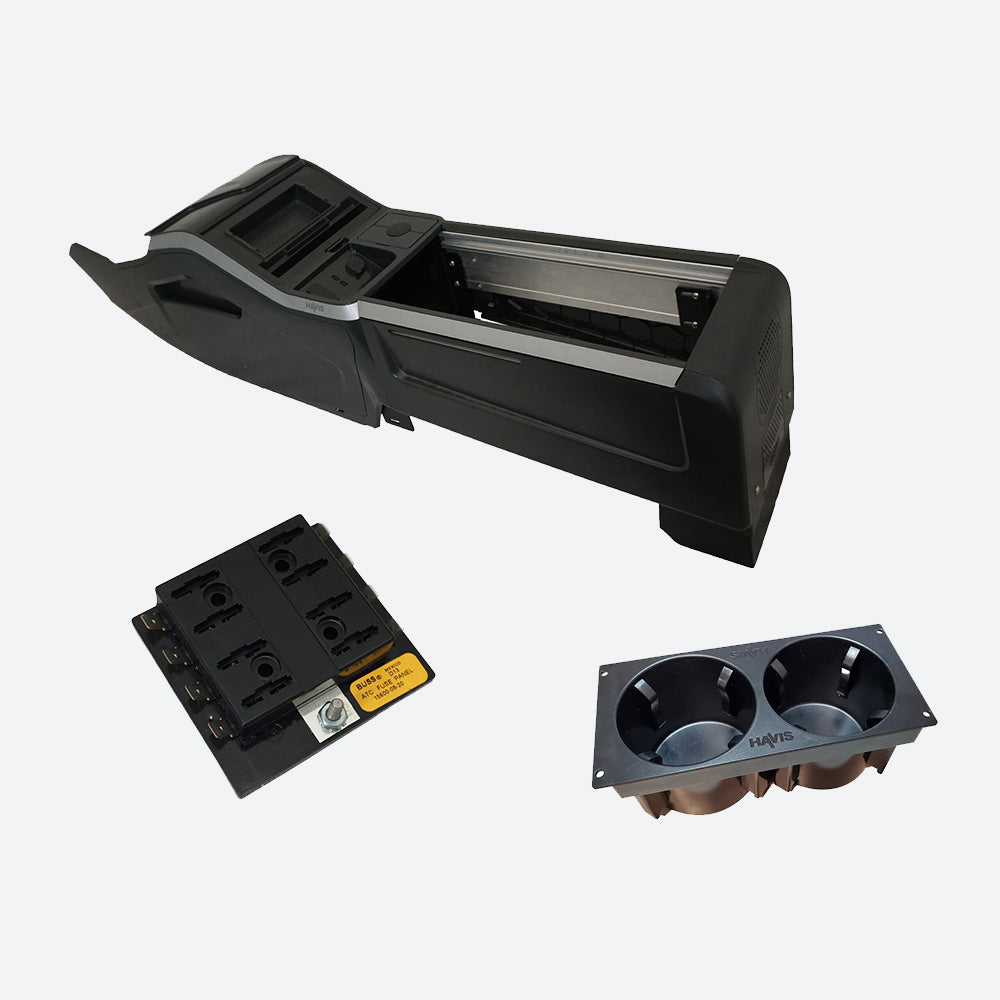

• Package includes Havis C-VSX-1800-BLZR-PM-EV console, CUP2-1004 fixed mount cup holder, and CMX15600-08-1 fuse block kit
• Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
• Heavy-duty steel floor-mounting structure provides rigid framework for console
• Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
• 16% lower weight than comparable steel consoles
• Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
• Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
• If printer is not being used, leave pre-installed liner in place
• Removable tray in front storage bin can be replaced with optional C-EBX kits for siren light control head options (sold separately)
• Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-218, sold separately), relocated required OEM USB media hub, port for 12V lighter plug, and optional cutout for Havis C-USB-3 dual port
• 14" available internal mounting space, 18" total mounting space in 9"W section
• Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
• Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-604 hub, Motorola speaker, and integrated cable management system
• CUP2-1004 Self-adjusting double cup holder to fit cups up to 3.5" in diameter
• CMX15600-08-1 Fuse block kit holds 8 standard automotive blade type fuses up to 30 AMPS (fuses not included)
• Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
• Filler plates and equipment brackets for 9"W section included to enclose mounting areas
• Made in the USA with a lifetime warranty
• Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
• 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
• GM USB part number: 13561801 GM wiring F harness part number: 86592838
• OEM USB block off plate included

PKG-VSX-1800-BLZR-PM-EV Specifications

Fits:    2024-2025 Chevrolet Blazer EV, fits all SS retail trim levels and PPV version
Dimensions:    53.16” L x 13.34” W x 16.25” H
Noncompatible:    C-EBX-MOT-1
Optional bracket:    C-PMX-A-SP printer slot cover for non-printer use
Compatible printers:    Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:    Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:    DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Gross weight:    46 lbs
