Havis Standard Package – 2024-2025 Chevrolet Blazer EV PPV VSX Console with Front Printer Mount Or Integrated Storage Bin for Tablet Docking Stations PKG-VSX-1800-BLZR-PM-EV-3

Havis Console PKG-VSX-1800-BLZR-PM-EV-3

Havis Standard Package and 2024-2025 Chevrolet Blazer EV PPV VSX Console with Front Printer Mount Or Integrated Storage Bin for Tablet Docking Stations

PKG-VSX-1800-BLZR-PM-EV-3 Features

  • Convenient package solution offers the essential elements for any installation

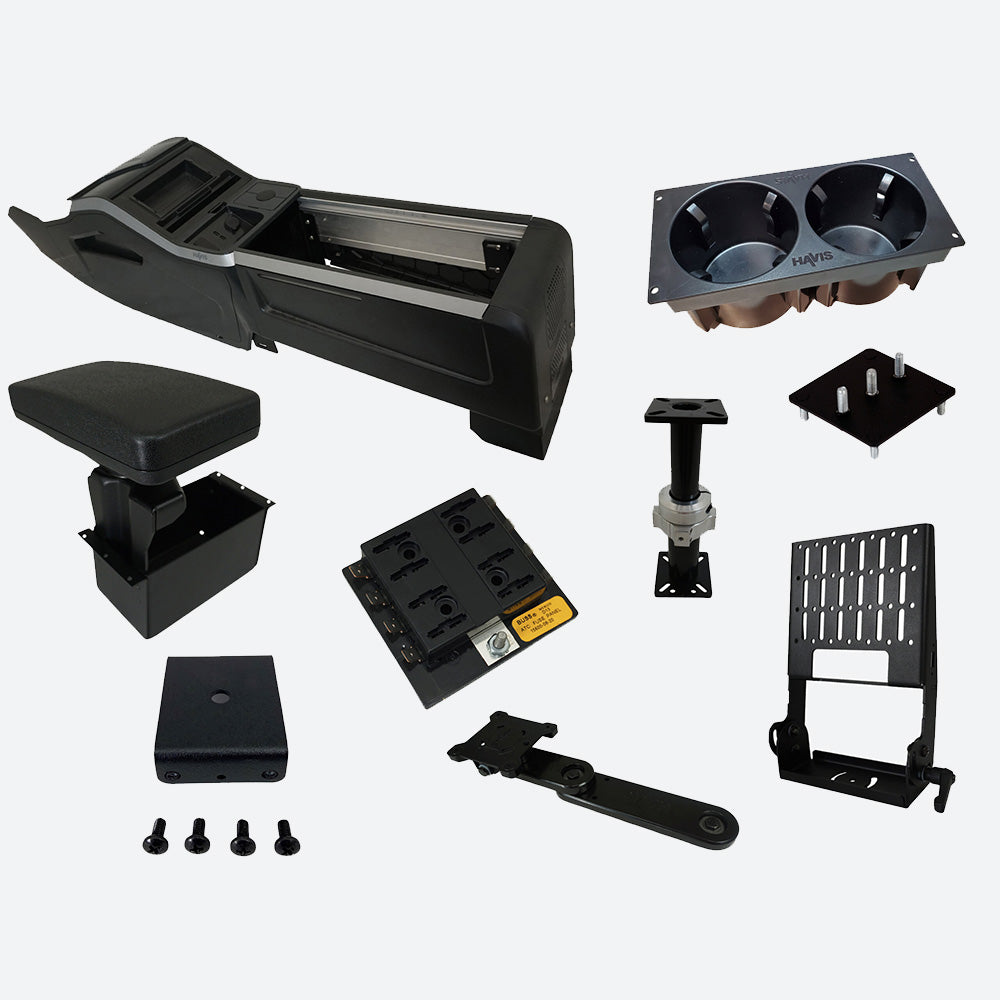

  • Package includes Havis C-VSX-1800-BLZR-PM-EV console, CUP2-1004, CMX15600-08-1, C-ARM-113, C-HDM-218, C-HDM-301, C-UMM-103, C-ADP-121, and MD-ARM-0603
  • Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
  • Heavy-duty steel floor-mounting structure provides rigid framework for console
  • Polycarbonate chassis mounts to steel frame to offer high degree of strength, impact resistance, and thermal performance
  • 16% lower weight than comparable steel consoles
  • Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
  • Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
  • If printer is not being used, leave pre-installed liner in place
  • Removable tray in front storage bin can be replaced with optional C-EBX kits for siren light control head options (sold separately)
  • Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-218, sold separately), relocated required OEM USB media hub, port for 12V lighter plug, and optional cutout for Havis C-USB-3 dual port
  • 10" available internal mounting space, 18" total mounting space in 9"W section
  • Storage pockets with provisions for dual USB & 12V outlet, removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-604 hub, Motorola speaker, and integrated cable management system
  • CUP2-1004 Self-adjusting double cup holder to fit cups up to 3.5" in diameter
  • CMX15600-08-1 Fuse block kit holds 8 standard automotive blade type fuses up to 30 AMPS (fuses not included)
  • Internal Mount flip-up armrest pad with accessory pocket providing more space to officers and their belt-mounted equipment
  • Mount your monitor and keyboard to the Heavy-duty pole with height adjust handle, computer monitor, keyboard mount and motion device pre-assembled package for optimal viewing
  • Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
  • Filler plates and equipment brackets for 9"W section included to enclose mounting areas
  • Made in the USA with a lifetime warranty
  • Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
  • 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
  • GM USB part number: 13561801 GM wiring F harness part number: 86592838
  • OEM USB block off plate included

PKG-VSX-1800-BLZR-PM-EV-3 Specifications

Fits:    2024-2025 Chevrolet Blazer EV, fits all SS retail trim levels and PPV version
Dimensions:    53.16” L x 13.34” W x 16.25” H
Noncompatible:    C-EBX-MOT-1
Optional bracket:    C-PMX-A-SP printer slot cover for non-printer use
Compatible printers:    Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:    Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:    DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Gross weight:    46 lbs
