Havis Wide VSX Console with Front Printer Mount, Cup Holder and Fuse Block for 2021-2024 Chevrolet Tahoe PKG-VSX-1800-TAH-PM

Havis Console PKG-VSX-1800-TAH-PM

Havis Package and Wide VSX Console with Front Printer Mount, Cup Holder and Fuse Block for 2021-2024 Chevrolet Tahoe PPV and SSV

PKG-VSX-1800-TAH-PM Features

• Convenient package solution offers the essential elements for any installation

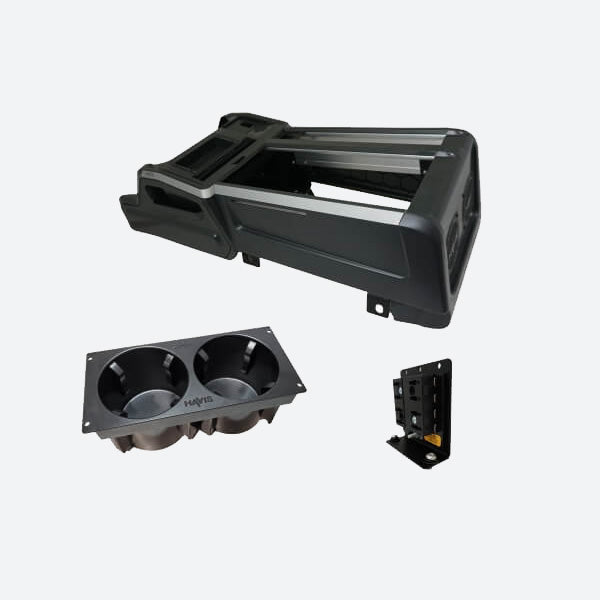

• Package includes Havis C-VSX-1800-TAH-PM console, CUP2-1004 fixed mount cup holder, and CMX15600-08-1 fuse block kit
• Integrated printer mount for Brother PocketJet printer stows safely inside the front of the VSX console and creates additional mounting space
• Supports both PocketJet 7 and PocketJet 8 printers (appropriate USB cable is required and sold separately)
• Innovative console design incorporates the strength of steel with a lightweight engineered polycarbonate
• 14" available internal mounting space, 18" total mounting space in 9"W section
• 3.3"W section includes 15" of total equipment mounting space and removable 3" bracket for relocating 110V outlet
• Removable tray in front bin can be replaced with optional C-EBX kits for siren light control head options (sold separately)
• Additional front section features include slot for holding driver's licenses or cards, recess for pen storage, optional internal pole mount (C-HDM-224, sold separately), relocated USB media hub, and port for 12V lighter plug
• Self-adjusts to fit cups up to 3.5" in diameter
• Holds 8 standard automotive blade type fuses up to 30 AMPS (not included)
• Storage pockets with provisions for dual USB & 12V outlet , removable access panels, and 8" nut track for side-mounted accessories on driver and passenger sides
• Internal features include equipment tray, mounting provisions for fuse block kits, CG-X, DS-DA-602 hub, dual Motorola speakers, and integrated cable management system.
• Filler plates and equipment brackets for 9"W and 3.3W sections included to enclose mounting areas

• Made in the USA with a lifetime warranty

PKG-VSX-1800-TAH-PM Specifications

Dimensions:    42.6" l x 16.8" w x 13.3" h
Compatible printers:    Brother PocketJet PJ-722, 723, 762, 763 & 773, PJ-822, PJ-823, PJ-862, PJ-863, and PJ-883 Model kits
Mounting:    Use with Brother PocketJet 7 and PocketJet 8 Series printers without battery, which have threaded inserts on printer used for mounting
Optional Cables:    DS-DA-340 Right-angle USB-C connector allows installation of PocketJet 8 Printer into existing Havis PocketJet 7 Printer mounts (sold separately)
GSM70141 Mini-USB cable used in Havis PocketJet Printer Mounts designed for earlier PocketJet 7 and PocketJet 6 (sold separately)
Chevrolet Tahoe:    fits 2021-2024 Chevrolet Tahoe PPV and SSV without OEM console
Chevrolet Suburban:    Fits 2021-2024 Chevrolet Suburban LS with 40-20-40 split bench front seat option
Equipment Mounting:    For vehicles equipped with OEM console C-VS-1100-GMC-2 is recommended for equipment mounting
Gross weight:    46 lbs
