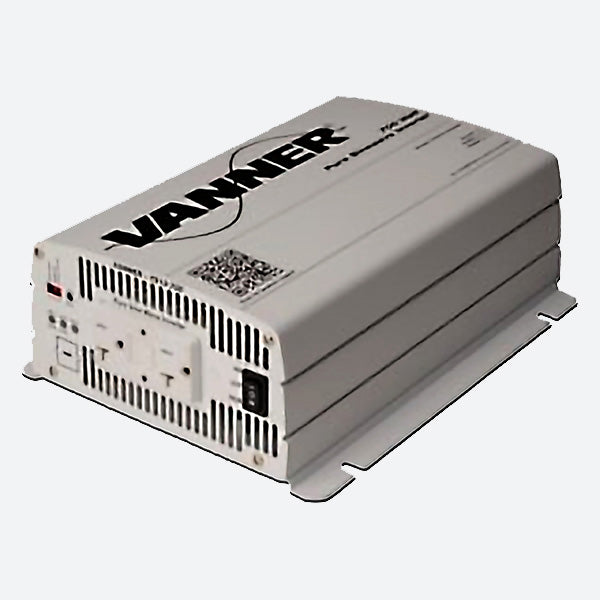

Havis Vanner TS Series Pure Sine Wave Power Inverter With 12VDC Input & 2000W AC Output TS12-2000

Havis Power Management TS12-2000

Havis Vanner TS Series Pure Sine Wave Power Inverter With 12VDC Input and 2000W AC Output

TS12-2000 Features

• Vanner’s rugged, reliable, and safe Vanner TS Series AC power inverters operate and protect equipment in the most extreme conditions
• Provides 2000W of continuous power and 3-second surge power up to 3000W
• DC-AC inverter system designed with advanced power electronic and microprocessor technology
• TruWave technology generates pure sine wave AC power to operate and protect the most sensitive electronic devices in the most extreme conditions.
• Efficiency rating of 90% to 93% provides longer inverter engine-off run time from batteries and lower battery discharge
• DC input range of 10.5Vdc to 16.5Vdc offers the widest DC input range available and works with all OEM multi-voltage and multi-mode alternators
• Operating temperature range of -20C to +40C (-4F to +104F) for reliability in any climate
• Three seconds of surge time offers ample surge time to start and operate the most demanding tools and equipment
• Easy installation via a low profile housing and integrated mounting features for in-cab and behind the seat applications
• All-metal body and chassis ensures safe operation and secure mounting regardless of orientation

TS12-2000 Specifications

DC Input:    12Vdc
DC Voltage Range:    10.5V to 16.5V
Operating Temperature:    -4F to 104F (-20C to 40C)
Surge Rating:    150% of continuous power for 3 seconds
Dimensions:    17.1”L x 9.8”W x 3.5”H
Product Weight:    12.0 lbs
EMC Standards:    FCC Class A
Efficiency:    90% to 93%
Standby Recovery:    5 seconds
Gross weight:    16 lbs
