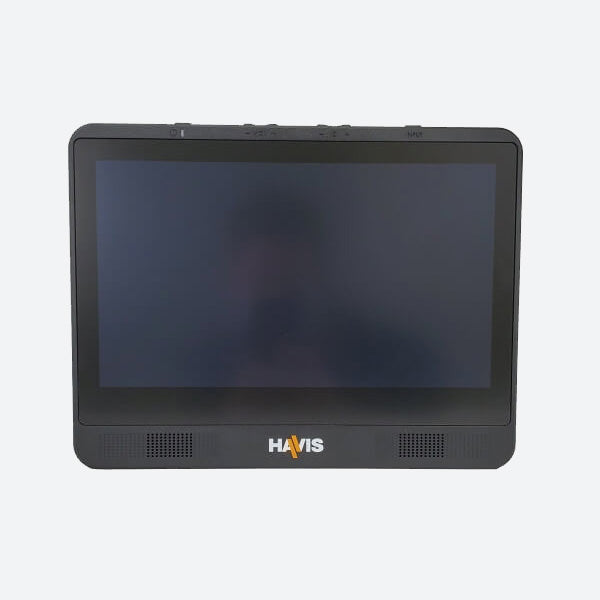

Havis 12.5″ Capacitive Touch Screen Display with Integrated Hub TSD-201

Havis Display TSD-201

Havis 12.5-in Capacitive Touch Screen Display with Integrated Hub

TSD-201 Features

• Fully rugged Touch Screen Display solution for all mobile office workers
• Integrated DeX technology - no hub required
• On-board I/O includes gigabit Ethernet, HDMI 1.4, superspeed USB-C and multiple USB 3.1 type a ports
• 10-point capacitive Touch Screen with gorilla glass
• Two power delivery (pd) options via USB type-C (5V@3A, 9V@2A)
• 1200 nits of brightness
• Pair of 4W front-facing stereo speakers
• Input selector switch to toggle between USB-C and HDMI
• Indicator lights communicate when TSD-201 is powered up and when a device is connected.
• Night mode offers red monochrome for reduced eye strain
• Sleep mode equipped to reduce power consumption
• Power button allows screen to be blacked out for privacy without full reboot

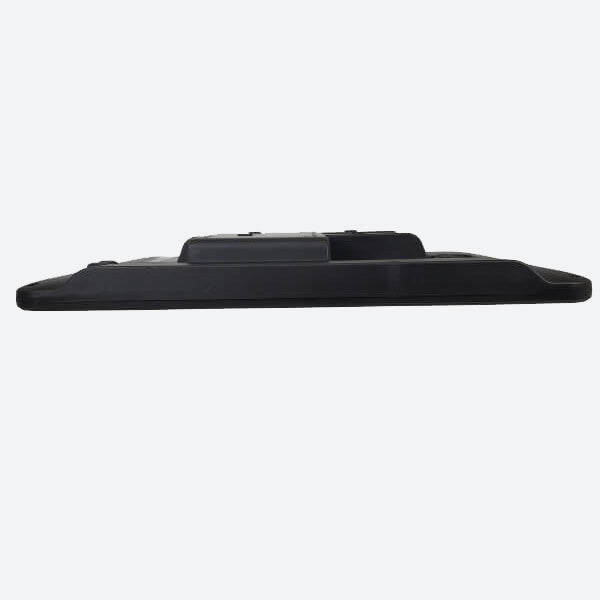

• Side and bottom-facing ports with integrated strain relieving
• Top-mounted buttons allow easy access to Touch Screen controls
• Complete your set up with a KB-108 keyboard or other Havis KB-100 Series products
• USB-C port supports device mirroring in equipped phones, tablets, and laptops

TSD-201 Specifications

Glass:    anti-glare
Contrast ratio:    700:1
Resolution:    1920 x 1080
Brightness:    1200 nits
Display color:    16.7M
Aspect ratio:    16:9
Viewing angle:    89 degrees max
Active area:    276.48mm x 155.52mm
Power:    11-16 VDC, 12 VDC output
OSD Buttons:    Brightness +/-, volume +/-, power, input selector

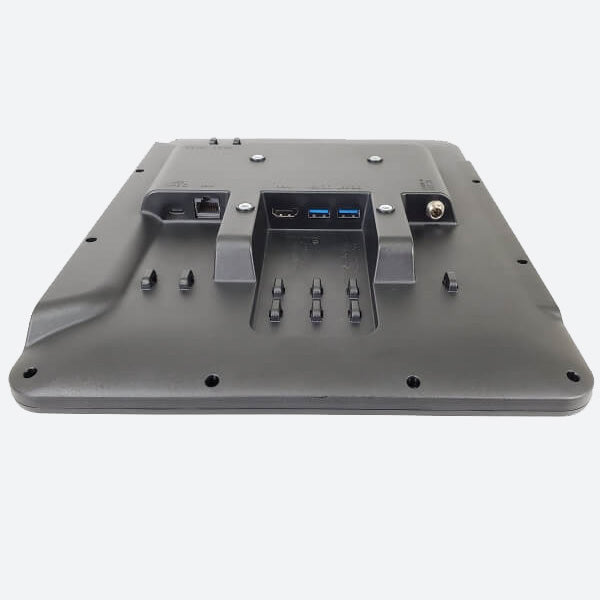

I/O:    (1) DC power in, (1) gigabit Ethernet, (1) HDMI 1.4, (1) USB-C, (4) USB 3.1 type a
Platforms supported:    Win7, Win8, Win10, Android, and ios (tested)
Response time:    25ms (typical)
Temperature range:    operating: -29C to 63C ( -20F to 140F); storage: -60C to 70C (-40 F to 158F)
Speakers:    (2) 4W stereo (front facing)
Mounting capability:    VESA 75
Touch Screen weight:    2.66 lbs. (1.21 kg)
Touch Screen dimensions:    9.58" (24.3 cm) h x 12.44" (31.6 cm) w x 1.51" (3.84cm) d
Vibration Testing:    MIL-STD 810G 514.5
Environmental testing:    hot/cold operational & storage
Crash test:    SAE J1455 30mph Crash Testing
FCC, CE, RoHS, reach
1 year limited warranty
Gross weight:    4 lbs
