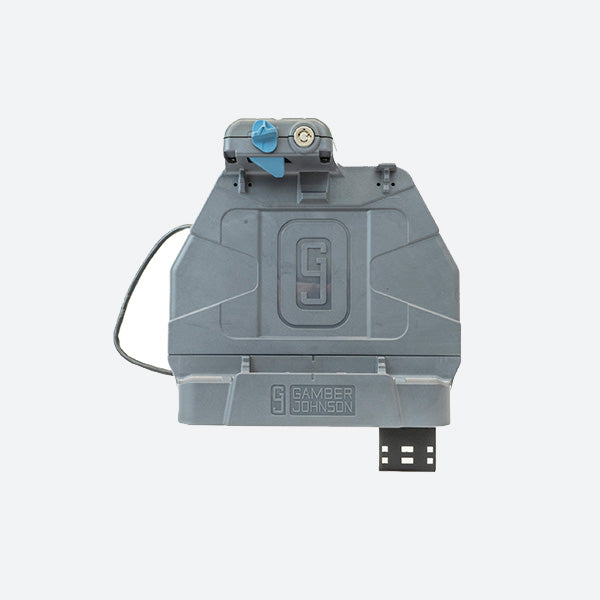

Gamber Johnson Zebra ET4X 8 SLIM Dual USB Dock (2.5mm DC Power Jack) 7160-1801-04
Gamber Johnson Dock 7160-1801-04
Zebra ET4X 8 SLIM Dual USB Docking Station with 2.5mm DC Power Jack. Gamber-Johnson’s new vehicle docking station; with dual powered USBs for added productivity. Easily connect this docking station to an external power adapter using the 2.5mm DC Power Jack.
7160-1801-04 Features
- Dual USB ports; 1.5A for each port for connecting peripheral devices
- Zebra’s rugged frame is required in order to work with docking station
- 10-40V power input range to support a wide range of mobile applications
- All features on tablet are functional while the tablet is safely docked
- Simple, one-handed docking and release operation
- Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.
- Push latch button up with your thumb then remove the tablet from the docking station.
- POGO pin connector and internal power supply provides power to charge the Zebra tablet while docked
- Barrel Key lock for theft deterrence
- VESA 75mm mounting pattern; compatible with Zirkona mounting products
- Can be mounted on a flat vertical surface
- Composite design to reduce overall weight
Kit Includes:
- Zebra ET4X 8” Dual USB Docking Station (2.5mm DC Power Jack)
- Mounting Hardware
- Installation Instructions
7160-1801-04 Specifications
Weight
1.3 lbs / 0.59 kg
Height
9 in / 22.86 cm
Width
7.75 in / 19.69 cm
Depth
2.8 in / 7.11 cm
Port Replicators:
(2) USB 2.0 - each with 1.5A power
Power Supply:
NOT included. Use power supplies:
LIND 12-32V Isolated Power Adapter (7300-0466)
LIND 20-60V Isolated Power Adapter (7300-0467)
LIND 72-110V Isolated Power Adapter (7300-0418)
Lind AC-12V Material Handling Power Adapter (7300-0472)
Compatibility:
Zebra's rugged frame is required in order to work with docking station
