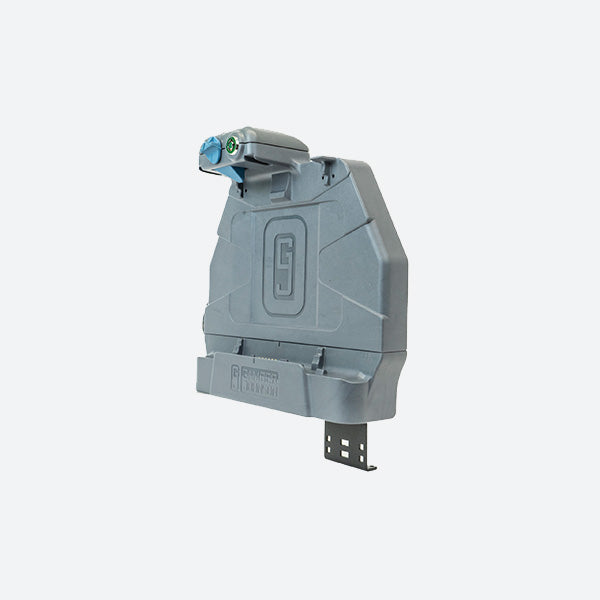

Gamber Johnson Zebra ET4X 8 in. SLIM Full Port Replication Dock 7160-1801-20
Gamber Johnson Dock 7160-1801-20
Zebra ET4X 8 inch SLIM Full Port Replicating Docking Station. Gamber-Johnson’s new Zebra vehicle docking station, with dual powered USBs, Serial, and ethernet port replication.
7160-1801-20 Features
- Zebra’s rugged frame is required in order to work with docking station
- All features on tablet are functional while the tablet is safely docked
- 12V power input required
- Simple, one-handed docking and release operation:
- Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.
- Push latch button up with your thumb then remove the tablet from the docking station.
- POGO pin connector provides power to charge the Zebra tablet while docked
- Barrel Key lock for theft deterrence
- VESA 75mm mounting pattern; compatible with Zirkona mounting products
- Can be mounted on a flat vertical surface
- Composite design to reduce overall weight
Kit Includes:
- Zebra ET4X 8” SLIM Full Port Replication Docking Station
- Mounting Hardware
7160-1801-20 Specifications
Weight
1.3 lbs / 0.59 kg
Height
9 in / 22.86 cm
Width
7.75 in / 19.69 cm
Depth
2.8 in / 7.11 cm

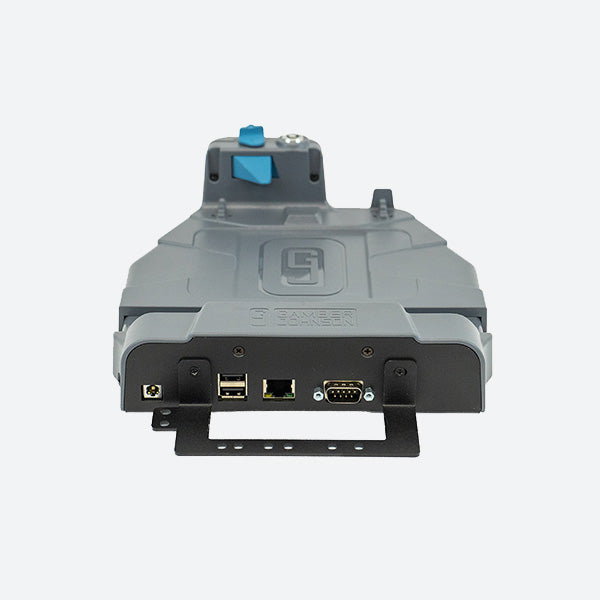

Port Replicators:
(2) USB 2.0
(1) Serial Port
(1) Ethernet Port
Antenna Pass-through:
No RF
Power Supply:
None, use one of the following:
Lind 11-16V Automobile Power Adapter (7300-0415)
LIND 12-32V Isolated Power Adapter (7300-0466)
LIND 20-60V Isolated Power Adapter (7300-0467)
LIND 72-110V Isolated Power Adapter (7300-0418)
Lind AC-12V Material Handling Power Adapter (7300-0472)
Compatibility:

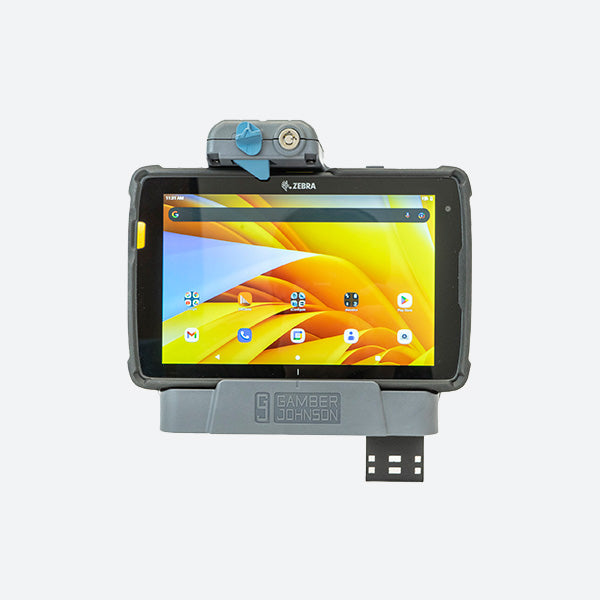

Zebra ET4X 8" Rugged Tablet (Zebra's rugged frame is required in order to work with docking station)
