Gamber-Johnson

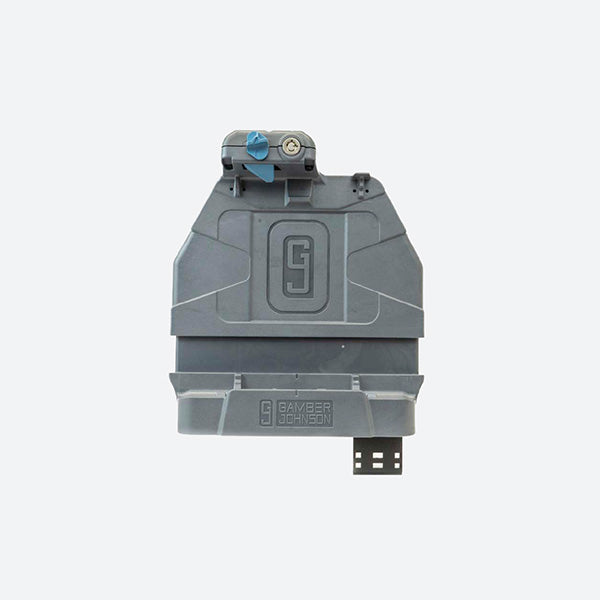

Gamber Johnson Zebra ET4X 10 SLIM Dual USB Dock 7160-1807-04

Gamber Johnson Dock 7160-1807-04

Zebra ET4X 10 SLIM Dual USB Docking Station with 2.5mm DC Power Jack. Easily connect this Gamber Johnson docking station to an external power adapter using the 2.5mm DC Power Jack. Each powered USB port provides 1.5A; strong enough to power a long-range scanner and a printer or other peripheral.

7160-1807-04 Features

  • Dual USB ports; 1.5A for each port for connecting peripheral devices
  • Zebra’s rugged frame is required in order to work with docking station
  • 10-40V power input range to support a wide range of mobile applications
  • All features on tablet are functional while the tablet is safely docked
  • Simple, one-handed docking and release operation
    • Insert bottom of Zebra tablet into the docking station and push top of the tablet in until the lock engages.
    • Push latch button up with your thumb then remove the tablet from the docking station.
  • POGO pin connector and internal power supply provides power to charge the Zebra tablet while docked
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products
  • Can be mounted on a flat vertical surface
  • Composite design to reduce overall weight

Kit Includes:

  • Zebra ET4X 10” Dual USB Docking Station (2.5mm DC Power Jack)
  • Mounting Hardware
  • Installation Instructions

7160-1807-04 Specifications

Weight

1.3 lbs / 0.59 kg

Height

10.1 in / 25.65 cm

Width

7.75 in / 19.69 cm

Depth

2.8 in / 7.11 cm

Port Replicators:

(2) USB 2.0 - each with 1.5A power

Power Supply:

NOT included. Use power adapters:

LIND 12-32V Isolated Power Adapter (7300-0466)
LIND 20-60V Isolated Power Adapter (7300-0467)
LIND 72-110V Isolated Power Adapter (7300-0418)
Lind AC-12V Material Handling Power Adapter (7300-0472)

$225.37 USD
$225.37 USD
Shipping calculated at checkout.
