Gamber-Johnson

Gamber Johnson Zebra ET50/51 & 55/56 Dock w/ Lind 20-60 VDC Isolated Power Supply 7170-0521

Gamber Johnson Dock 7170-0521

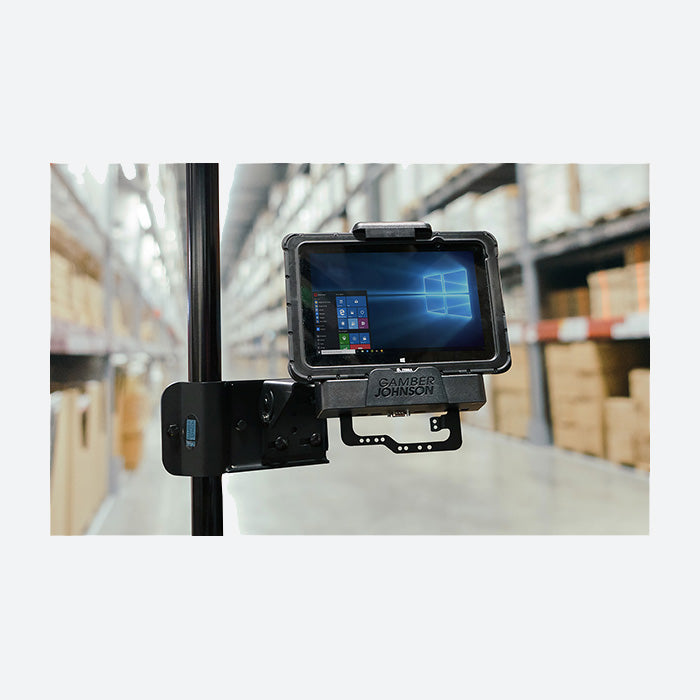

Kit: Zebra ET50/51 & 55/56 10 inch Docking Station with Lind 20-60 VDC Isolated Power Supply. The tablet’s scanner, hand strap, battery bay, and stylus all work with the docking station. This dock features a powered RS232 port to connect hand-held or mobile computers, scales, scanner guns, or printers. Additional ports include Ethernet, USB 3.0, HDMI, and power input. This kit includes a LIND 20-60VDC isolated power adapter.

7170-0521 Features

Features:

  • Kit includes:
    • Docking station (item no. 7160-0860-00)
    • Full port replication
    • 20-60 VDC power supply by Lind Designed and tested for MIL-STD 810G specifications
  • Accommodates expansion back of the ET50/51 55/56 to easily add accessories like a scanner/hand strap, battery bay, or stylus
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Dual latch/locks provide stability and docking connectivity
  • Guide pins prevent damage to the docking connection when docking the tablet
  • VESA 75mm mounting pattern
  • Steel and composite design for reduced weight
  • Rugged construction for long-term durability

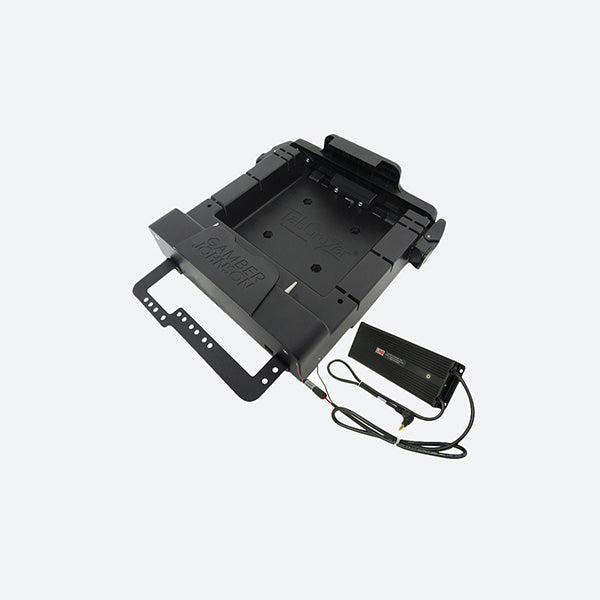

Kit Includes:

  • Docking station (item no. 7160-0860-00)
  • 20-60 VDC power supply by Lind Designed and tested for MIL-STD 810G specifications

7170-0521 Specifications

Weight

2.6 lbs / 1.18 kg

Height

10.0" / 25.4 cm

Width

10.0" / 25.4 cm

Depth

3.35" / 8.5 cm

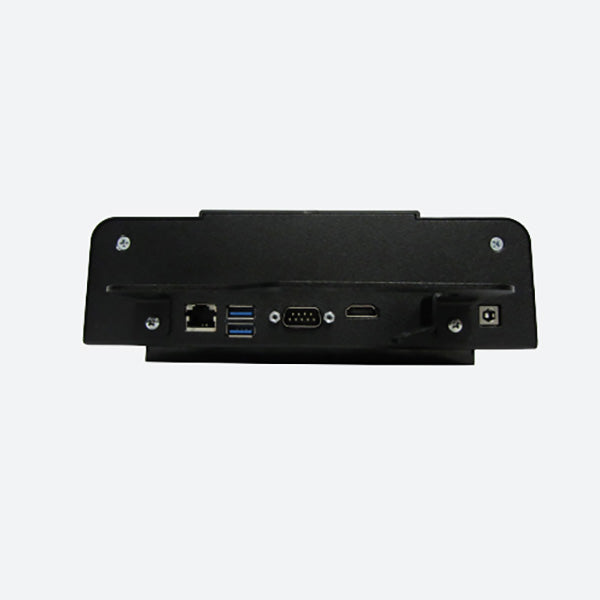

Port Replicators:

RS232 serial power on pin 9 - 1 amp
HDMI 19 pin
Power input
USB (1.1A charging)
USB 3.0
Ethernet RJ45 (1)

Antenna Pass-through:

No RF

Model Compatibility:

Zebra ET50/51/55/56

$864.42 USD
$864.42 USD
Shipping calculated at checkout.
