Gamber-Johnson

Gamber Johnson Zebra ET50/51 & 55/56 Dock w/ 12-32 VDC Isolated Power Supply 7170-0522

Gamber Johnson Dock 7170-0522

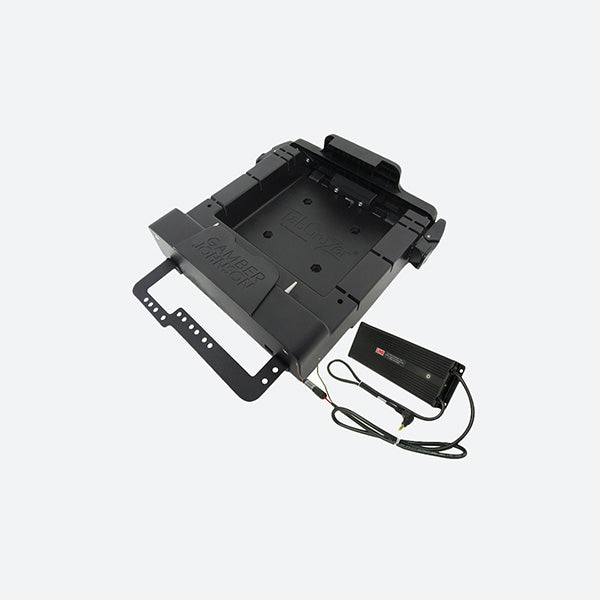

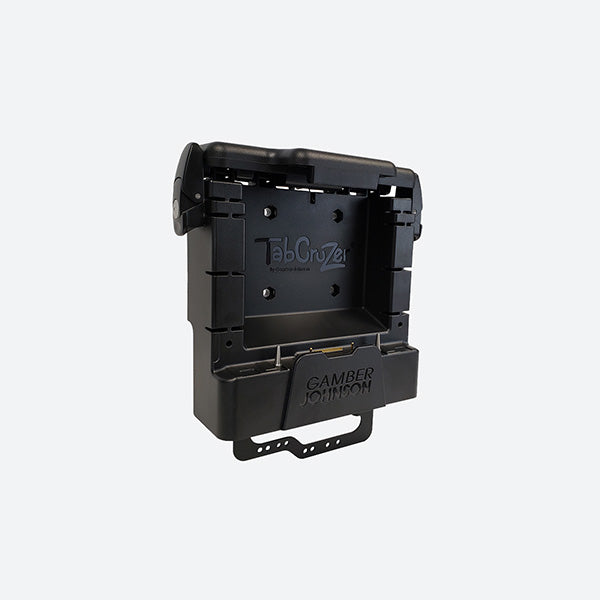

Kit: Zebra ET50/51 & 55/56 8 inch Docking Station with 12-32 VDC Isolated Power Supply. The tablet’s scanner, hand strap, battery bay, and stylus all work with the docking station. This dock features a powered RS232 port to connect hand-held or mobile computers, scales, scanner guns, or printers. Additional ports include Ethernet, USB 3.0, and power input. This kit includes a LIND 12-32VDC isolated power adapter.

7170-0522 Features

Features:

  • Kit includes:
    • Docking station (7160-0861-00)
    • 12-32 VDC power supply by Lind (16411)
  • Designed and tested for MIL-STD 810G specifications
  • Compatible with Zebra enterprise tablets with the rugged frame option
  • Accommodates expansion back of the ET50/51 55/56 to easily add accessories like a scanner/hand strap, battery bay, or stylus
  • Front camera on ET5X accessible when the tablet is in the docking station
  • Compatible with Windows or Android operating systems
  • Dual latch/locks provide stability and docking connectivity
  • Guide pins prevent damage to the docking connection when docking the tablet
  • VESA 75mm mounting pattern
  • Steel and composite design for reduced weight
  • Rugged construction for long-term durability

Kit Includes:

  • Docking station (7160-0861-00)
  • 12-32 VDC power supply by Lind (16411)

7170-0522 Specifications

Weight

2.6 lbs / 1.18 kg

Height

10.0 in / 25.4 cm

Width

9.0 in / 22.9 cm

Depth

3.35 in / 8.5 cm

Port Replicators:

RS232 serial power on pin 9 - 1 amp
Power input
USB 1.1A charging
USB 3.0
Ethernet RJ45 (1)

Antenna Pass-through:

No RF

Model Compatibility:

Zebra ET50/51/55/56

$840.67 USD
$840.67 USD
Shipping calculated at checkout.
