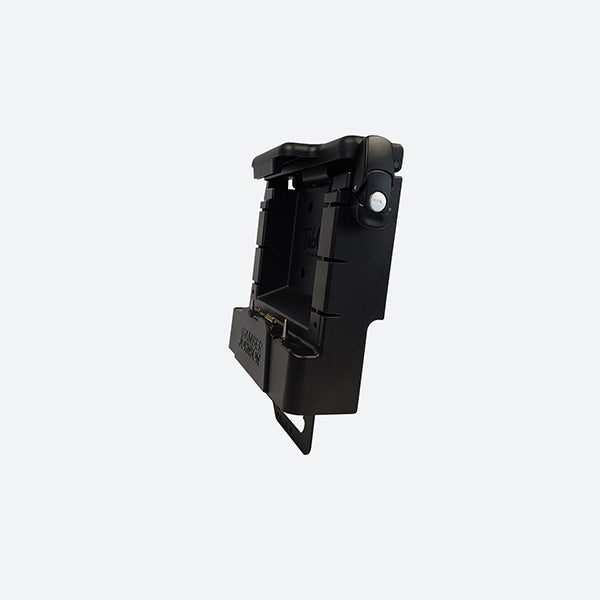

Gamber Johnson Zebra ET50/51/55/56 10 Dock w/ Lind Auto Power Supply 7170-0528

Gamber Johnson Dock 7170-0528

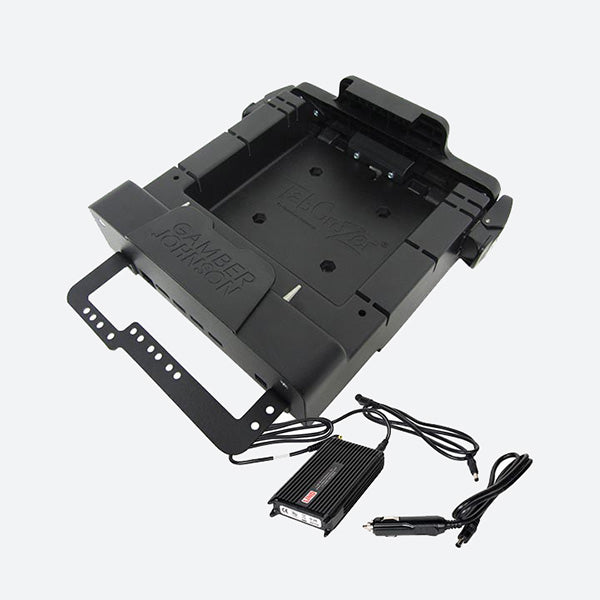

Kit: Zebra ET50/51/55/56 10 Docking Station with Lind Auto Power Supply. The tablet’s scanner, hand strap, battery bay, and stylus all work with the docking station. This dock features a powered RS232 port to connect hand-held or mobile computers, scales, scanner guns, or printers. Additional ports include Ethernet, USB 3.0, and power input. This kit includes a LIND auto power adapter.

• Kit includes:
  • Docking station (item no. 7160-0860-00)
  • Full port replication
  • Auto power supply by Lind
• Designed and tested for MIL-STD 810G specifications
• Docking stations are compatible with Zebra Enterprise tablets with the “rugged frame” option
• Docking station accommodates the expansion back of the ET50/51 55/56 to easily add accessories (scanner/ hand strap and optional battery bay or hand strap and optional battery bay)
• Integrated front camera on the ET5X is accessible when the tablet is in the docking station
• Compatible with either Windows or Android operation systems on the ET50/51 55/56
• Dual latch/locks provide added stability and docking connectivity
• Downward-facing I/O ports; cable strain relief system for easy cable management
• POGO pin docking connector for positive docking connectivity
• Guide pins prevent damage to the docking connector when docking the tablet
• VESA 75mm mounting pattern
• Steel and Composite design for reduced overall weight
• Rugged construction for long-term durability

Kit Includes:

• Docking station (item no. 7160-0860-00)
• Auto power supply by Lind

Weight

2.26 lbs. / 1.18 kg

Height

10.0 in / 25.4 cm

Width

10.0 in / 25.4 cm

Depth

3.35 in / 8.5 cm

Port Replicators:

RS232 serial power on pin 9 - 1 amp
Power input
USB (1.1A charging)
USB 3.0
Ethernet RJ45 (1)

Antenna Pass-through:

No RF

Model Compatibility:

Zebra ET50/51/55/56
