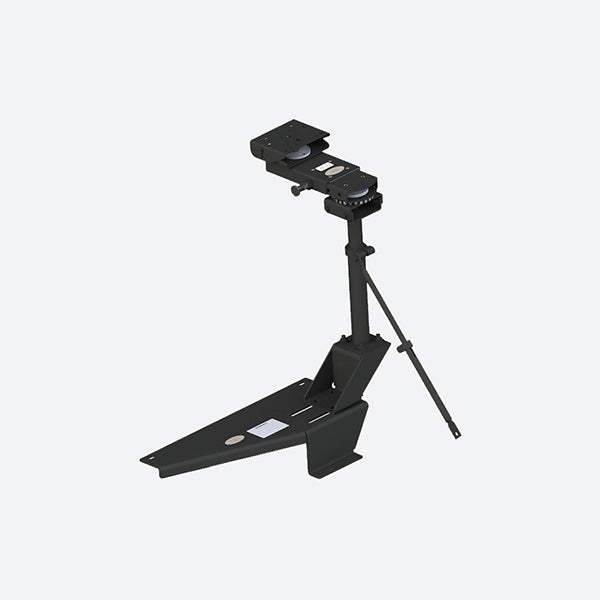

Gamber Johnson 2019+ Chevrolet GMC Truck and Full-Size SUV Pedestal w Mongoose 9 Locking Slide Arm w/ Short Clevis 7170-0783-02

Gamber Johnson Full Mount 7170-0783-02

Gamber Johnson passenger side pedestal mounting kit for 2019+ Chevrolet and GMC Truck and Full-Size SUV. Mounting kit comes complete with Mongoose 9 inch locking slide arm motion attachment with short clevis and support brace to decrease vibration on mounted computer.

7170-0783-02 Features

• Vehicle Base (7160-1332) Vehicle Base is a no-drill solution and attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
• Lower Tube (DS-LOWER-9) The Lower Tube provides vertical clearance over the center console or the seat.
• Upper Pole (7160-0178) Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
• Mongoose - 9 inch Locking Slide Arm with Short Clevis (7160-0928) Locking Slide Arm can rotate around 360° with locking points every 15°. Slide Arm can extend out from 9" to 13" from center pole and locks automatically in the retracted 9" position. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°. Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
• Support Brace (7160-0231) Support Brace provides additional mount system support in rugged driving conditions and increases mounting system rigidity.

Vehicle Compatibility:

7170-0783-02 Specifications

Weight

26 lbs / 11.79 kg

Height

31.7 in / 80.52 cm

Width

26.1 in / 66.29 cm

Depth

29.4 in / 74.68 cm

Compatible Vehicles:

2019-Current Silverado/Sierra 1500
2020-Current Silverado/Sierra 2500-3500- will not work with diesel PTO
2020+ Chevrolet Silverado/GMC Sierra HD series
