Gamber Johnson Zebra ET51/56 10 SLIM Dock w 70-110 VDC Power Adapter 7170-0874-70

Gamber Johnson Dock 7170-0874-70

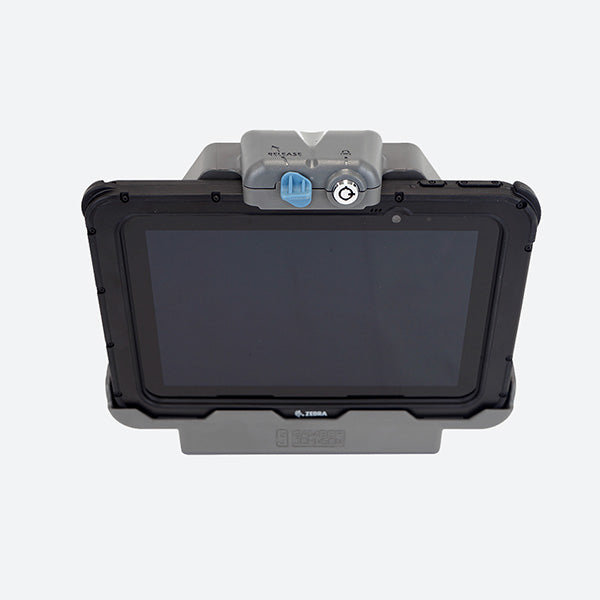

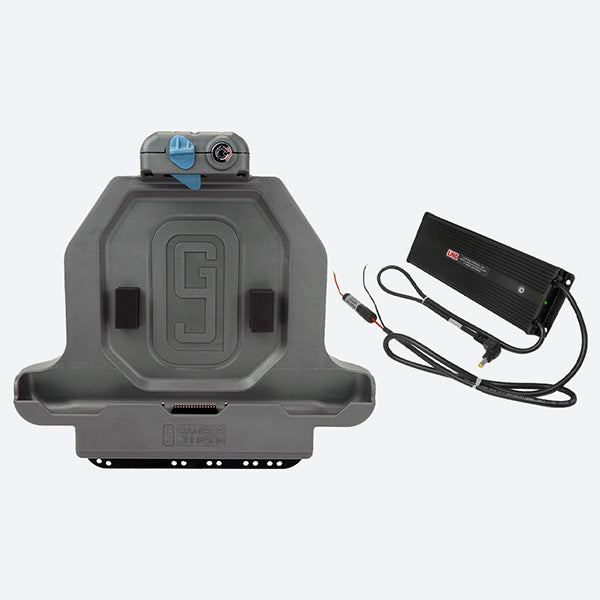

Zebra ET51/56 10 SLIM Port Replication Docking Station w/External LIND 70-110 VDC Isolated Power Adapter. Gamber-Johnson’s Zebra ET51/56 10? SLIM Port Replication docking station provides a full range of I/O ports to connect peripherals. This dock features a complete cable restraint-system and the front-facing release latch button makes one-handed docking/release very easy. This kit includes a LIND isolated material handling power adapter.

7170-0874-70 Features

• Designed for the Zebra ET51/56 10" rugged tablet computer with rugged frame
• This dock does not accommodate ET51/56 accessories
• Front camera on ET5X accessible when the tablet is in the docking station
• Compatible with Windows or Android operating systems
• Access to all control buttons and ports while the tablet is safely docked
• POGO pin connector provides power to charge the Zebra tablet while docked
• Bottom-facing I/O ports; integrated cable restraint/cable management system
• Guide pins prevent damage to the docking connection when docking the tablet
• Composite/aluminum design for reduced weight and extended durability
• Designed with rounded edges to enhance personal safety
• Keyed lock for security and theft deterrence
• Forward facing docking latch/release for easy one-handed operation:
  • Insert bottom of Zebra tablet into the docking station and push top of the tablet until the lock engages
  • To remove; lift latch to disengage and pull computer out of docking station
• VESA 75 mm and AMPS mounting patterns; compatible with Gamber-Johnson's Zirkona mounting products

7170-0874-70 Specifications

Weight

2.4 lbs

Height

11.05 in

Width

11.72 in

Depth

3.06 in

Port Replicators:

Zebra Certified Electronics USB 3.0 (2) - 9 pin (900mA) RS232 Serial (1) - Power on pin 9 (825mA) Ethernet (1) - RJ45 (322 mb/s) Power Input: 12VDC

Power Supply:

Yes - LIND isolated material handling power adapter; 70-110 VDC input range; 12 VDC output voltage; 3.5 Amps output current with bare wire lead (7300-0418)
