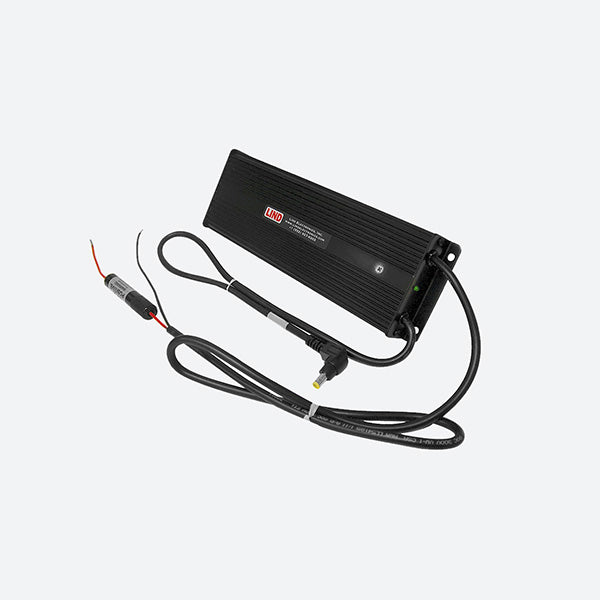

Gamber Johnson Lind 72-110V Material Handling Power Adapter for Panasonic 7300-0417

Gamber Johnson Power Adapter 7300-0417

Lind 72-110V Material Handling Isolated Power Adapter for Panasonic TOUGHBOOK. Lind 72-110V isolated power adapter provides regulated power to the docking stations an cradles for the Panasonic Toughbook CF-18, CF-19, CF-20, FZ-N1 and Toughpad FZ-A2, FZ-G1, FZ-M1, FZ-B2 and FZ-E1/X1. The rugged design of the Lind power adapters makes them ideally suited for use in harsh mobile environments. Formerly Item No. 16514

7300-0417 Features

• Full continuous rated power output.
• Sealed and potted in aluminum extrusions for the harshest operating environments.
• Input voltage: 72 to 110 Vdc
• Output voltage: 15.0 Vdc
• Output current: 5.5 amps (max)
• Isolated voltage: 2121 Vdc input to output (Output tied to Chassis)
• Operating temp =  -4 to 104 deg. F  (-20 to 40 deg. C)

7300-0417 Specifications

Weight

2.2 lbs / 1.0 kg

Height

1.15 in / 2.92 cm

Width

9.3 in / 23.6 cm

Depth

3.0 in / 7.62 cm

Compatible Docking Stations/Cradles:

Panasonic Toughpad FZ-G1
Panasonic Toughpad FZ-M1/B2
Panasonic Toughpad FZ-X1/E1
Panasonic Toughbook N1
Panasonic Toughbook 20
