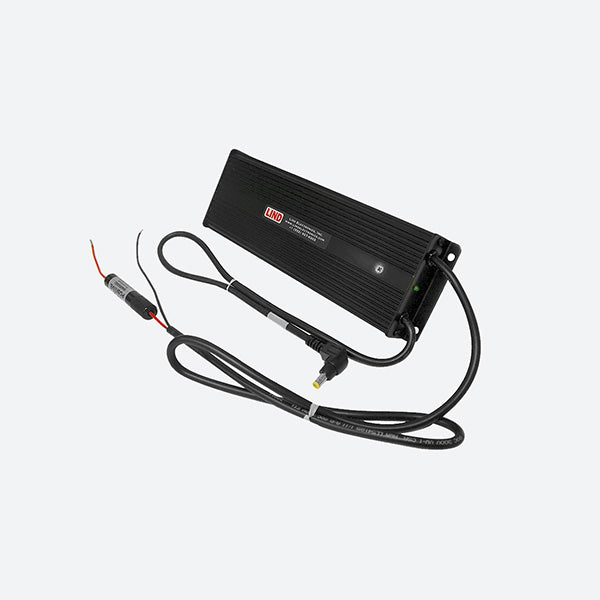

Gamber Johnson Lind 12-32V Material Handling Power Adapter for Panasonic 7300-0464

Gamber Johnson Power Adapter 7300-0464

Lind 12-32V Material Handling Isolated Power Adapter for Panasonic TOUGHBOOK. The Lind 12-32V isolated power adapter provides regulated power to docking stations and cradles for the Panasonic Toughbook 18/19/20, and Toughpad B2, E1, G1, M1 and X1. The rugged design of the Lind power adapters makes them ideally suited for use in harsh mobile environments. Formerly Item No. 15202

7300-0464 Features

• Full continuous rated power output
• Sealed and potted in aluminum extrusions for the harshest operating environments
• Input Voltage: 12 to 32 V
• DC Output Voltage: 15.6 V
• DC Output Current: 5.5 amps (max)
• Isolated voltage: 500 Vdc input-output 500
• Vdc input - chassis 100 Vdc output - chassis.
• Operating temp =  -4 to 104 deg. F  (-20 to 40 deg. C)

7300-0464 Specifications

Weight

1.56 lbs / 0.52 kg

Height

1.15 in / 2.92 cm

Width

9.3 in / 23.6 cm

Depth

3.0 in / 7.62 cm

Compatible Docking Stations/Cradles:

Panasonic Toughpad FZ-G1
Panasonic Toughbook 18/19
Panasonic Toughbook 20
Panasonic Toughpad FZ-M1/B2
Panasonic Toughpad FZ-A2
Panasonic Toughpad FZ-X1/E1
Panasonic Toughbook N1
