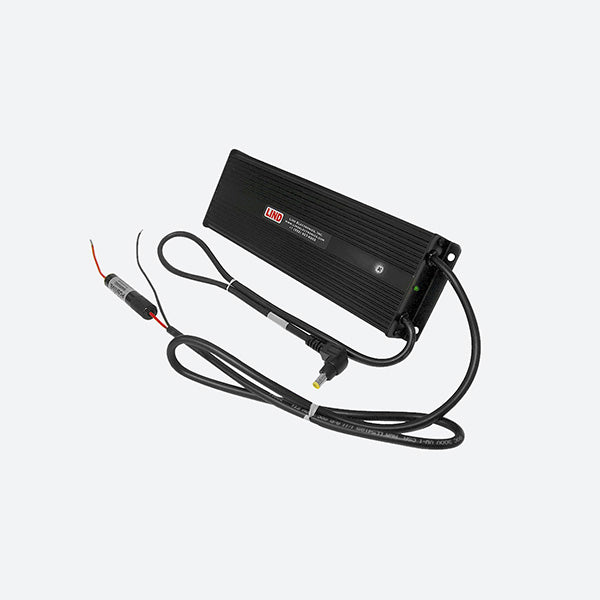

Gamber Johnson Lind 20-60V Material Handling Power Adapter for Panasonic 7300-0465

Gamber Johnson Power Adapter 7300-0465

Lind 20-60V Material Handling Isolated Power Adapter for Panasonic TOUGHBOOK. The Lind 20-60V isolated power adapter provides regulated power to the docking stations and/or cradles for the Panasonic Toughbook CF-18, CF-19 and CF-20, and Toughpad FZ-G1, FZ-M1, FZ-B2 and FZ-E1/X1. The rugged design of the Lind power adapters makes them ideally suited for use in harsh mobile environments. Formerly Item No. 15203

7300-0465 Features

• Full continuous rated power output
• Sealed and potted in aluminum extrusions for the harshest operating environments
• Input Voltage: 20 to 60 VDC
• Output Voltage: 15.6 VDC
• Output Current: 5.5 amps (max)
• Isolation Voltage: Input to Output
• Isolated 500 VDC Input - Output 500 VDC Input - Chassis 100 VDC Output - Chassis
• Operating temp =  -4 to 104 deg. F  (-20 to 40 deg. C)

7300-0465 Specifications

Weight

1.56 lbs / 0.52kg

Height

1.15 in / 2.92 cm

Width

9.3 in / 23.6 cm

Depth

3.0 in / 7.62 cm

Compatible Docking Stations/Cradles:

Panasonic Toughpad FZ-G1
Panasonic Toughpad FZ-M1/B2
Panasonic Toughpad FZ-A2
Panasonic Toughpad FZ-N1
Panasonic Toughbook CF-18/19
Panasonic Toughbook CF-20
