Gamber Johnson iKey Small-Footprint Industrial Keyboard (DP-88) 7300-0497

Gamber Johnson Keyboard 7300-0497

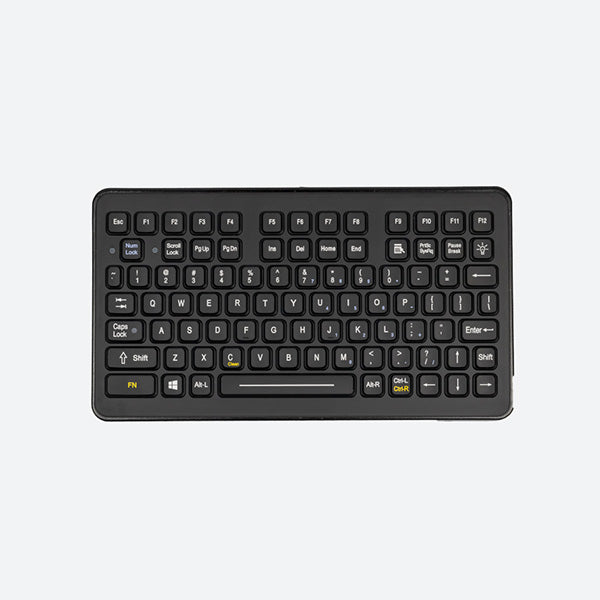

Gamber Johnson iKey branded small footprint industrial keyboard (ikey model number DP-88.) The DP-88 is a small-footprint keyboard by iKey that meets harsh use standards. It has 88 full-size keys with embedded notebook key functions.

7300-0497 Features

• 12 Function Keys
• 88-Key Functionality
• Lightweight ABS Polycarbonate Case
• Mounting Holes
• USB and PS/2 configurations available

7300-0497 Specifications

Weight

2 lbs

Height

1.86"

Width

11.40"

Depth

6.30"

Testing Specifications:

CERTIFICATIONS: NEMA 4X, UL60950, FCC Part 15 Class B, IP65
SHOCK: 3x11 ms pulses of 50g on each of 3 axes
CABLE LENGTH: 4 ft coiled (1.2m)

KEY SWITCH

MATERIAL: Industrial silicone rubber
LIFE: 10 million cycles
TRAVEL: 0.055 in. (1.4 mm)
ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/- 30g)
FEEDBACK: Tactile with mechanical snap

VIBRATION

POWER SPECTRAL DENSITY: 0.04g/Hz
FREQUENCY RANGE: 20Hz - 2 kHz
DURATION OF TEST PER AXIS: 3 hours

POWER

PS2: KEYBOARD: 50mA@5V (from Keyboard port)
USB: 50mA@5V (from CPU port)

COMPATIBILITY

PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS
TEMPERATURE RANGE
STORAGE: -40C to +90C (-40F to +194F)
OPERATING: -40C to +70C (-40F to +158F)
WARRANTY: 1 Year Limited Warranty
HUMIDITY: 100% Humidity Resistant
