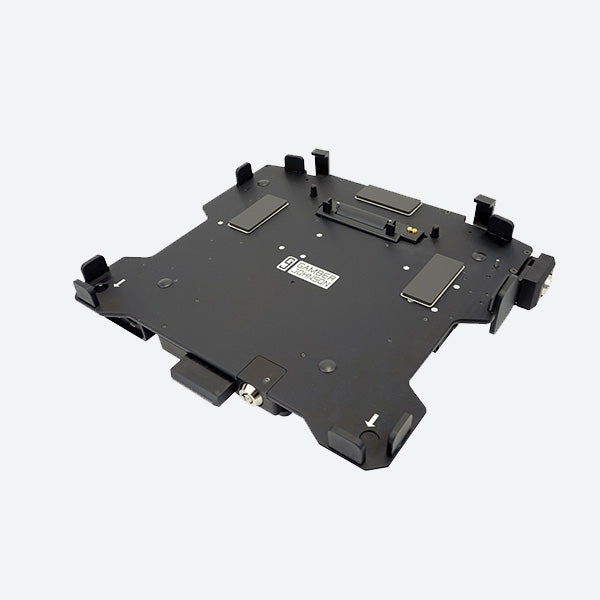

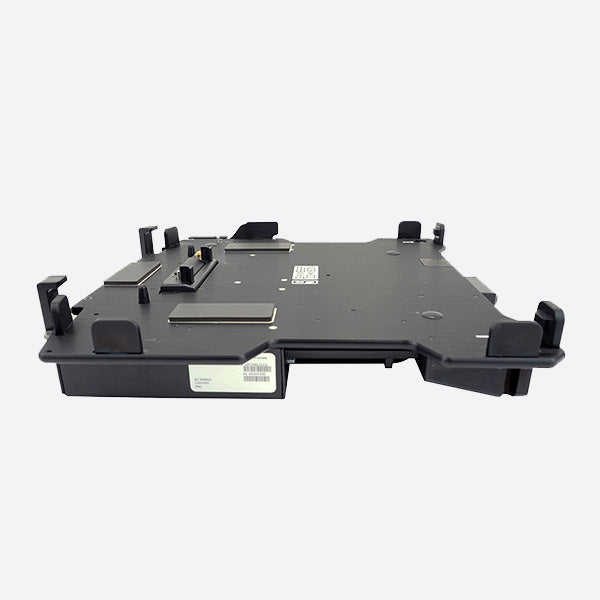

Gamber Johnson TOUGHBOOK 33 TrimLine Dock Dual RF 7300-0596-02

Gamber Johnson Dock 7300-0596-02

Panasonic TOUGHBOOK 33 TrimLine Laptop Docking Station, Lite Port, DUAL RF. The TrimLine vehicle docking station for the Panasonic TOUGHBOOK 33 laptop provides lite port replication and an ergonomic design built with user safety in mind. This docking station provides dual RF antenna pass-through.

Gamber Johnson PMT branded products are manufactured in and shipped from Canada. Effective March 4, 2025 - due to tariffs - all products shipping to the U.S. will be subject to a Gamber Johnson logistics surcharge.  Please contact a ROD sales rep prior to purchase to determine surcharge amount.

7300-0596-02 Features

• Aluminum construction for strength and durability
• Docking station can be docked in both laptop and tablet orientation
• Shutter cover design on connector for protection from external elements
• Floating connector for reliable docking connection
• Integrated genuine Panasonic circut board
• Key lockable for added theft deterrence
• Optional tablet theft deterrence module for additional safety
• Ergonomic design for safety and single hand operation
• VESA 75 mounting pattern
• Minimal footprint for increased usable cabin space
• Dual RF TNC

7300-0596-02 Specifications

Weight

7.75 lbs / 3.51 kg

Height

2.8 in / 7.11 cm

Width

12.7 in / 32.26 cm

Depth

12.3 in / 31.24 cm

Serial
Ethernet (2)
USB 3.0 (2)  900mA
USB 2.0  Front-facing(20, Bottom-facing(2) 500mA
Power Input 16Vdc
External Antenna Switch

Antenna Pass-through:

Dual RF
