Gamber Johnson TOUGHBOOK 40 TrimLine Dock Full Port No RF 7300-0605-00
Gamber Johnson Dock 7300-0605-00

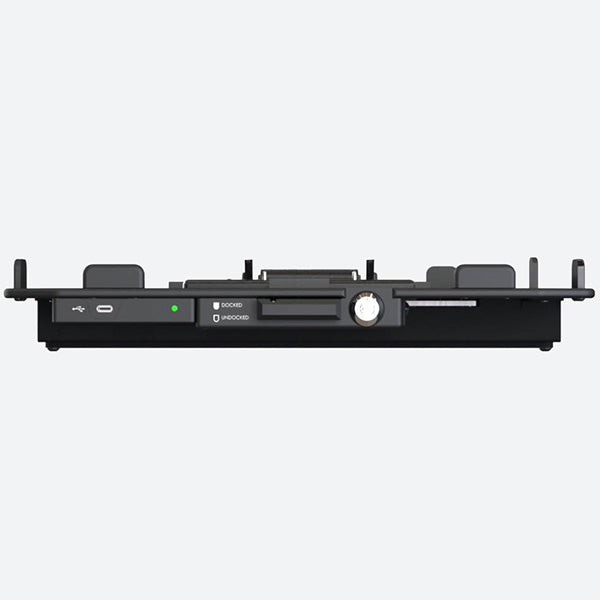

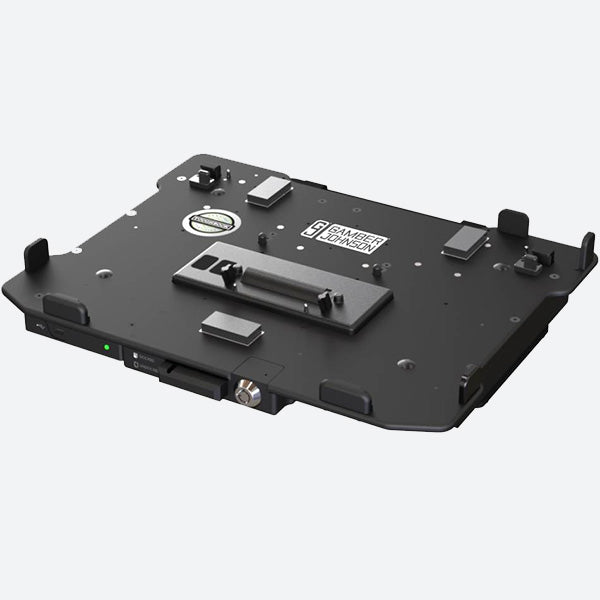

Panasonic TOUGHBOOK 40 TrimLine Docking Station, Full Port, No RF. Docking Station for Panasonic TOUGHBOOK 40 laptop. It does not include PCB or electronics.
Gamber Johnson PMT branded products are manufactured in and shipped from Canada. Effective March 4, 2025 - due to tariffs - all products shipping to the U.S. will be subject to a Gamber Johnson logistics surcharge. Please contact a ROD sales rep prior to purchase to determine surcharge amount.
7300-0605-00 Features
- CNC Aluminum construction for rugged reliability
- Space saving and ergonomic design improves ergonomics and safety
- Captured key lock with auto-latching mechanism ensures user safety, protection and device security
- Auto-retracting connector cover to reduce connector damage
- Integrated genuine Panasonic PCB and connector for trouble free service
- Rear facing ports with integrated cable tie rail
- Universal mounting interface including VESA 75 for optimum compatibility with new and existing infrastructure
- Wedge Tilt 1.875" x 1.25" hole pattern
Kit Includes:
- Panasonic Toughbook 40 TrimLine Docking Station, Full Port, No RF
- Mounting Hardware
- Installation Instructions
7300-0605-00 Specifications
Weight
9.2 lbs / 4.17 kg
Height
2.31 in / 5.87 cm
Width
14.6 in / 37.08 cm
Depth
12.74 in / 32.36 cm
Panasonic Certified Electronics
(2) Ethernet, RJ45
(1) Serial, 9-pin
(1) HDMI, 19 pin
(2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
(1) USB-C 0.5Gbps (500mA) front-facing
(1) USB-A 10Gbps (900mA)
(2) USB-A 0.5Gbps (500mA)
Power input (15V)
*The two USB Type-C ports support DisplayPort Alternate Mode. When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority.
Antenna Pass-through:
No RF
