Gamber Johnson TOUGHBOOK 40 TrimLine Dock w/ Power Adapter Full Port Quad RF 7300-0605-12
Gamber Johnson Dock 7300-0605-12
Panasonic TOUGHBOOK 40 TrimLine Docking Station with Power Adapter, Full Port, Quad RF. Docking station for the Panasonic TOUGHBOOK® 40 laptop comes with ‘Full’ port replication using genuine Panasonic electronics. It includes a key lock for increased security, and its aluminum construction provides rugged durability. This is the ‘full’ port replication, quad RF pass-through version.
Gamber Johnson PMT branded products are manufactured in and shipped from Canada. Effective March 4, 2025 - due to tariffs - all products shipping to the U.S. will be subject to a Gamber Johnson logistics surcharge. Please contact a ROD sales rep prior to purchase to determine surcharge amount.
7300-0605-12 Features
- CNC Aluminum construction for rugged reliability
- Space saving and ergonomic design improves ergonomics and safety
- Captured key lock with auto-latching mechanism ensures user safety, protection and device security
- Auto-retracting connector cover to reduce connector damage
- Integrated genuine Panasonic PCB and connector for trouble free service
- Rear facing ports with integrated cable tie rail
- Universal mounting interface including VESA 75 for optimum compatibility with new and existing infrastructure
- Quad RF SMA
- Wedge Tilt 1.875" x 1.25" hole pattern

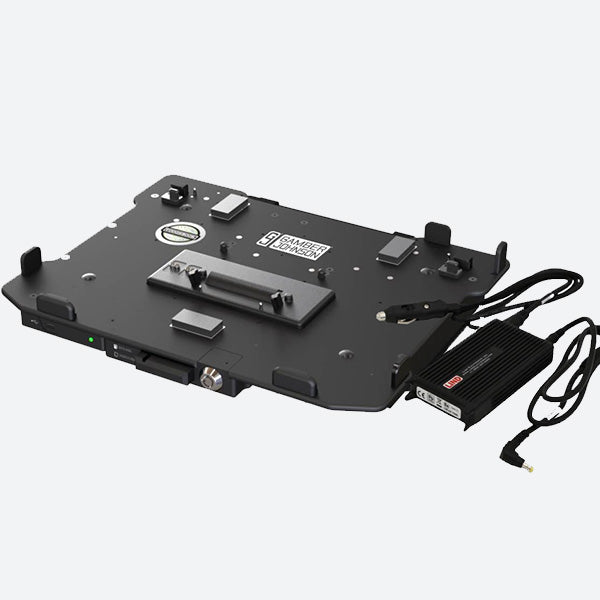

Kit Includes:
- Panasonic Toughbook 40 Trimline Docking Station, Quad RF
- Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic
- Mounting Hardware
- Installation Instructions
7300-0605-12 Specifications
Weight
10.45 lbs / 4.74 kg
Height
2.31 in / 5.87 cm
Width
14.6 in / 37.08 cm
Depth
12.74 in / 32.36 cm

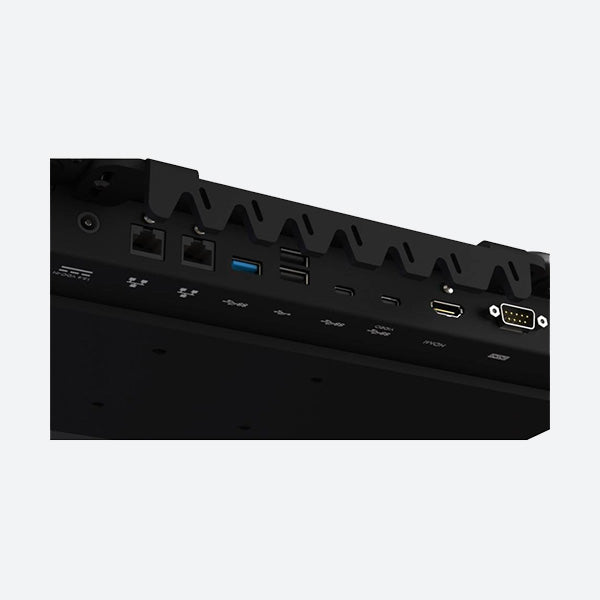

Port Replicators:
Panasonic Certified Electronics
(2) Ethernet, RJ45
(1) Serial, 9-pin
(1) HDMI, 19 pin
(2) USB-C 10Gbps (Max 1.5A@5V) with DisplayPort Alternate Mode*
(1) USB-C 0.5Gbps (500mA) front facing
(1) USB-A 10Gbps (900mA)
(2) USB-A 0.5Gbps (500mA)
Power input (15V)
*The two USB Type-C ports support DisplayPort Alternate Mode. When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority.
Antenna Pass-through:
Quad RF
