Havis Dock For Dell 5430, 7330, 5420, 5424 & 7424 Notebooks With Advanced Port Replication & LIND Power Supply DS-DELL-422

Havis Dock DS-DELL-422

Havis Docking Station For Dell 5430, 7330, 5420, 5424 and 7424 Notebooks With Advanced Port Replication and LIND Power Supply

DS-DELL-422 Features

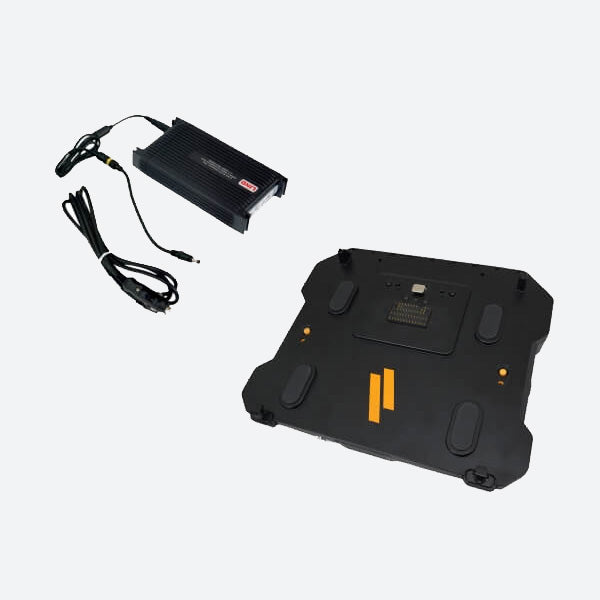

• Includes DS-DELL-421 docking station & LIND LPS-137 power supply
• Supports Dell's 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
• Adjustable & lockable front arms accommodate new and legacy notebooks
• One-handed docking & undocking (patent pending)
• Spring-loaded connector head
• Compact & lightweight
• U-style mounting bracket with seating notch for easy installation
• Rounded corners and edges for safety
• Access to all notebook buttons and ports when docked
• Advanced port replication with integrated cable management system
• Also compatible with 5414, 7214, 5404 & 7204 notebooks
• Keyed lock
• Compatible with screen support (DS-DA-412, sold separately)
• Made in USA

DS-DELL-422 Specifications

Compatible devices:    Dell Rugged Notebooks 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications:    UL Safety (pending); Vibration Testing: MIL-STD 810H 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational (-20 C to 60 C) & storage (-40 C to 85 C), EMC: EN 50498:2010; ESD: ISO 10605:2008
Connectivity includes:    Fully-powered USB 3.0 (3), USB: fully-powered USB 2.0 (1, front facing), Ethernet: RJ45 Jack, Gigabit LAN 10/100/1000 Mb/s. (1), Serial: DB9 (9-Pin) connection (2), Video: VGA (1), HDMI (1), Speaker & Mic: (1 each, front facing), Input Voltage: 19.5V DC
Dimensions:    Height 10.33" (26.23 cm) with arms collapsed or 10.60" (26.91 cm) with arms extended, width 12.40" (31.48 cm), depth 2.73" (6.94 cm)
Product weight (dock only):    3.30 lbs (1.50 kg) without mounting bracket, 4.75 lbs (2.15 kg) with mounting bracket
Gross weight:    7 lbs
