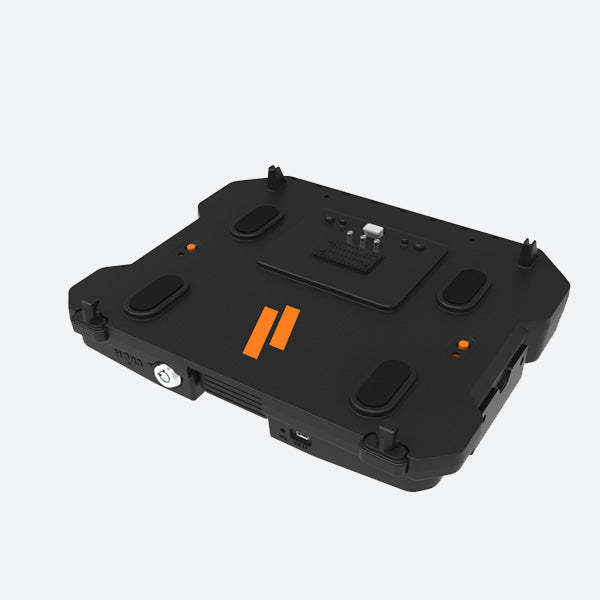

Havis Dock for Dell Pro Rugged 14-in. & 13-in. Notebooks DS-DELL-435

Havis Dock DS-DELL-435

Havis Docking Station for Dell Pro Rugged 14-in and 13-in, 5430, 7330, 5420, 5424, and 7424 Notebooks With Standard Port Replication

DS-DELL-435 Features

• Supports Dell's Dell Pro Rugged 14" and 13", 5430, 7330, 5420, 5424, & 7424 Rugged Notebooks in public safety, utility, and other demanding environments
• Includes standard port replication to connect multiple mission-critical peripherals

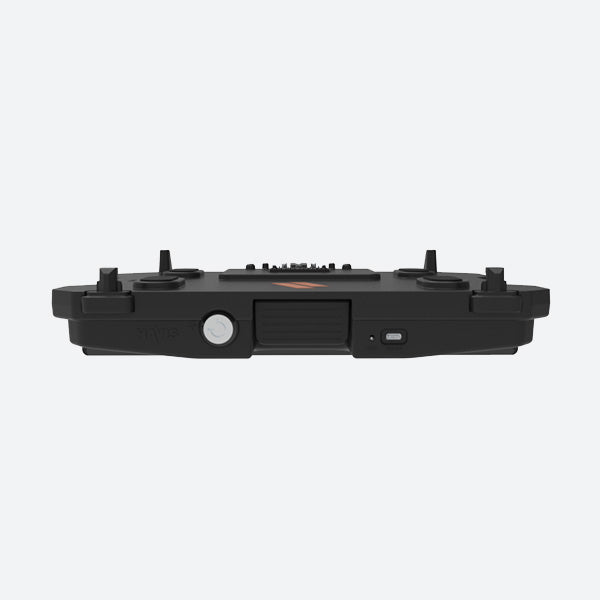

• Front facing USB-C (3.2) port
• LED power indicator
• Updated One-handed docking & undocking with pull latch
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Compact and lightweight with a reduced footprint
• U-style mounting bracket with seating notch for easy installation
• Requires a 120W external power supply (sold separately)
• Provides access to all notebook buttons and ports when docked
• Compatible with screen support (DS-DA-412, sold separately)
• Integrated cable management system
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in USA

DS-DELL-435 Specifications

Compatible devices:    Dell Rugged Notebooks Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, 7204
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 63° C (-4° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Connectivity includes:    (1) RJ45 Ethernet, (3) USB 3.2 Type A, (1) USB-C 3.2 (Front Facing), (1) Serial - 5V powered, (1) 19.5V Switchcraft
Dimensions:    Height 2.73” (69.3mm), Width 12.39” (314.7mm); Depth 10.59” (269mm)
Product Weight:    Dock: 3.30 lbs. (1.50 kg); Mounting Bracket: 1.42 lbs. (0.64 kg)
Gross weight:    5.5 lbs
