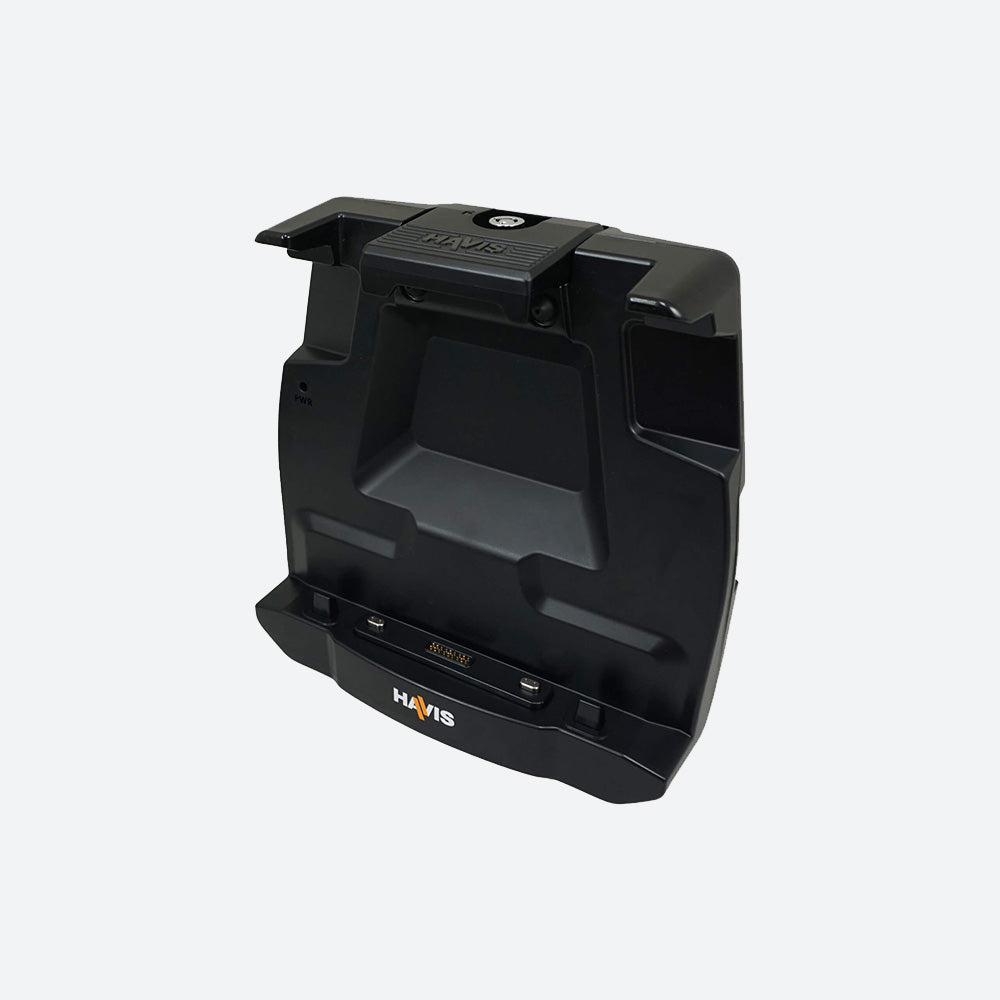

Havis Dock for Dell’s 7230 Tablet with Advanced Port Replication & Quad RF DS-DELL-907-4

Havis Dock DS-DELL-907-4

Havis Docking Station for Dell 7230 Tablet with Advanced Port Replication and Quad Pass-Thru Antenna Connection

DS-DELL-907-4 Features

• Supports Dell's 12” Latitude 7230 Rugged Extreme Tablet in Warehouse & Distribution, Energy & Utilities, Public Safety, and other demanding environments
• Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Side-mounted USB3.0 port
• LED power indicator
• Quad Pass-Through Antenna Connection to support WiFi, GPS and 4G/5G cellular signals
• One-handed docking & undocking
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Requires a 100W external power supply (sold separately)
• Provides access to all buttons, ports, and bar code scanner when tablet is docked
• Compatible with Dell 7230 tablet accessories including hard and soft handles, magnetic mount, rotating hand strap and shoulder strap
• Compact & lightweight
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in USA

DS-DELL-907-4 Specifications

Compatible computer:    Dell 12” Latitude 7230 Rugged Extreme Tablet
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29° C to 63° C (-20° F to 145° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Port Replication:    (1) RJ45 Ethernet, (3) USB3.0 Type A, (1) USB-C, (1) DB9 Serial - 5V powered, (1) HDMI, (1) DC In port,
Antenna:    Quad RF Pass-Thru Connection (SMA)
Dimensions:    Height 10.2” (259mm) latched, 10.7” (272mm) unlatched; Width 10” (254mm); Depth 3.5” (89mm)
Product weight:    2.75 lbs (1.25kg)
Gross weight:    4 lbs
