Havis Dock for Getac K120 with Tri RF and Power Supply DS-GTC-1002-3

Havis Dock DS-GTC-1002-3

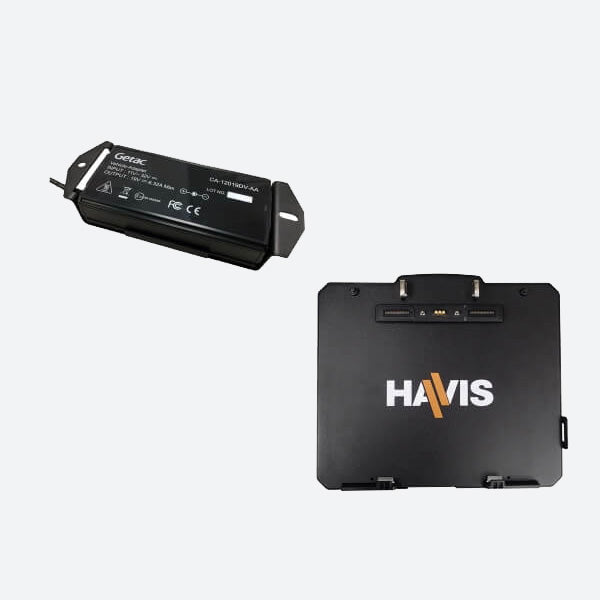

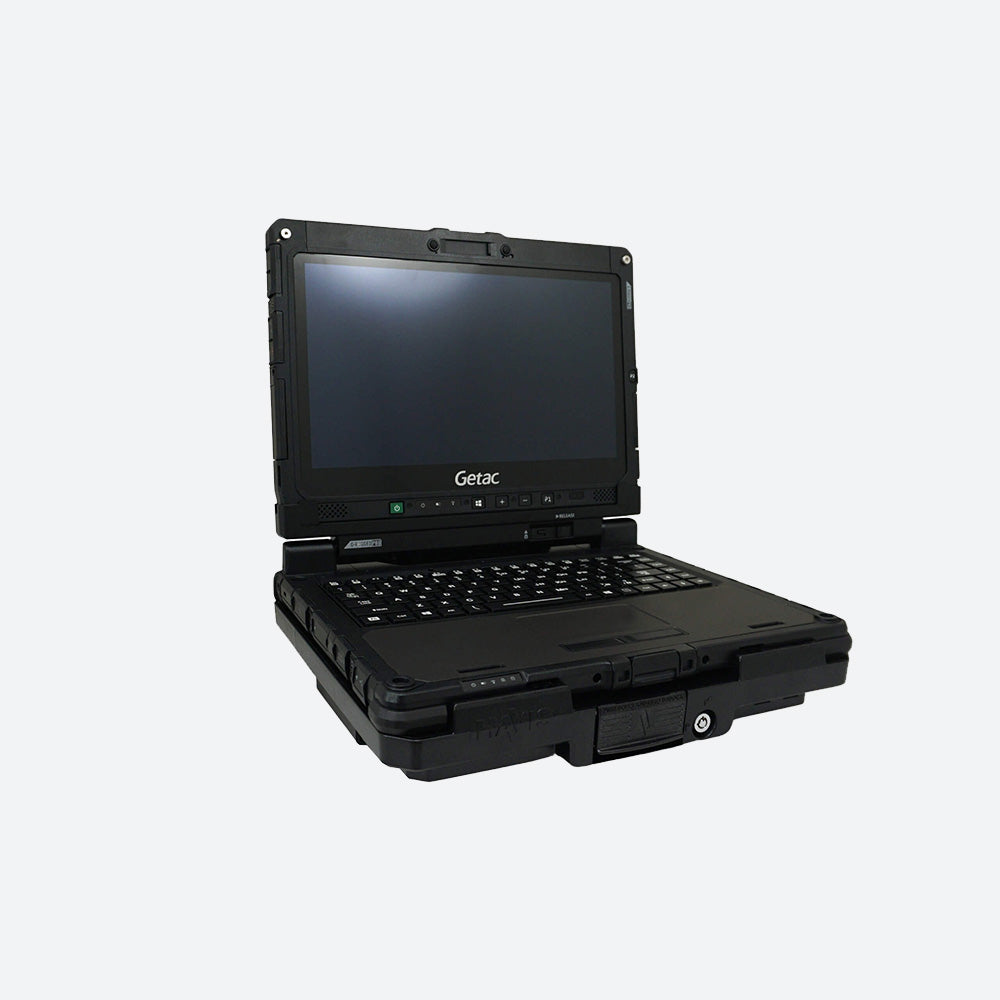

Havis Docking Station For Getac K120 Convertible Laptop with Triple Pass-Thru Antenna Connections & External Power Supply with Lighter Plug

DS-GTC-1002-3 Features

• Docking station with triple pass-through rf antenna connections and LPS-140 (120W Getac vehicle power supply with LPS-208) for Getac K120 convertible laptop
• Includes LPS-140 power supply with LPS-208 panel mount bracket for convenient mounting of the power supply
• Low profile design maximizes available space inside of vehicle
• Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
• Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
• Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
• Lock and key supplied for peace of mind theft deterrence

DS-GTC-1002-3 Specifications

Compatible computer:    Getac K120 convertible laptop
Docking station dimensions (with mounting bracket):    11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm)
Docking station dimensions (without mounting bracket):    11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm)
Certifications:    Vibration Testing: MIL-STD 810G 514.8; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
Connectivity -    USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
Dock input power:    19V DC
Docking station product weight (without mounting bracket):    4.47 lbs (2.03 kg)
Docking station product weight (with mounting bracket):    5.85 lbs (2.65 kg)
Docking station product weight:    7.48 lbs (3.39 kg)
Product weight:    9.5 lbs (4.31 kg)
Gross weight:    9.5 lbs
