Havis Dock for Getac F110 with Tri RF and Lighter Plug Power Supply DS-GTC-222-3

Havis Dock DS-GTC-222-3

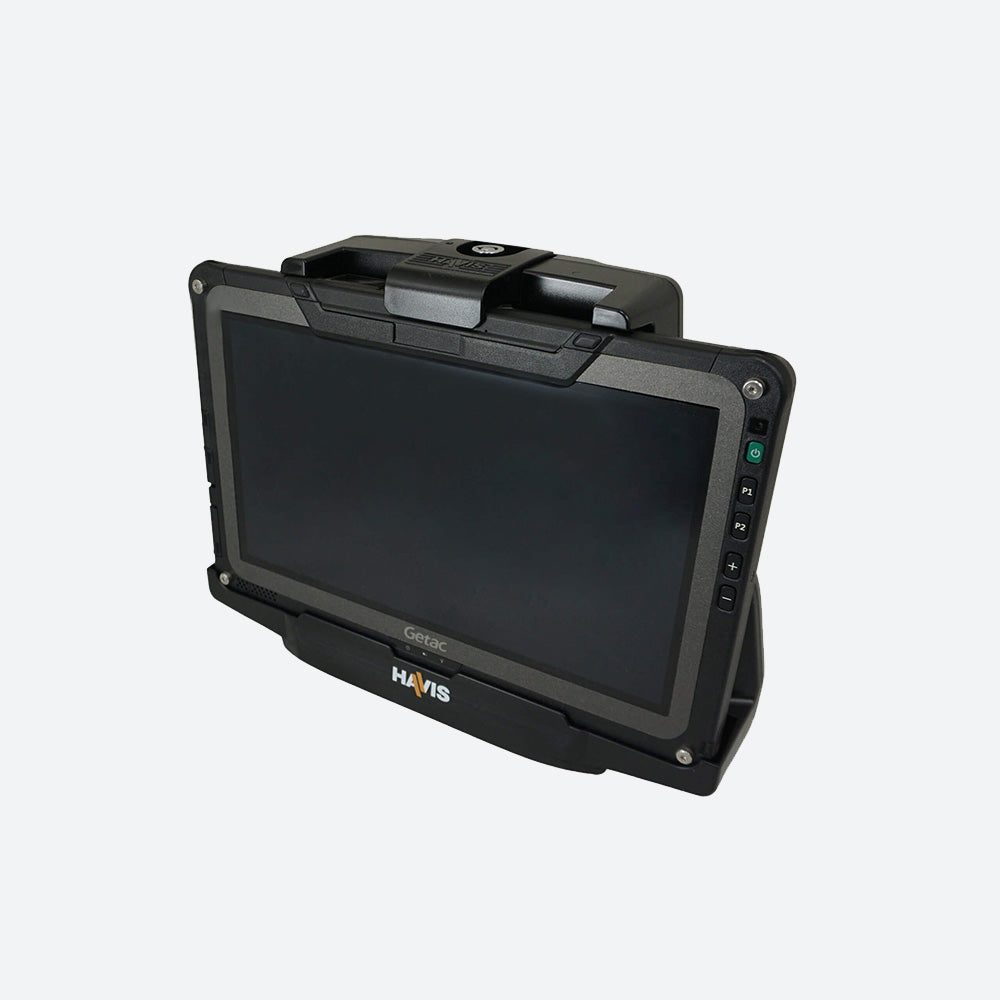

Havis Docking Station For Getac F110 Tablet With Triple Pass-Thru Antenna Connections & External Power Supply with Lighter Plug

DS-GTC-222-3 Features

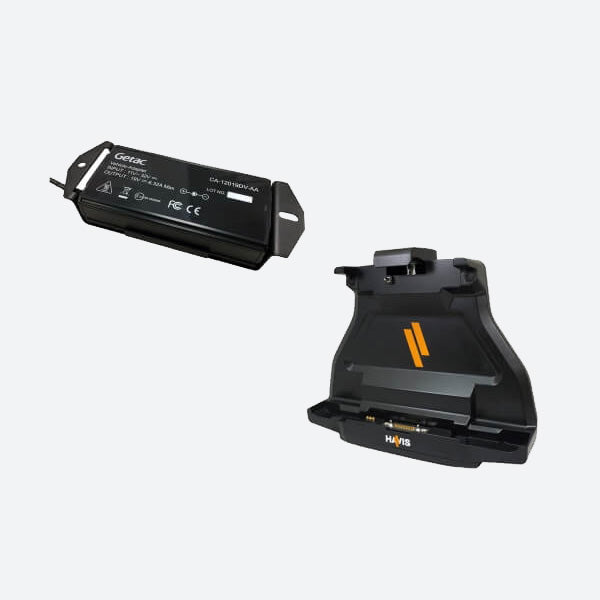

• Bundle includes DS-GTC-221-3 docking station with triple pass-through antenna connection and LPS-140 power supply
• Compatible with new & legacy F110 tablets
• Advanced alignment for easy docking
• One-handed docking & undocking
• Lightweight & compact design
• Rounded edges for comfort & safety
• Getac certified Electronics
• Triple pass-through antenna connections (SMA type)
• Integrated cable management system
• Optional forward-facing USB accessory bracket (DS-DA-337, sold separately)
• Integrated VESA 75 mounting pattern
• Lock and key supplied for peace of mind theft deterrence
• Made in the USA

DS-GTC-222-3 Specifications

Compatible computer:    Getac F110 tablet
Dimensions:    10.28"H (26.11 cm) x 13.02"W (33.07 cm) x 3.18"D (8.07 cm)
Certifications and testing:    Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, CE, RoHS
Connectivity includes:    serial: DB9 (9-Pin) connection (2), USB: fully-powered USB 2.0 (3), fully-powered USB 3.0 (1), Ethernet: RJ45 Ethernet (1), video: VGA (1), HDMI (1), speaker & mic: (1 each), input voltage: 19V DC, antenna connections: triple pass-t
Gross weight:    3.5 lbs
