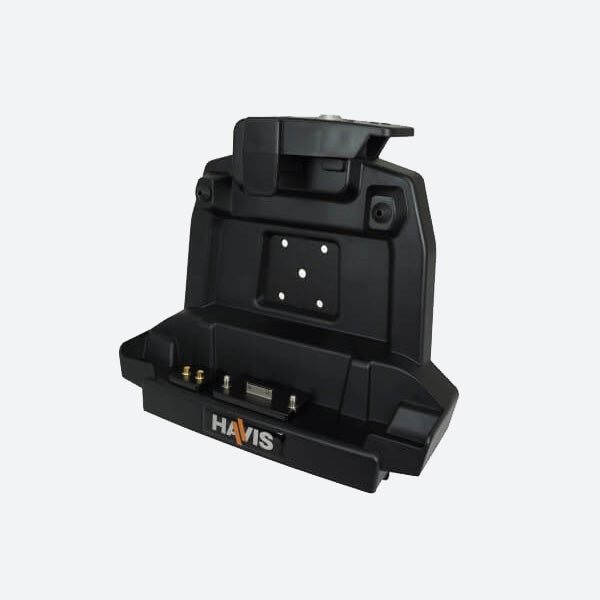

Havis Dock for Getac ZX70 With JAE Connector and Dual RF DS-GTC-711-2

Havis Dock DS-GTC-711-2

Havis Docking Station For Getac ZX70 Tablet With JAE Connector & Dual Pass-Thru Antenna Connections

DS-GTC-711-2 Features

• Supports Getac's ZX70 and Z710 tablets in a variety of demanding environments
• Pair with our approved vehicle power adapters to provide maximum reliability for any mobile worker (LPS-164, sold separately)
• Low profile design maximizes available space inside of vehicle
• Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
• Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
• Designed to fit all VESA 75 hole pattern mounting equipment
• Lock and key supplied for peace of mind theft deterrence

DS-GTC-711-2 Specifications

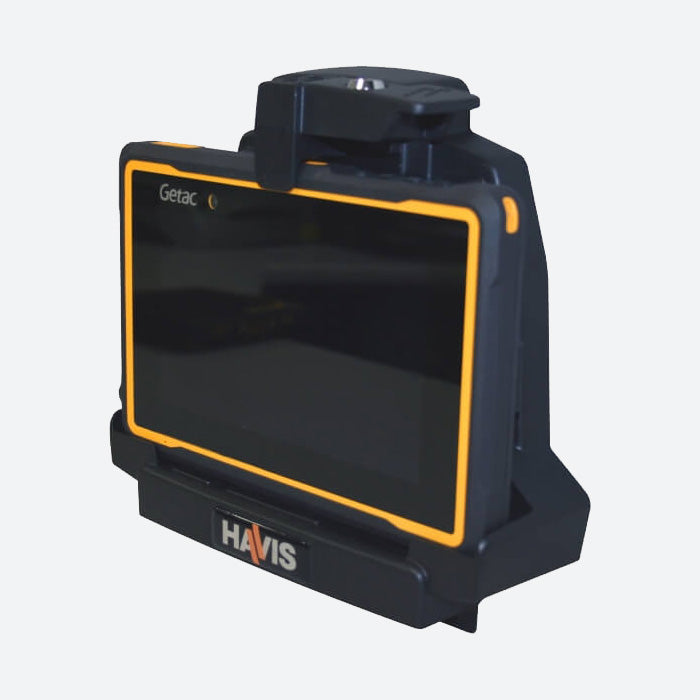

Compatible computer:    Getac Z710 and ZX70 rugged tablets
Docking connector:    JAE
Dimensions:    8.7" (22.1 cm) x 9.2" (23.4 cm) x 2.9" (7.4 cm)
Certifications:    Vibration Testing: MIL-STD 810G 514.8, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage
Connectivity:    fully-powered USB 2.0 (2), Ethernet: RJ45 Ethernet (1), serial: DB9 (9-Pin) connection (1), video: HDMI (1), speaker (1), dock input power: 12V DC, antenna connections: dual pass-through (SMA)
Product weight:    1.5 lbs. (0.68 kg)
Gross weight:    6 lbs
