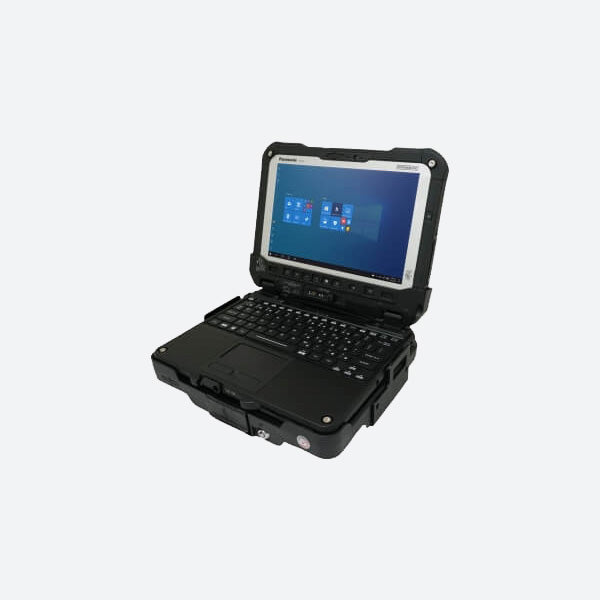

Havis Dock for Panasonic TOUGHBOOK G2 Standard Port Replication Dual RF DS-PAN-1014-2

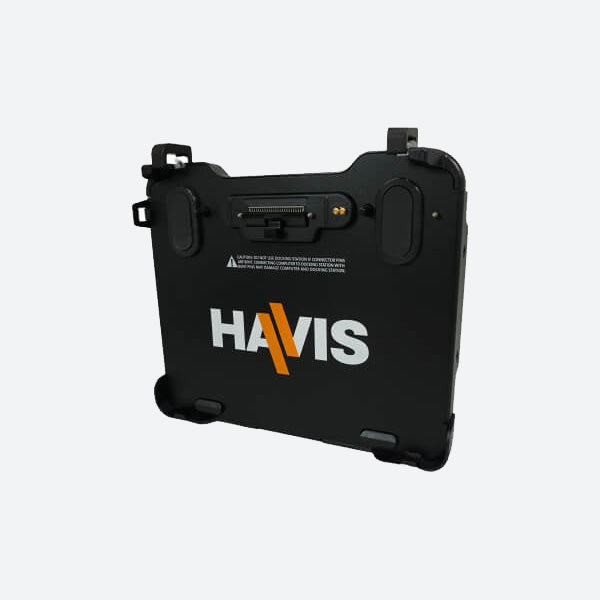

Havis Docking Station DS-PAN-1014-2

Havis Dock For Panasonic TOUGHBOOK G2 2-In-1 With Standard Port Replication & Dual Pass-Through Antenna Connections

DS-PAN-1014-2 Features

• TOUGHBOOK certified dock supports the Panasonic TOUGHBOOK G2 2-in-1 in public safety, military, utilities, and other demanding environments
• Panasonic certified electronics with standard port replication to connect multiple mission-critical peripherals
• Increased connector protection via retractable cover that protects pins when device is absent
• Lightweight & compact design
• Integrated cable management system
• Rounded edges for comfort & safety
• Lock and key supplied for peace of mind theft deterrence
• Supports legacy TOUGHBOOK 20 2-in-1 devices
• 3 Year Limited Standard Warranty, Enhanced Protection Plan Option Available
• Made in the USA

DS-PAN-1014-2 Specifications

Compatible computers:    Panasonic TOUGHBOOK G2 2-in-1 & TOUGHBOOK 20 2-in-1 devices
Dimensions:    2.5" (6.35 cm) x 11.06" (28.09 cm) x 9.6" (24.38 cm)
Certifications:    Panasonic Toughbook Certified, UL Safety Certified, Vibration Testing: MIL-STD 810G 514.8, Crash Test: SAE J1455 30mph crash testing, Cycle Test: latch handle & docking connectors mechanism 30,000 cycles, Environmental Testing: Hot/Cold operational & storage
Connectivity:    USB: fully-powered USB 3.0 (2), Ethernet: RJ45 Ethernet (1), Serial: DB9 (9-Pin) connection (1), Dock Input Power: 16.0 V DC, Antenna connections: Dual pass-through (TNC connectors)
Product weight:    4.30 lbs. (1.95 kg)
Gross weight:    4 lbs
