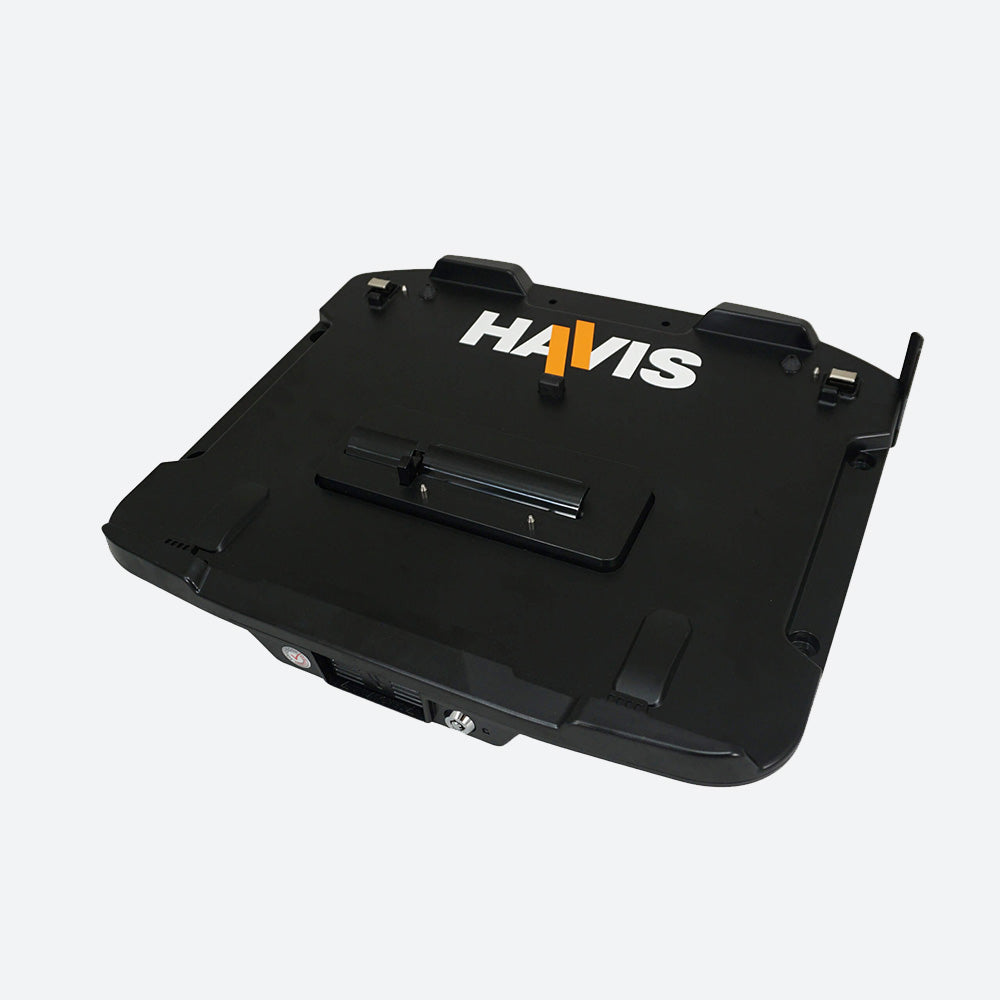

Havis Dock For Panasonic TOUGHBOOK 40 Laptop with Advanced Port Replication DS-PAN-1504

Havis Dock DS-PAN-1504

Havis Docking Station For Panasonic TOUGHBOOK 40 Laptop with Advanced Port Replication

DS-PAN-1504 Features

• Supports the Panasonic TOUGHBOOK 40 laptop in Public Safety, Federal, Work Truck, and other demanding environments
• Panasonic certified electronics with advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Spring-loaded connector head ensures constant contact between docking station and computer
• Retractable connector cover offers additional protection to connector head
• Access to critical laptop buttons and ports when docked
• Though-body mounting bracket design for easy installation and increased theft deterrence
• Finger recesses for easy computer removal
• Lightweight, durable and compact design
• Compatible with screen support (DS-DA-423, sold separately)
• Recommended for use with LPS-103 external power supply
• Also compatible with LPS-112 power supply for standard vehicle applications
• Rounded edges for comfort & safety
• Integrated cable management system
• Keyed lock for theft deterrence
• Made in USA

DS-PAN-1504 Specifications

Compatible computer:    Panasonic TOUGHBOOK 40
Dimensions:    W 14.4" (36.6 cm) x D 12.3" (31.3 cm) x H 2.63" (6.7 cm)
Certifications:    Vibration testing: mil-std 810H 514.8, Panasonic: Toughbook Certified, UL Safety Certified, crash test: sae J1455 30mph crash testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles

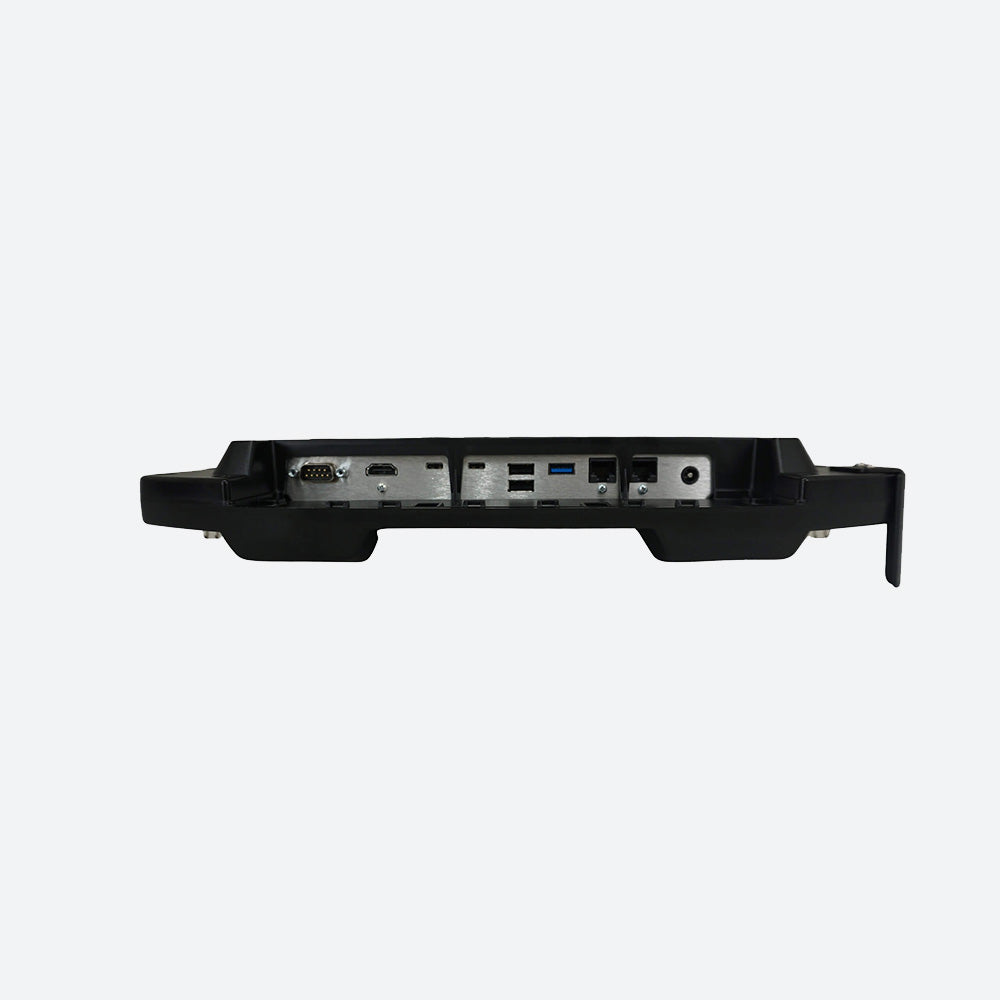

Connectivity:    Serial: DB9 (9-Pin) connection (1), USB: fully-powered USB 2 Type A (2), USB: fully-powered USB 3 Type A (1), USB: fully-powered USB 2 Type C (1, front), USB: fully-powered USB 3 Type C (2), Ethernet: RJ45 Ethernet (2), HDMI (1), input voltage: 15.6V dc
Product Weight:    6.25 lb (2.5 kg)
Gross weight:    8 lbs
