Havis Dock for for Zebra 8-in. & 10-in. ET4X Tablets with Standard Port Replication DS-ZEB-301-AC

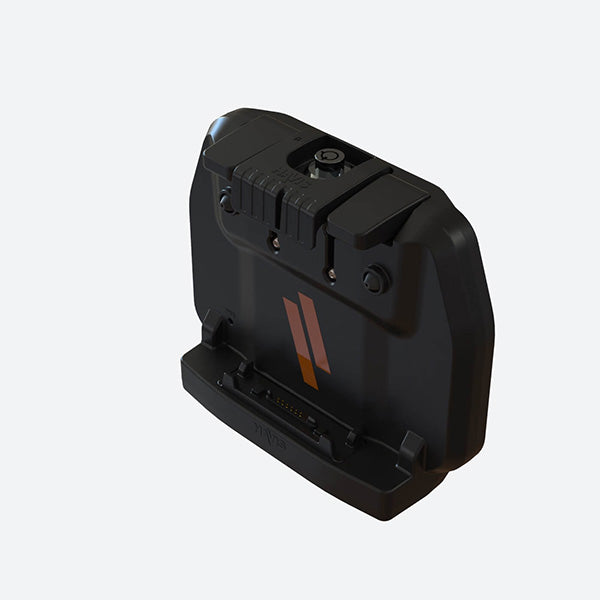

Havis Dock DS-ZEB-301-AC

Havis Docking Station for Zebra 8-in and 10-in ET4X Tablets with Standard Port Replication for External Power Supply

DS-ZEB-301-AC Features

• Supports Zebra's ET4x Series in Retail & Hospitality, Material Handling, and other demanding environments
• Unique height-adjustable design is compatible with both 8" and 10" devices with rugged boots
• Standard port replication includes one USB2.0 port
• LED power indicator
• One-handed docking & undocking
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• Provides access to critical buttons, ports, and bar code scanner when tablet is docked
• Compact & lightweight
• Supports attachable hand and shoulder straps
• Integrated strain relief and cable routing features
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in the USA
• Requires external power supply (not included)

DS-ZEB-301-AC Specifications

Compatible Devices:    Zebra ET40 and ET45 (both 8" and 10" devices with required, rugged boots)
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -20° C to 50° C (-4° F to 122° F); Hot/Cold storage -40° C to 85° C (-40° F to 185° F)
Port Replication:    Standard: (1) USB2.0 port
Dimensions:    8" Configuration Unlatched: 7.7" (196 mm) H 8.6” (219 mm) W 2.9” (74 mm) D 7.2” (183 mm) H Latched
10" Configuration Unlatched: 8.8" (253 mm) H 8.0” (219 mm) W 2.9” (74 mm) D 8.3” (211 mm) H Latched
Product weight:    1.86 lbs (0.85kg)
Gross weight:    2.5 lbs
