Havis Dock for for Zebra ET60 & ET65 Tablets with Standard Port Replication and Tri DS-ZEB-501-3

Havis Dock DS-ZEB-501-3

Havis Docking Station for Zebra ET60 and ET65 Tablets with Standard Port Replication and Triple Antenna Pass-Thru Connection

DS-ZEB-501-3 Features

• Supports Zebra's ET60 & ET65 Tablets in Public Sector, Material Handling, Utility Services, Waste Management and other demanding environments
• Includes standard port replication to connect multiple mission-critical peripherals

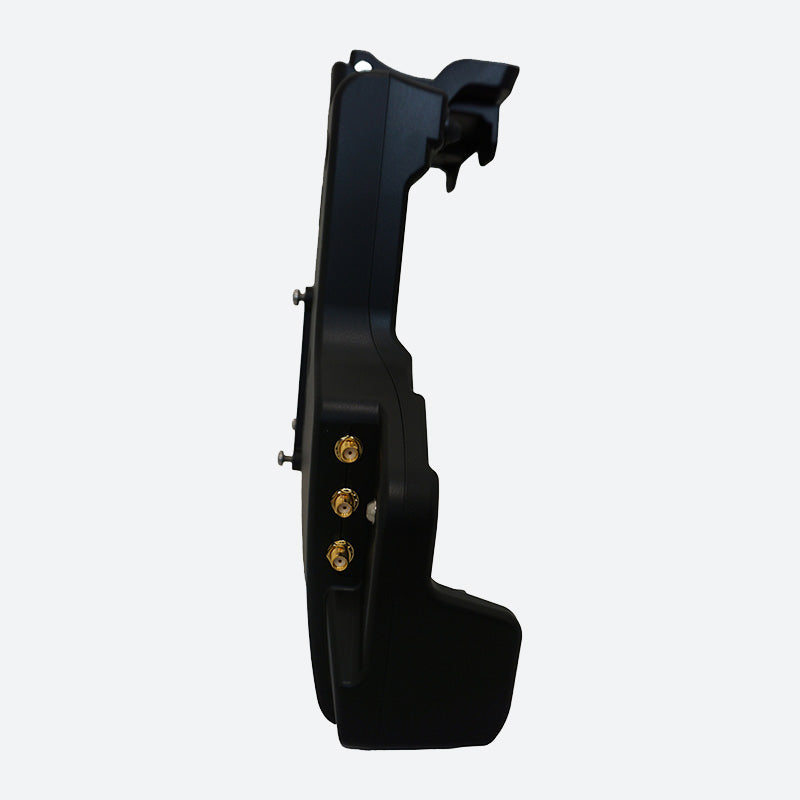

• Equipped with triple pass-through antenna connections
• LED power indicator
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• One-handed docking & undocking
• Requires a Havis-approved external power supply
• Provides access to critical buttons, ports, and bar code scanner when tablet is docked
• Compact & lightweight
• Compatible with the Zebra Extended Battery, Kickstand with Hand Strap, Carry Handle, and CAC Reader
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in USA

DS-ZEB-501-3 Specifications

Compatible Devices:    Zebra ET60 and ET65 Tablets
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -4° C to 50° C (25° F to 122° F); Hot/Cold storage -40° C to 70° C (-40° F to 158° F)
Port Replication:    Standard: (1) USB 2.0 Antenna type: (3) SMA - 2 Configurable, 1 GPS
Approved power supplies:    LPS-189, LPS-190, LPS-191
Dimensions:    9.6” (24.4 cm) H x 111.9” (30.2 cm) W 3.1” (79.1 cm) D
Product weight:    2.2 lbs. (1.0kg)
Gross weight:    2.5 lbs
