Havis Dock for Getac ZX10 Cigarette Lighter Plug Tri RF PKG-DS-GTC-1302-3

Havis Dock PKG-DS-GTC-1302-3

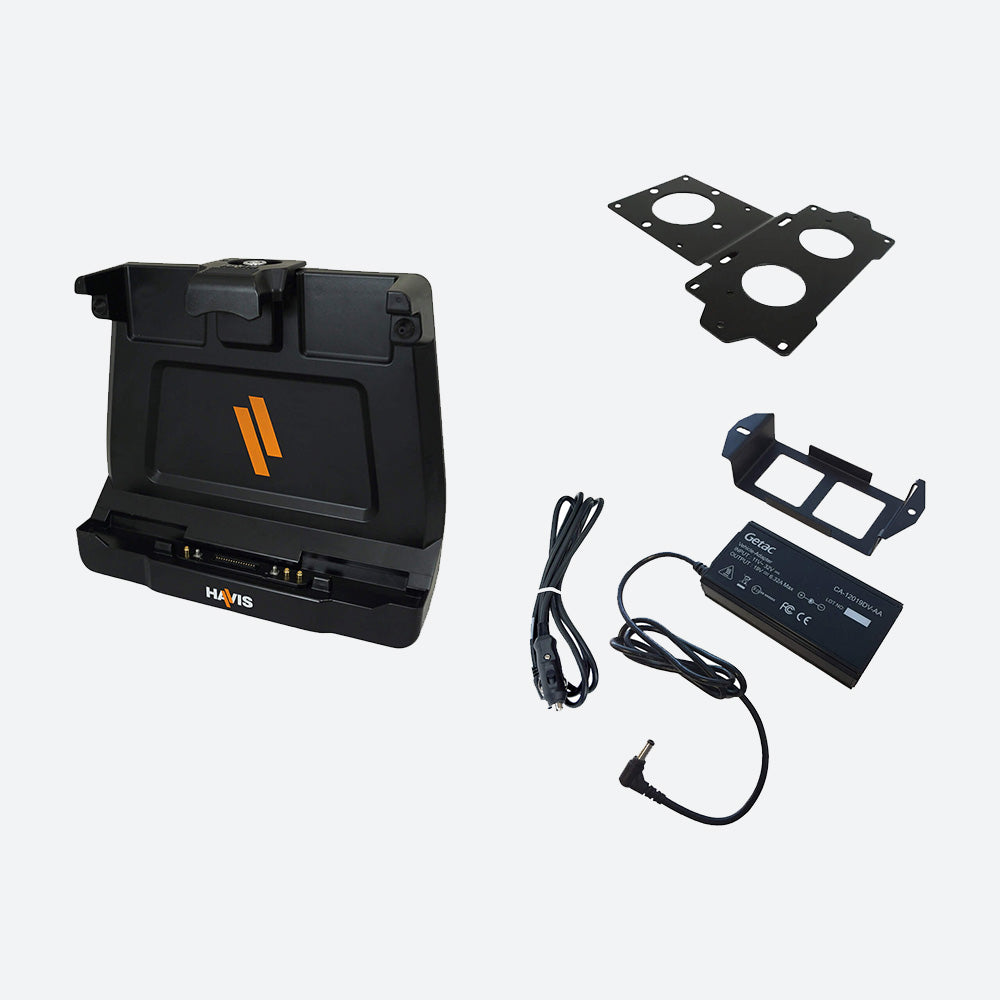

Havis Package - Docking Station for Getac ZX10 Tablet With Triple Pass-Thru Antenna Connections, External Power Supply with Lighter Plug & Power Supply Mounting Bracket

PKG-DS-GTC-1302-3 Features

• Supports Getac's ZX10 tablet in demanding environments like material handling, utility services, industrial manufacturing and more
• Includes LPS-140 power supply with LPS-208 panel mount bracket and LPS-211 accessory bracket for convenient mounting of the power supply
• Accommodates Getac accessories like rotating hand strap, hard handle, RFID reader, smart card reader, and extended battery
• Preserves access to tablet's features like control buttons, ports, front-facing camera, and stylus while tablet is docked
• One-handed docking & undocking
• Compatible with LPS-125 Isolated power supply 95 watt used for 12-32 VDC input forklifts
• Lightweight & compact design
• Rounded edges for comfort & safety
• Getac certfied port replication
• Triple pass-through antenna connections (SMA type)
• Integrated cable management system
• Integrated VESA 75 mounting pattern
• Keyed lock
• Made in the USA

PKG-DS-GTC-1302-3 Specifications

Docking station dimensions:    9.7" (24.5 cm) x 11.1" (28.3 cm) x 3.4" (8.6 cm)
Certifications:    Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, shock testing: MIL-STD 810H 516.8, cycle test: latch handle & docking connectors mechanism 30,000 cycles, hot/cold storage testing, humidity, testing, CE, Ro
Connectivity includes:    USB: fully-powered USB 2.0 (2), speaker (1), mic (1), input voltage: 19V DC, antenna: triple high gain pass-thru connectors (SMA connectors)
Docking station weight:    2.9 lbs (1.32 kg)
Gross weight:    5 lbs
