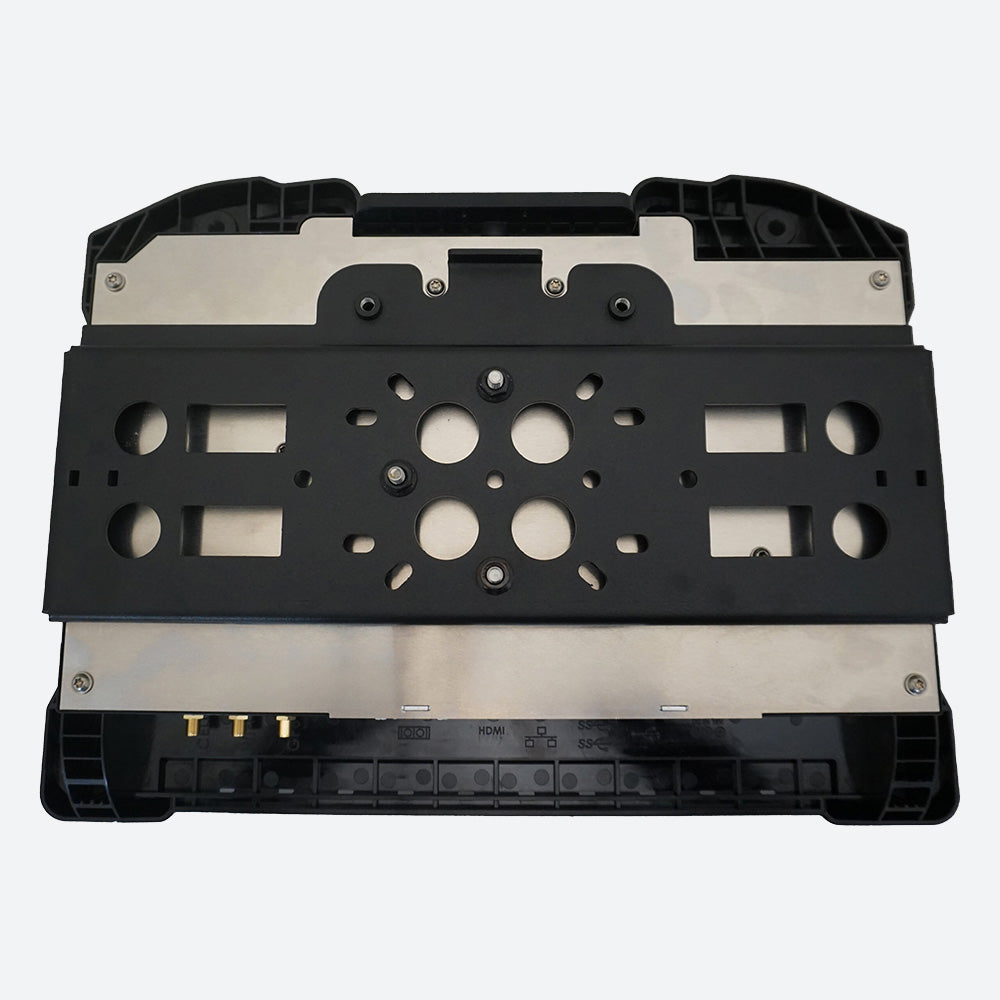

Havis Dock for Getac S510 with Tri RF PKG-DS-GTC-1404-3

Havis Dock PKG-DS-GTC-1404-3

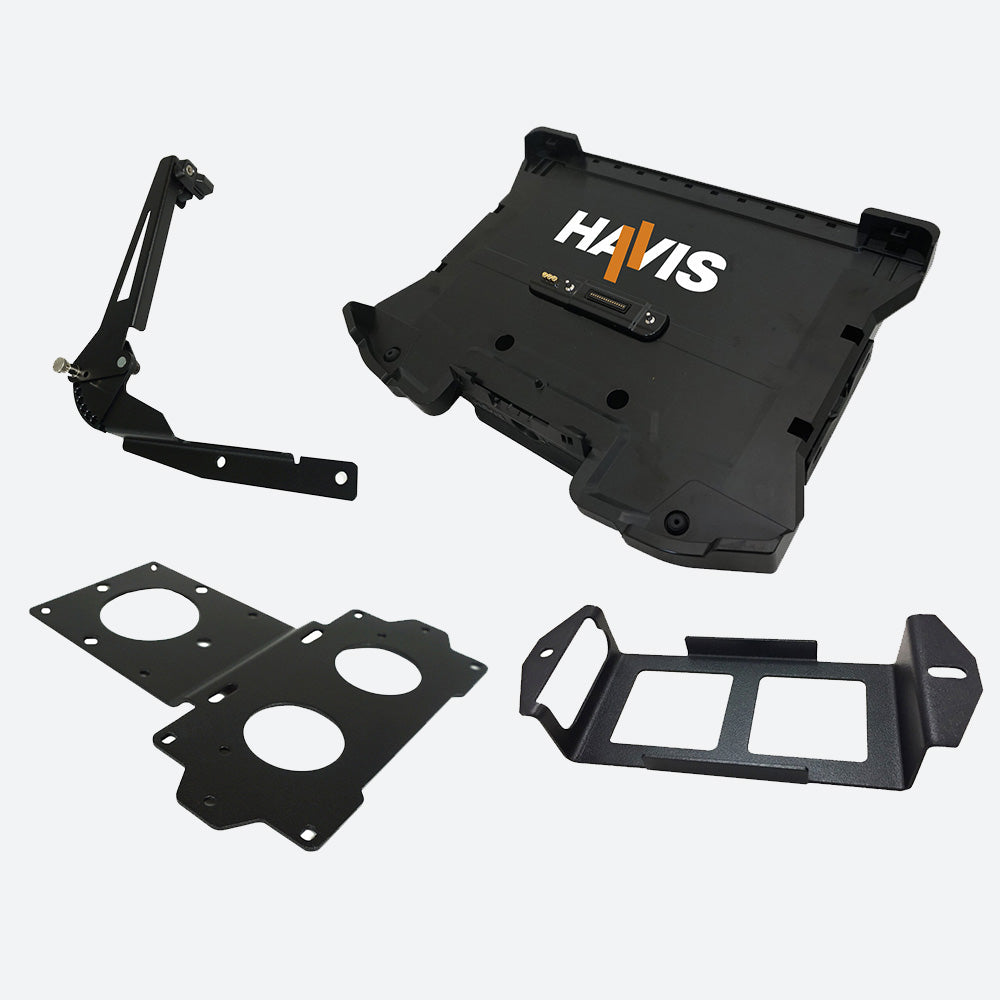

Havis Package - Docking Station for Getac S510 Laptop with Triple Pass-Through Antenna Connection, Power Supply Mounting Brackets & Screen Support

PKG-DS-GTC-1404-3 Features

• Supports Getac's S510 Laptop in Public Sector, Utility Services, and other demanding environments
• Advanced port replication includes video capability as well as standard options to support mission-critical peripherals
• Equipped with triple pass-through antenna connections
• Powered by Getac 120W Vehicle Adapter (LPS-140, sold separately)
• Includes DS-DA-418 Screen Support
• Also includes LPS-208 & LPS-211 Accessory Brackets
• Reinforced mounting bracket
• Spring-loaded, floating docking connector head ensures connectivity even through heavy vibration
• One-handed docking & undocking
• Durable, compact & lightweight
• Integrated cable management system
• Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
• Rounded edges and corners for comfort and safety
• Keyed lock for added security
• Made in USA

PKG-DS-GTC-1404-3 Specifications

Compatible computer(s):    Getac S510 Laptop
Certifications:    Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30mph Cycle Testing: Latch handle and docking connectors 30K cycles Environmental Testing: Hot/Cold operational -29°C to 63°C (-20°F to 145°F); Hot/Cold storage -40°C to 85°C (-40°F to 185°F)
Port Replication:    Advanced: (1) HDMI (2) USB 2.0 (Front Facing) (2) USB 3.0 (1) USB-C (1) RJ45 Ethernet (1) Powered Serial Port (5V) Antenna type: (3) SMA
Approved Power Supplies:    LPS-140
Dimensions:    11.41” (28.98 cm) H x 15.04” (38.20 cm) W x 2.75” (6.99 cm) D
Product Weight:    5.7 lbs. (2.59 kg)
Gross weight:    7.25 lbs
